Installation

PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION

1. INSTALL PARKING BRAKE NO.3 CABLE ASSEMBLY

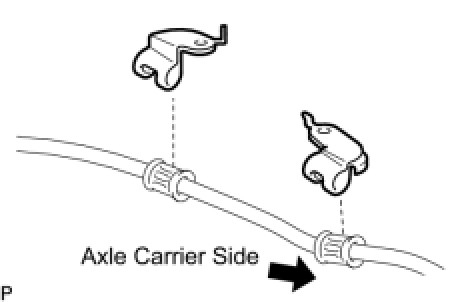

(a) Install the 2 cable support brackets to the parking brake No.3 cable assembly.





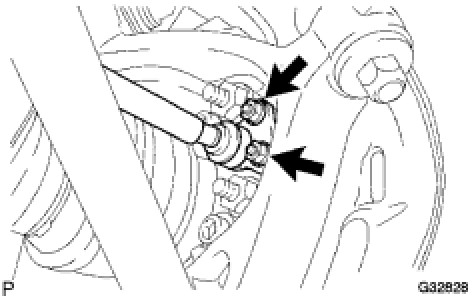

(b) Install the parking brake No.3 cable assembly to the parking brake plate with the 2 nuts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)





(c) Connect the parking brake No.3 cable assembly to the parking brake equalizer.

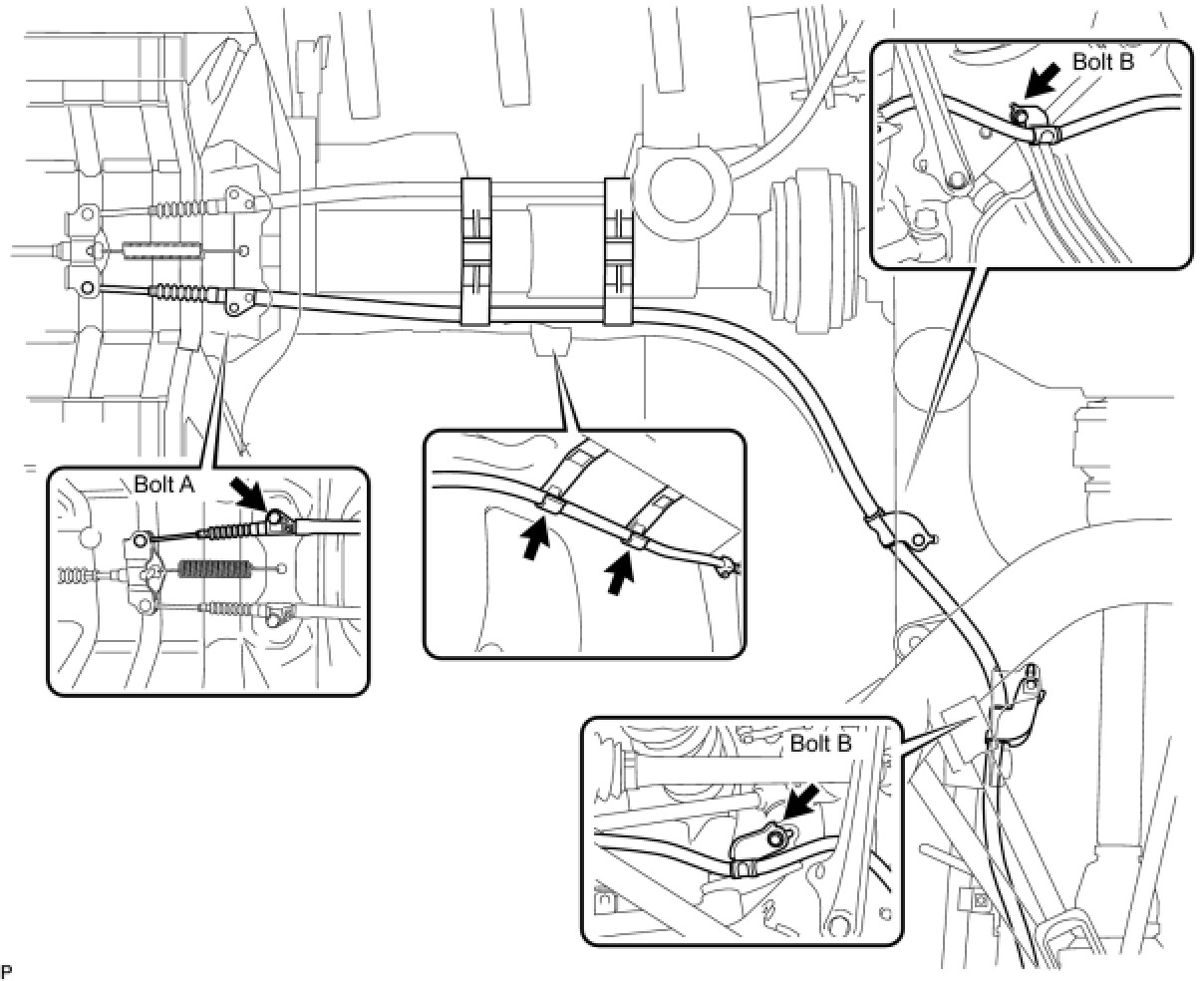

(d) Install the parking brake No.3 cable assembly to the body with the 3 bolts and 2 clamps.

Bolt A - Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)

Bolt B - Torque : 19 Nm (194 kgf-cm, 14 ft-lbf)





2. APPLY HIGH TEMPERATURE GREASE Reassembly

3. INSTALL PARKING BRAKE SHOE LEVER Reassembly

4. INSTALL PARKING BRAKE NO.2 SHOE ASSEMBLY Reassembly

5. INSTALL PARKING BRAKE NO.1 SHOE ASSEMBLY Reassembly

6. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET Reassembly

7. INSTALL PARKING BRAKE SHOE RETURN NO.1 SPRING Reassembly

8. INSTALL PARKING BRAKE SHOE RETURN NO.2 SPRING Reassembly

9. CHECK PARKING BRAKE INSTALLATION Reassembly

10. INSTALL REAR DISC Reassembly

11. ADJUST PARKING BRAKE SHOE CLEARANCE Adjustments

12. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Reassembly

13. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)

14. INSTALL DIFFERENTIAL SUPPORT NO.2 PROTECTOR Installation

15. INSTALL REAR PROPELLER SHAFT ASSEMBLY (for 2GR-FSE) Installation

16. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE (for 2GR-FSE) Installation

17. INSTALL FRONT FLOOR HEAT NO.1 INSULATOR (for 2GR-FSE) Installation

18. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) Installation

19. INSTALL HEATED OXYGEN SENSOR (for 2GR-FSE) Installation

20. INSTALL FRONT FLOOR BRACE CENTER (for 2GR-FSE) Installation

21. INSTALL REAR PROPELLER SHAFT ASSEMBLY (for 1UR-FSE) Installation

22. FULLY TIGHTEN CENTER SUPPORT NO. 1 BEARING ASSEMBLY (for 1UR-FSE) Installation

23. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE (for 1UR-FSE) Installation

24. INSTALL FRONT FLOOR HEAT NO. 1 INSULATOR (for 1UR-FSE) Installation

25. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 1UR-FSE) Installation

26. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 1UR-FSE) Installation

27. INSTALL FRONT CENTER FLOOR BRACE (for 1UR-FSE) Installation

28. INSTALL FRONT FLOOR COVER CENTER RH (for 1UR-FSE)

29. INSTALL FRONT FLOOR COVER CENTER LH (for 1UR-FSE)

30. INSTALL CONSOLE BOX (for 4WD) Installation

31. INSTALL CONSOLE BOX REGISTER ASSEMBLY (for 4WD) Installation

32. INSTALL CONSOLE BOX PLATE (for 4WD) Installation

33. INSTALL INSTRUMENT PANEL FINISH LH PANEL END Installation

34. INSTALL INSTRUMENT PANEL FINISH RH PANEL END Installation

35. INSTALL FRONT ASH RECEPTACLE ASSEMBLY Installation

36. INSTALL CONSOLE UPPER PANEL GARNISH FRONT Installation

37. INSTALL FRONT SEAT ASSEMBLY

HINT
Refer to the instructions for Installation of the front seat assembly Installation.

38. CONNECT BATTERY NEGATIVE TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

39. INSPECT PARKING BRAKE PEDAL TRAVEL Adjustments

40. ADJUST PARKING BRAKE PEDAL TRAVEL Adjustments

41. INSPECT SRS WARNING LIGHT

Diagnosis System

42. INSPECT FOR EXHAUST GAS LEAK
