Front Seat Cushion Heater

SEAT: FRONT SEAT CUSHION HEATER: INSPECTION

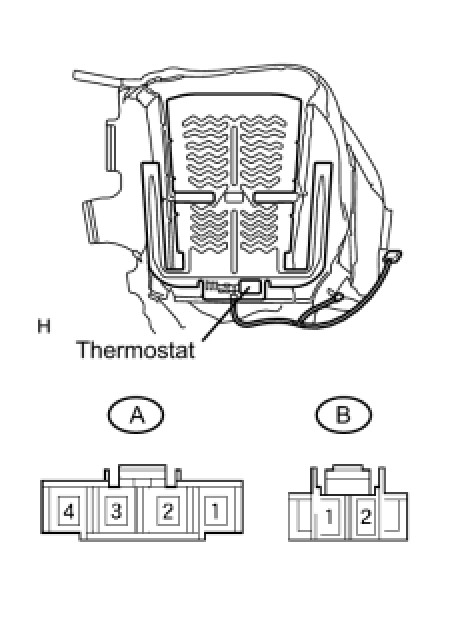

1. INSPECT FRONT SEAT CUSHION HEATER LH





(a) Heat the thermostat with a heat light.

(b) Measure the resistance of the heater.

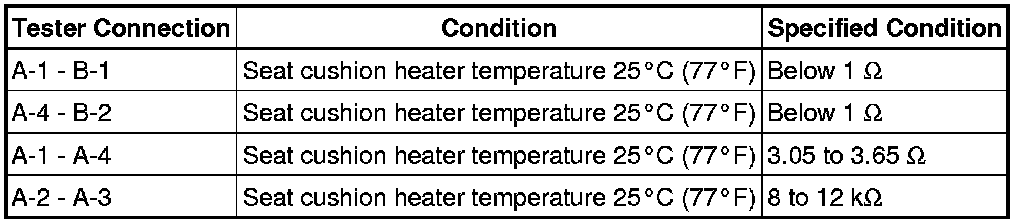

Standard resistance:





If the result is not as specified, the heater control may have a malfunction.

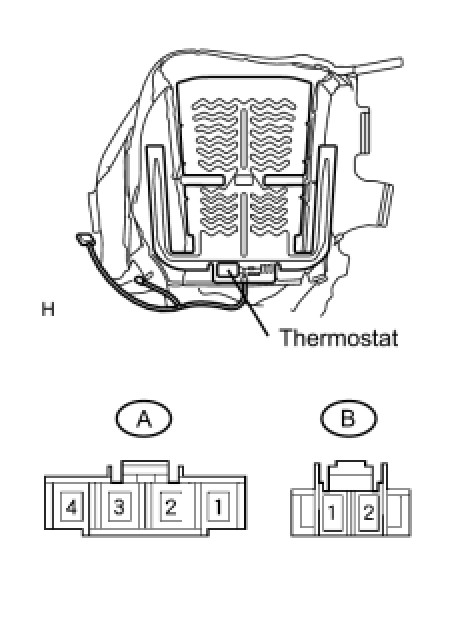

2. INSPECT FRONT SEAT CUSHION HEATER RH





(a) Heat the thermostat with a heat light.

(b) Measure the resistance of the heater.

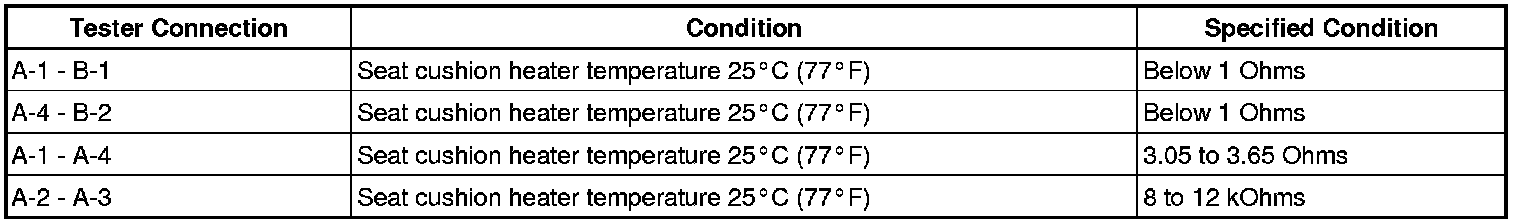

Standard resistance:





If the result is not as specified, the heater control may have a malfunction.
