Installation

EXTERIOR: NAME PLATE: INSTALLATION

HINT
When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

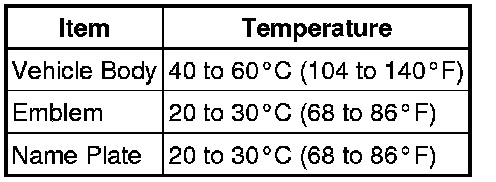

Heating temperature:





NOTICE:
Do not heat the vehicle body, emblem and name plate excessively.

1. INSTALL LUGGAGE COMPARTMENT DOOR EMBLEM

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) If reusing the emblem:

Clean the emblem.

(1) Using a heat light, heat the emblem.

(2) Remove the double-sided tape from the emblem.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the emblem.

(c) Install the emblem.

(1) Using a heat light, heat the vehicle body and emblem.

(2) Remove the release paper from the face of the emblem.

HINT
After removing the release paper, keep the exposed adhesive free from foreign matter.

(3) Install the emblem.

2. INSTALL LUGGAGE COMPARTMENT NO. 1 DOOR NAME PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Cut the transfer sheet of a new luggage compartment No. 1 door name plate at the cutting lines.

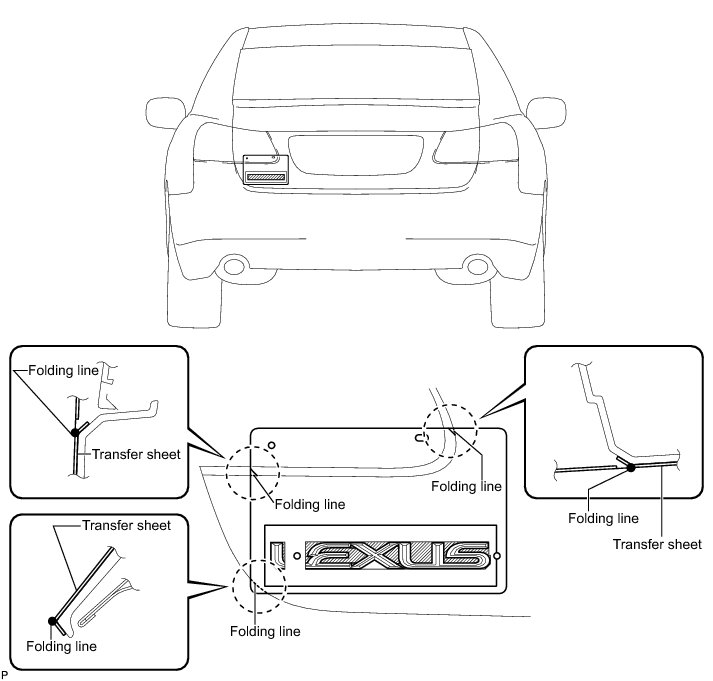

(c) Fold the transfer sheet at the folding lines as shown in the illustration and use the transfer sheet to temporarily position the luggage compartment No. 1 door name plate on the vehicle body.





(d) Using a heat light, heat the luggage compartment No. 1 door name plate and the vehicle body surface.

NOTICE:
Take care to avoid being burned by the heat light or heated portion of the vehicle body.

(e) Remove the release paper from the double-sided tape without touching the exposed adhesive.

(f) Align the luggage compartment No. 1 door name plate using the cuts and folds in the transfer sheet and install it to the vehicle body.

NOTICE:
Apply sufficient pressure to attach the luggage compartment No. 1 door name plate.

(g) Remove the transfer sheet as shown in the illustration.





3. INSTALL LUGGAGE COMPARTMENT NO. 3 DOOR PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) If reusing the door plate:

Clean the door plate.

(1) Using a heat light, heat the door plate.

(2) Remove the double-sided tape from the door plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the door plate.

(c) Install the door plate.

(1) Using a heat light, heat the vehicle body and door plate.

(2) Remove the release paper from the face of the door plate.

HINT
After removing the release paper, keep the exposed adhesive free from foreign matter.

(3) Install the door plate.
