ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Cooling System
>>
System Specifications
>>
Torque Specifications
Torque Specifications

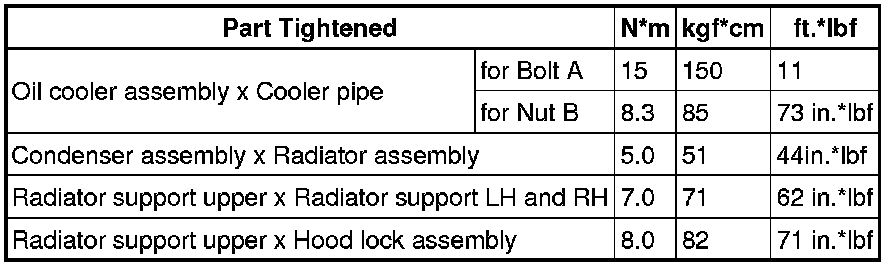

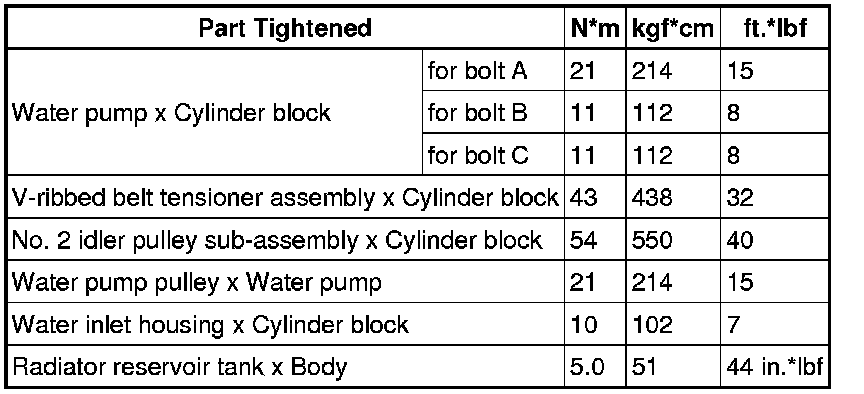

SERVICE SPECIFICATIONS: 2GR-FE COOLING: TORQUE SPECIFICATIONS
COOLANT
WATER PUMP
THERMOSTAT
RADIATOR
