Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING SELECT SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

3. REMOVE TIRE PRESSURE WARNING SELECT SWITCH

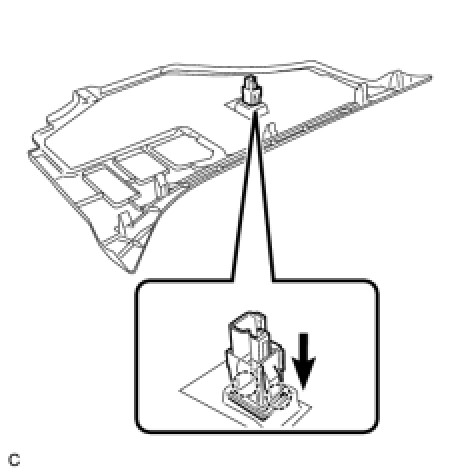

(a) Disengage the 2 claws and remove the tire pressure warning select switch from the No. 2 instrument panel under cover sub-assembly.
