Lexus
>>
2011
>>
ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Description and Operation
>>
Fuel System
Fuel System

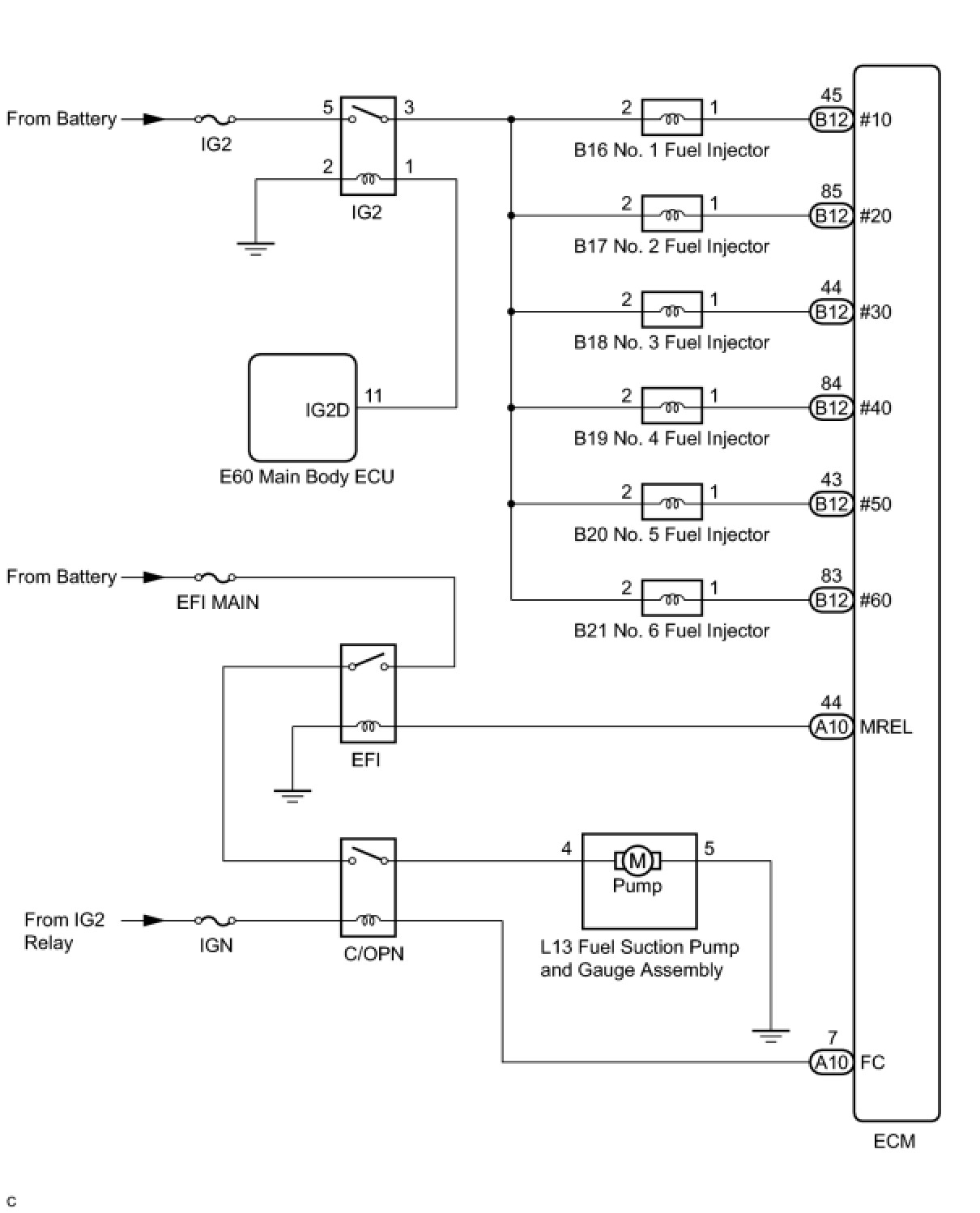

2GR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
