Position of Parts In Instrument Panel

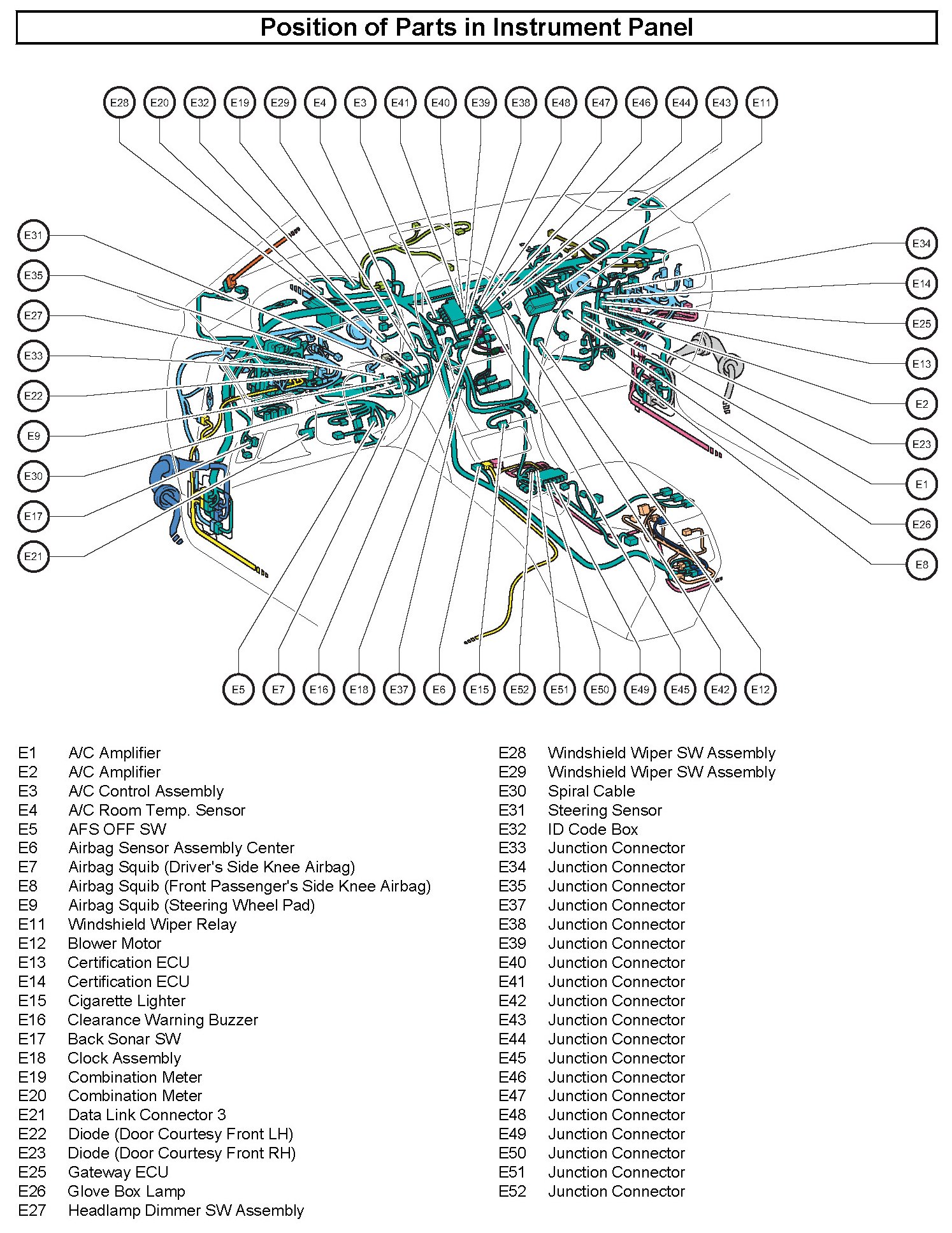

Position Of Parts In Instrument Panel:

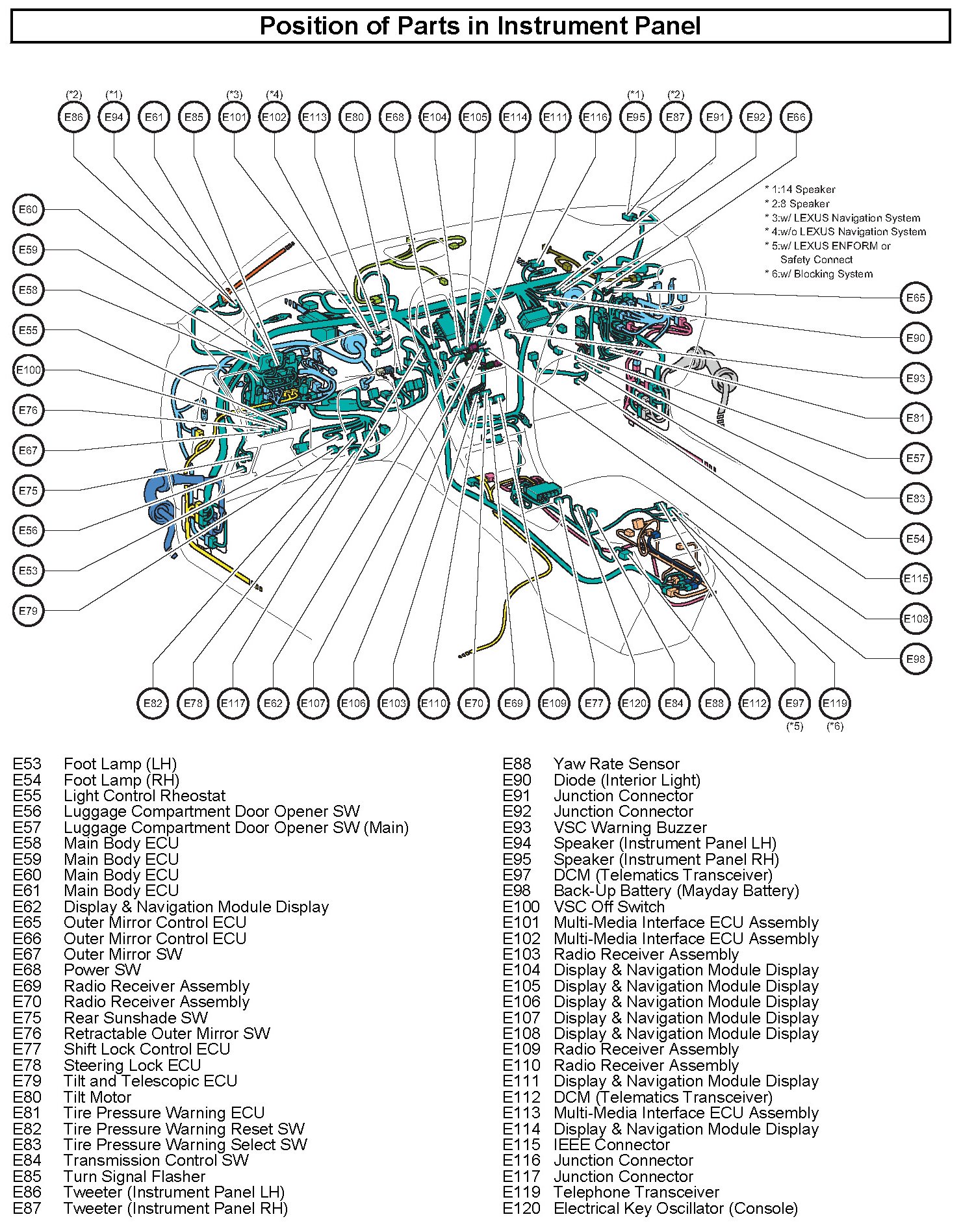

Position Of Parts In Instrument Panel:

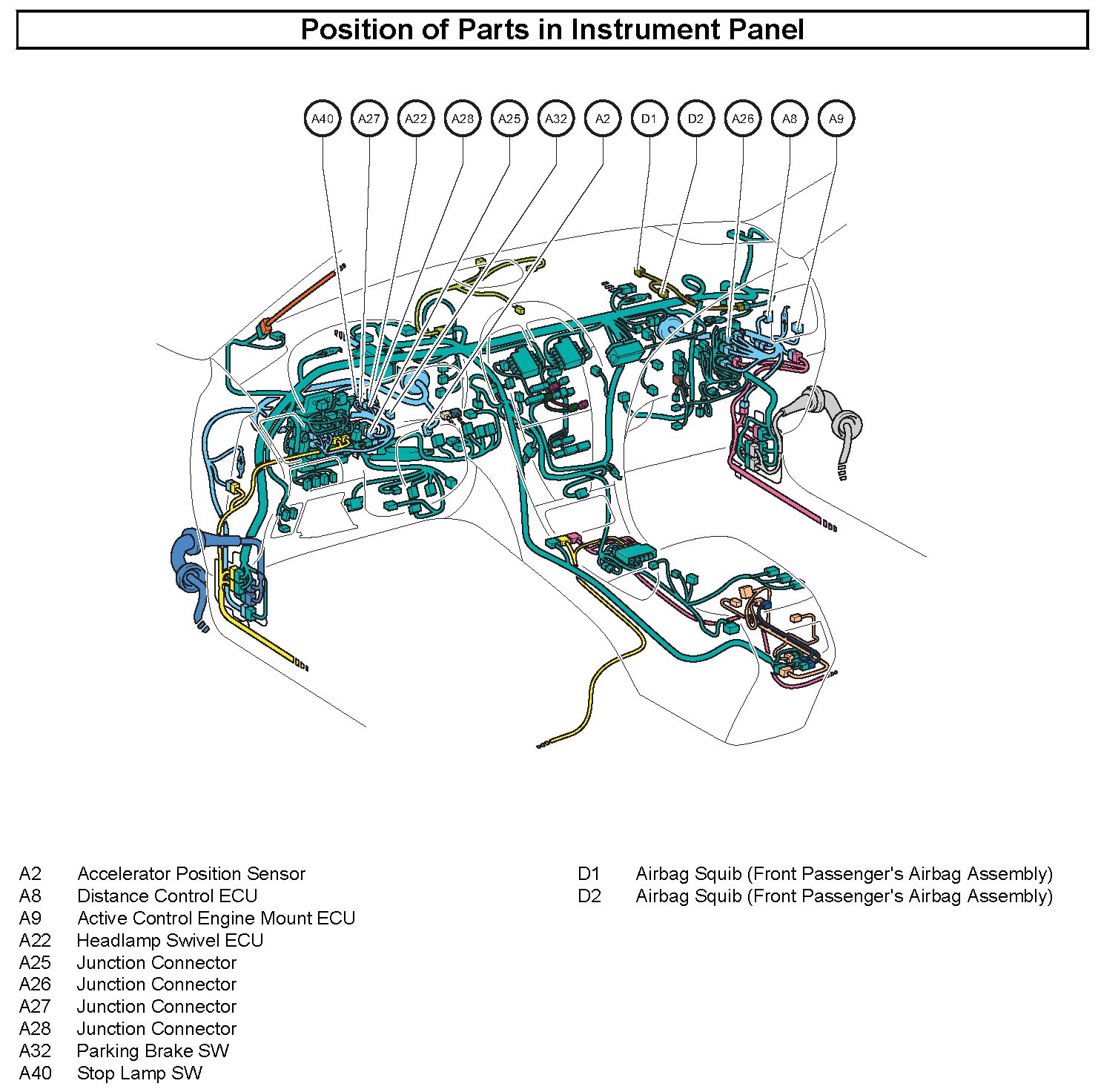

Position Of Parts In Instrument Panel:





Position Of Parts In Instrument Panel:
