Installation

BRAKE: REAR BRAKE FLEXIBLE HOSE: INSTALLATION

1. INSTALL REAR BRAKE FLEXIBLE HOSE

(a) Install a new gasket.

(b) Connect the rear brake flexible hose with the union bolt.





Torque : 33 Nm (337 kgf-cm, 24 ft-lbf)

(c) Install the rear brake flexible hose with a new clip.

NOTICE:
* When installing the rear brake flexible hose, face the identification mark toward the exterior of the vehicle and minimize twisting of the hose.
* Install the clip as far as it will go.

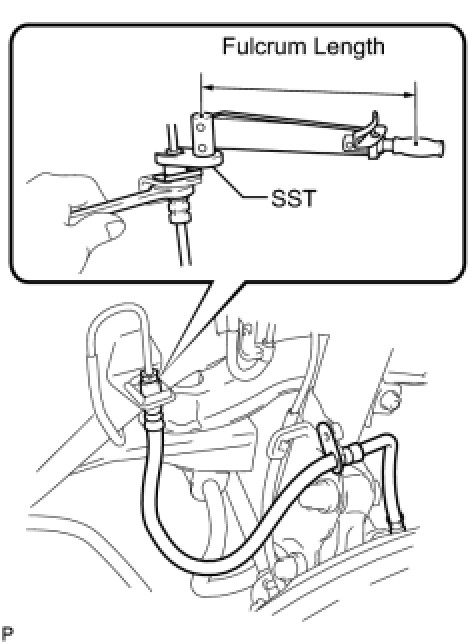

(d) Using SST, connect the brake line to the rear brake flexible hose while holding the flexible hose with a wrench.





SST : 09023-00101

Without SST - Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

With SST - Torque : 14 Nm (143 kgf-cm, 10 ft-lbf)

NOTICE:
* Do not bend or damage the brake tube.
* Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.
* Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
* This torque value is effective when SST is parallel to a torque wrench.

(e) Install the rear flexible hose to the shock absorber with the bolt.

Torque : 19 Nm (194 kgf-cm, 14 ft-lbf)





2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair

3. BLEED BRAKE LINE Service and Repair

4. BLEED BRAKE ACTUATOR ASSEMBLY Service and Repair

5. INSPECT BRAKE FLUID LEVEL IN RESERVOIR Service and Repair

6. INSPECT FOR BRAKE FLUID LEAK

7. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
