Installation

GARAGE DOOR OPENER: GARAGE DOOR OPENER SWITCH: INSTALLATION

1. INSTALL ROOF CONSOLE BOX ASSEMBLY

(a) Connect the connectors.

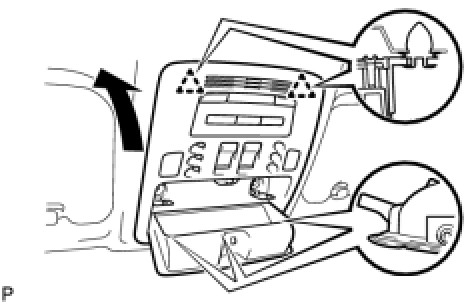

(b) Engage the 2 clips and install the console box assembly.

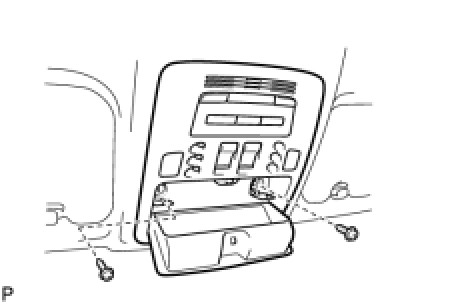

(c) Install the 2 screws.

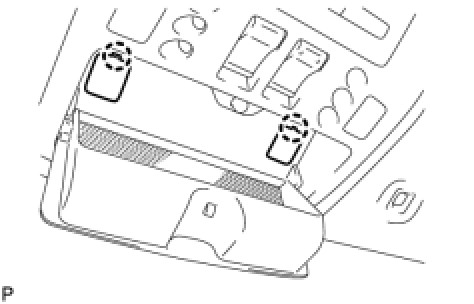

(d) Engage the 2 claws and close the 2 covers.
