Pinout Values and Diagnostic Parameters

P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: TERMINALS OF ECU

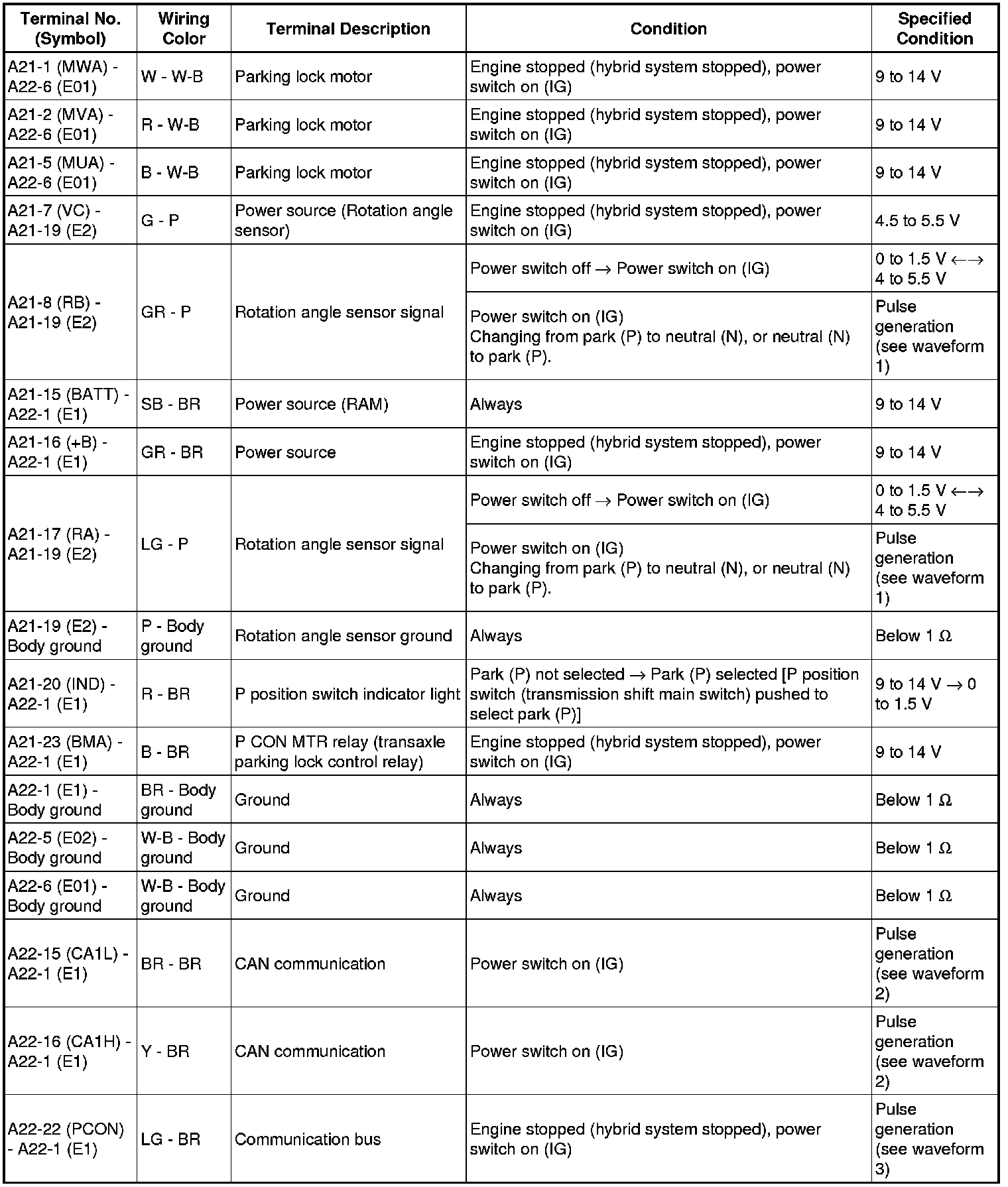

1. TRANSMISSION CONTROL ECU INSPECTION





HINT

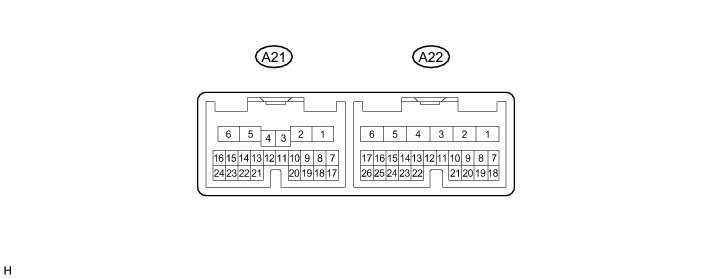

Inspect the connectors from the back while the connector is connected.









2. Oscilloscope waveforms

HINT
Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.

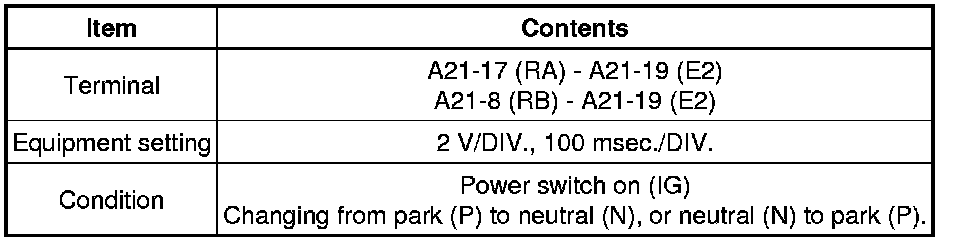

(a) Waveform 1 (Rotation angle sensor signal)









HINT
* When changing from park (P) to neutral (N), or neutral (N) to park (P) with the power switch on (IG), a waveform will be generated for up to 0.5 seconds.
* The waveform shown is for reference only.

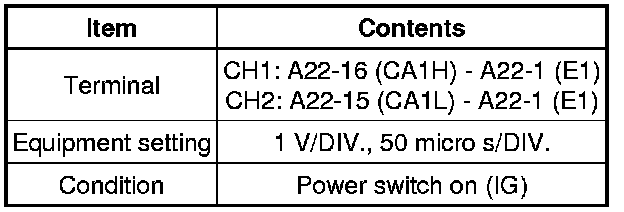

(b) Waveform 2 (CAN communication signal)

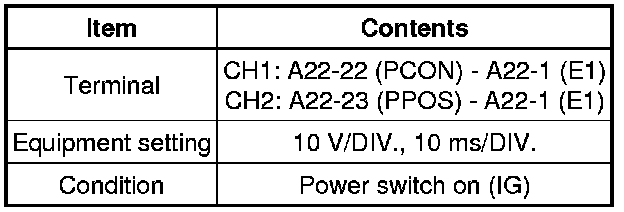

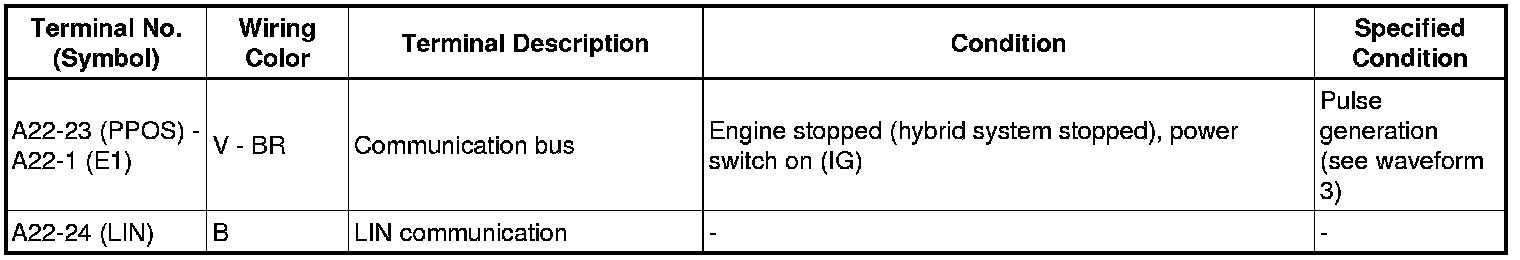

(c) Waveform 3 (Transmission control communication signal)
