Fail-Safe Chart





P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: FAIL-SAFE CHART

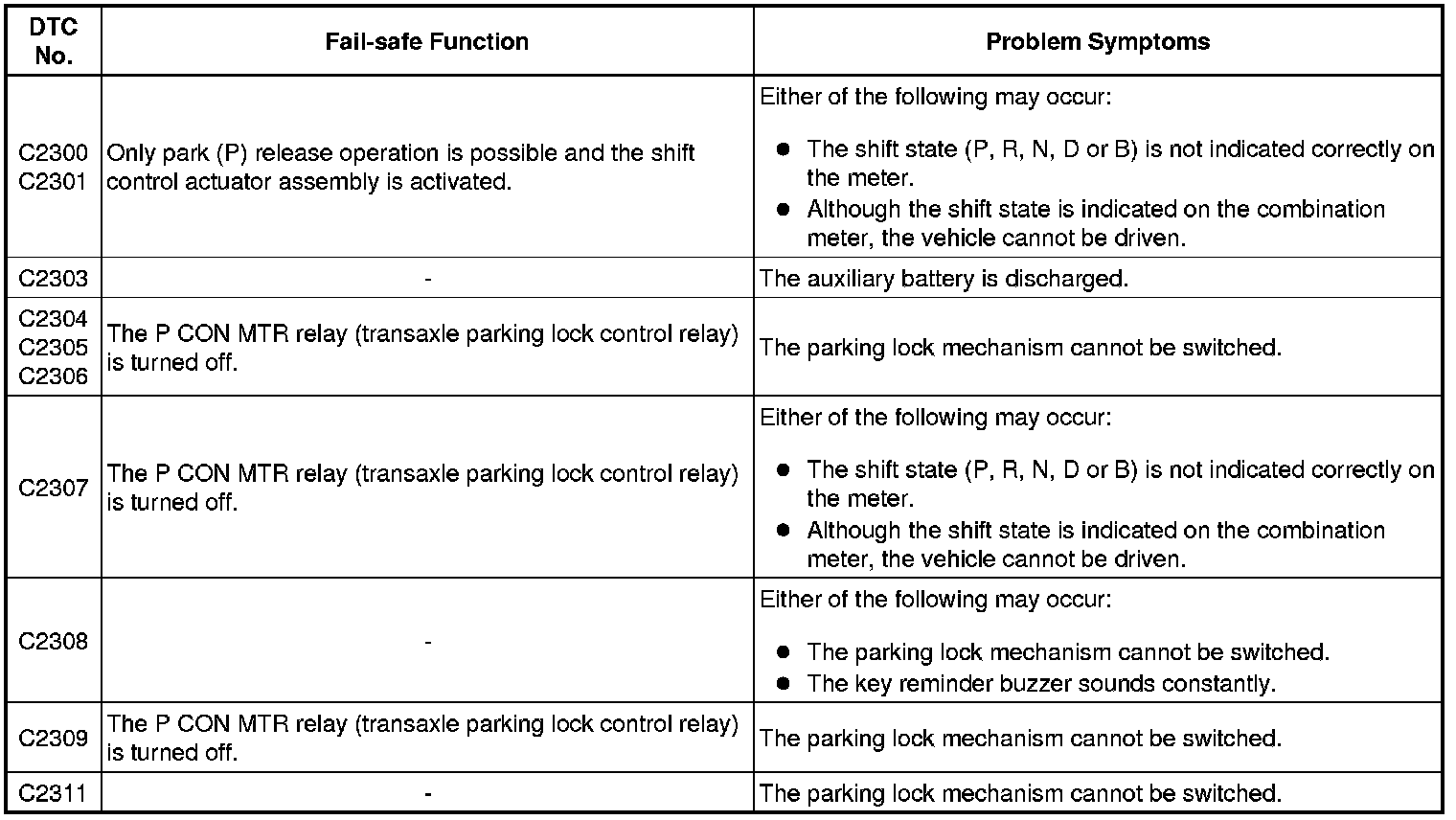

If the transmission control ECU assembly detects a malfunction, the fail-safe functions shown in the table below are activated.
