CT 200h L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>
Connector Locations
Connector Locations

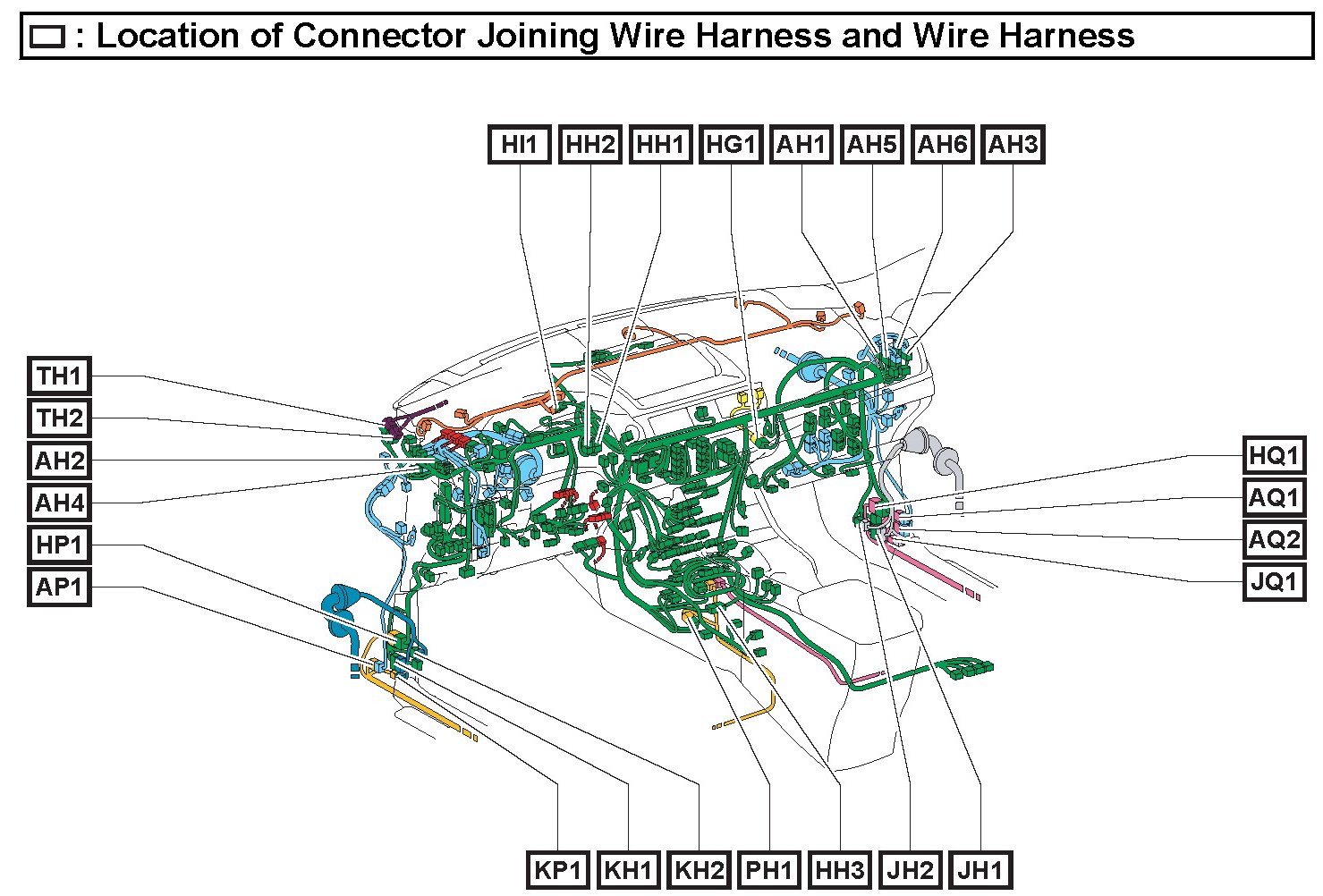

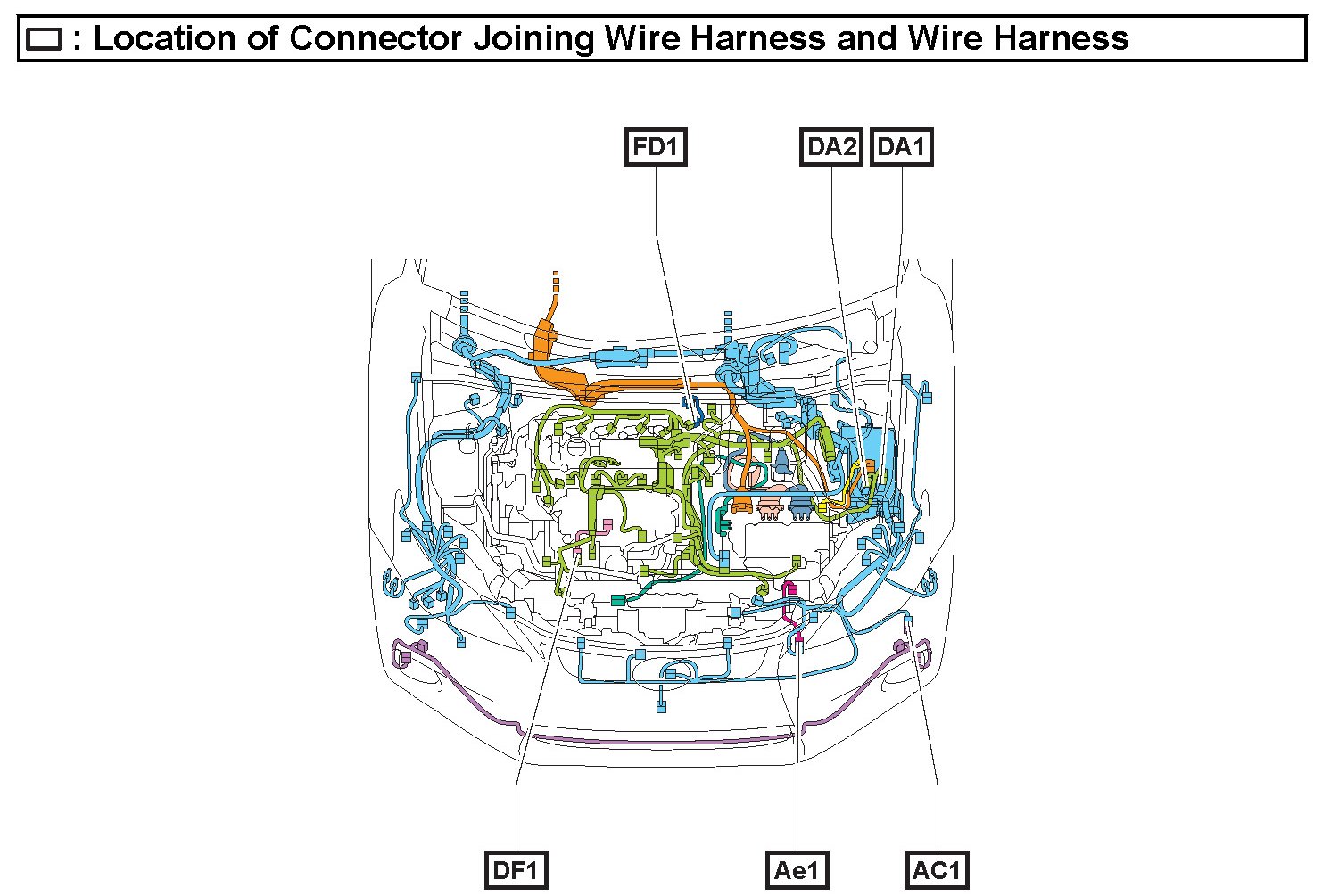

AC1-FD1:
AH1-TH2:

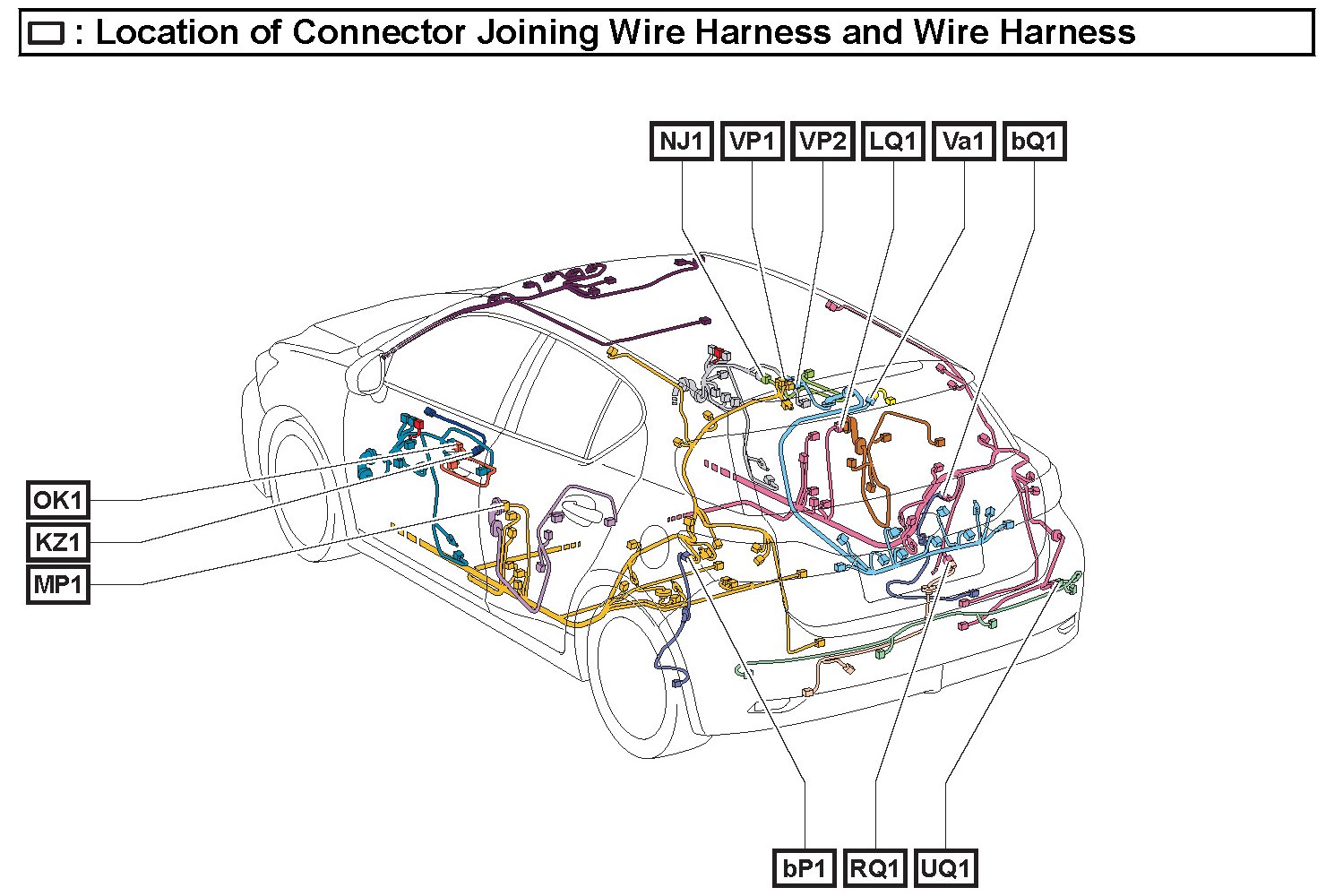

bP1-VP2:
Qi1:
[w/ Power Seat]
PX1-YX2:

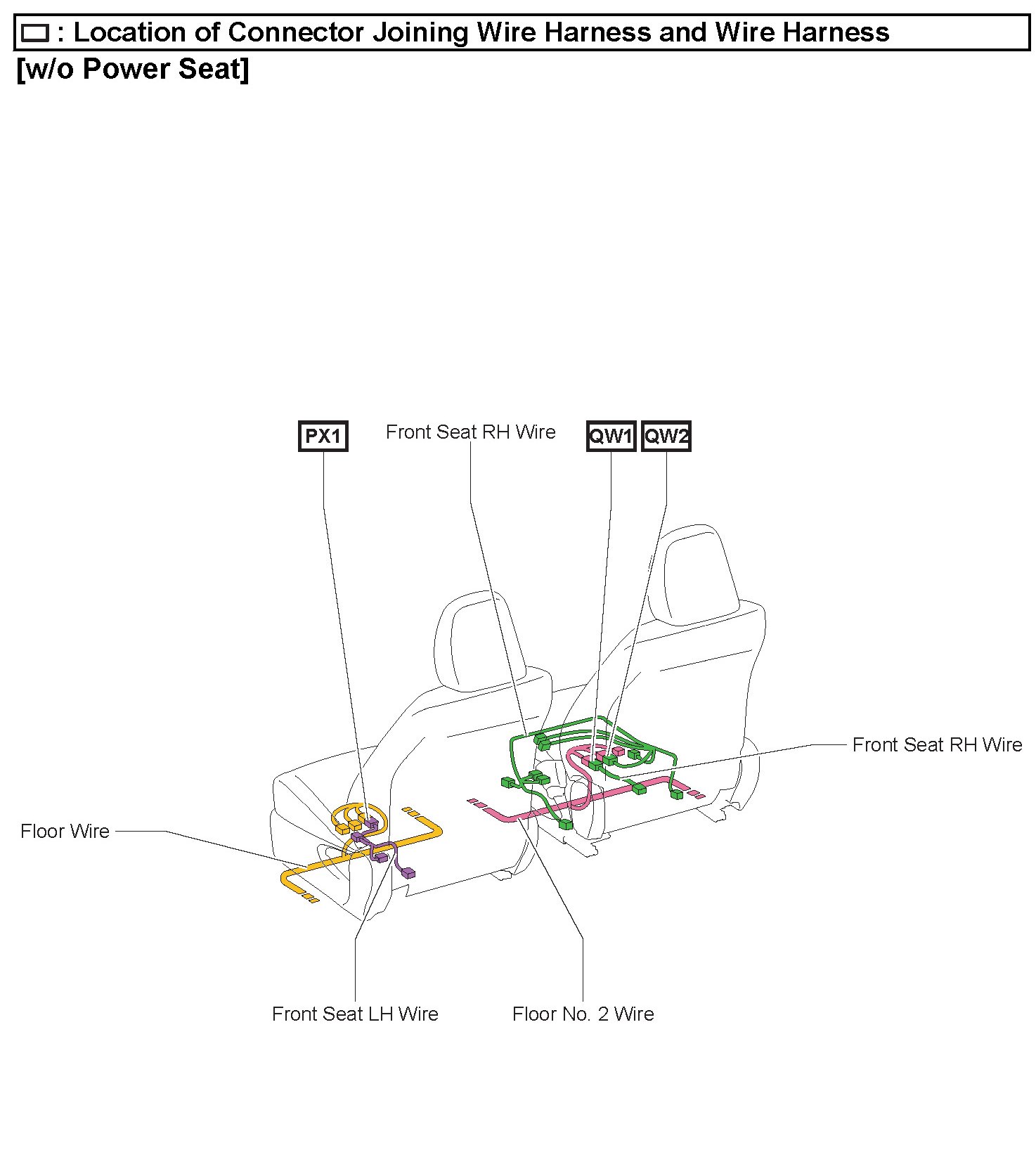

w/o Power Seat]
PX1-QW2:
