Torque Specifications





SPECIFICATIONS: 2ZR-FXE COOLING: TORQUE SPECIFICATIONS

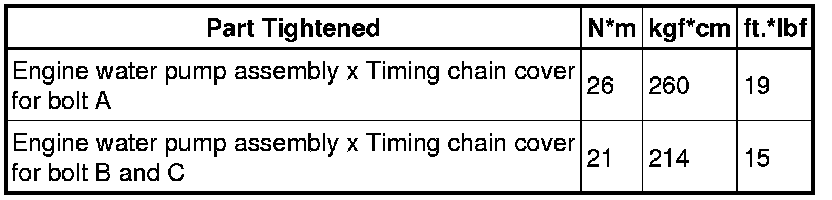

WATER PUMP





TEMPERATURE SWITCH





THERMOSTAT





EXHAUST PIPE GAS CONTROL ACTUATOR

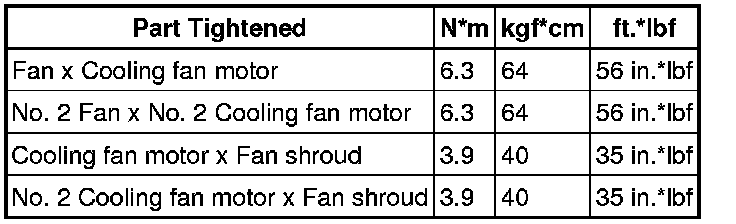

COOLING FAN MOTOR

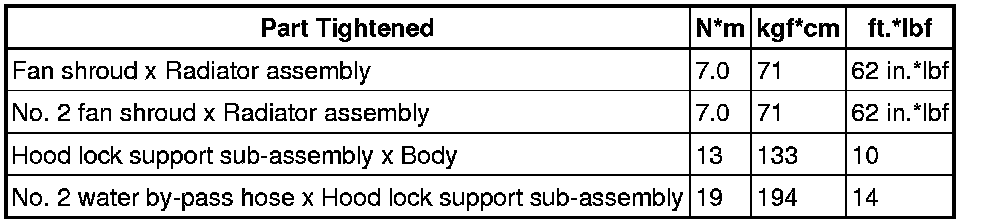

RADIATOR
