Fail-Safe Chart

2ZR-FXE ENGINE CONTROL: SFI SYSTEM: FAIL-SAFE CHART

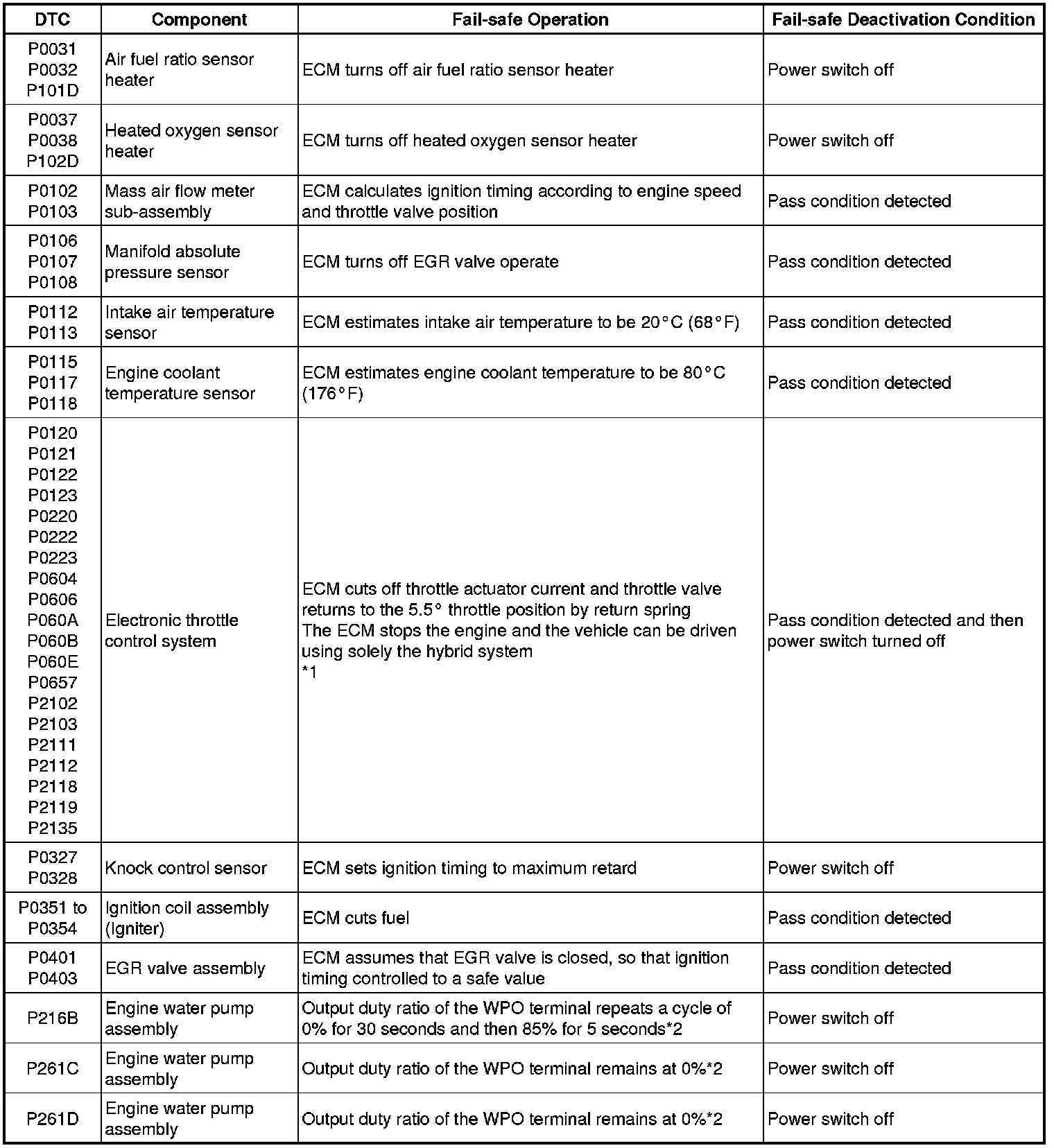

If any of the following DTCs are set, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily or stops fuel injection.





HINT
* *1: The vehicle can be driven slowly when the accelerator pedal is depressed firmly and slowly.
* *2: When the coolant temperature reaches 105°C (221°F), the engine is stopped and the hybrid system is solely used to driving vehicle.
