Operation Check

LIGHTING (EXT): LIGHTING SYSTEM: OPERATION CHECK

1. AUTOMATIC LIGHT CONTROL SYSTEM OPERATION CHECK

(a) Turn the power switch on (IG).

(b) Turn the light control switch to the AUTO position.

(c) Cover the automatic light control sensor.

(d) Check that the taillights and low beam headlights come on.

(e) Uncover the automatic light control sensor.

(f) Check that the low beam headlights and taillights go off.

2. LIGHT AUTO TURN-OFF SYSTEM OPERATION CHECK

(a) When only the taillights are on:

(1) Close the driver door.

(2) Turn the power switch on (IG).

(3) Turn the light control switch to the tail position.

(4) Turn the power switch off.

(5) Open the driver door.

(6) Check that the taillights go off immediately.

(b) When the low beam headlights are on:

(1) Close all of the doors.

(2) Turn the power switch on (IG).

(3) Turn the low beam headlights, high beam headlights or front fog lights on.

(4) Turn the power switch off.

(5) Open any door.

(6) Close all of the doors.

(7) Check that all of the lights go off after 30 seconds (delay function).

HINT
Before the lights go off, if the lock button on the key is pushed after all of the doors are locked, all of the lights will go off immediately.

3. DAYTIME RUNNING LIGHT SYSTEM OPERATION CHECK

(a) The headlight dimmer switch has DRL OFF function:

(1) Turn the power switch on (READY).

(2) Light control switch is in the tail or AUTO position (and the low beam headlights are not turned on via the automatic light control system).

(3) Release the parking brake.

(4) Check that the daytime running lights (high-intensity LED parking lights) come on.

(b) The headlight dimmer switch does not have DRL OFF function:

(1) Turn the power switch on (READY).

(2) Light control switch is in the off , tail or AUTO position (and the low beam headlights are not turned on via the automatic light control system).

(3) Release the parking brake.

(4) Check that the daytime running lights (high-intensity LED parking lights) come on.

4. DOOR MIRROR FOOT LIGHT SYSTEM OPERATION CHECK

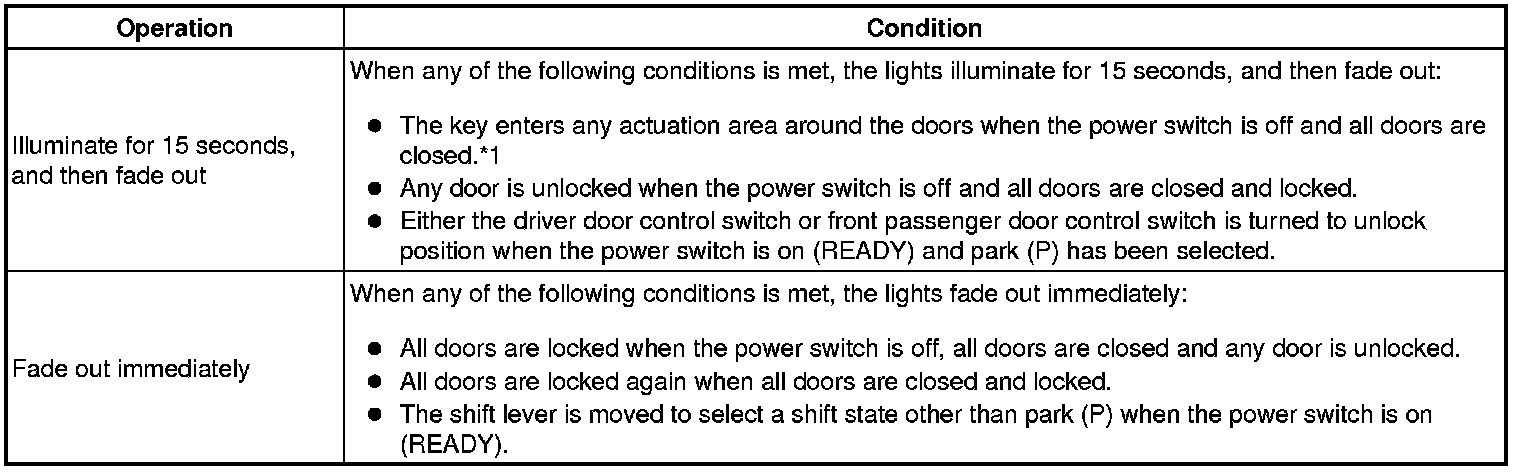

(a) The operation and condition of this control are described below.





HINT
*1: When the lights are on, if the key leaves the actuation areas around the doors, after approximately 3 seconds, the door mirror foot lights fade out.
