Audio System (W/O Lexus Navigation System W/ Stereo Component Amplifier)

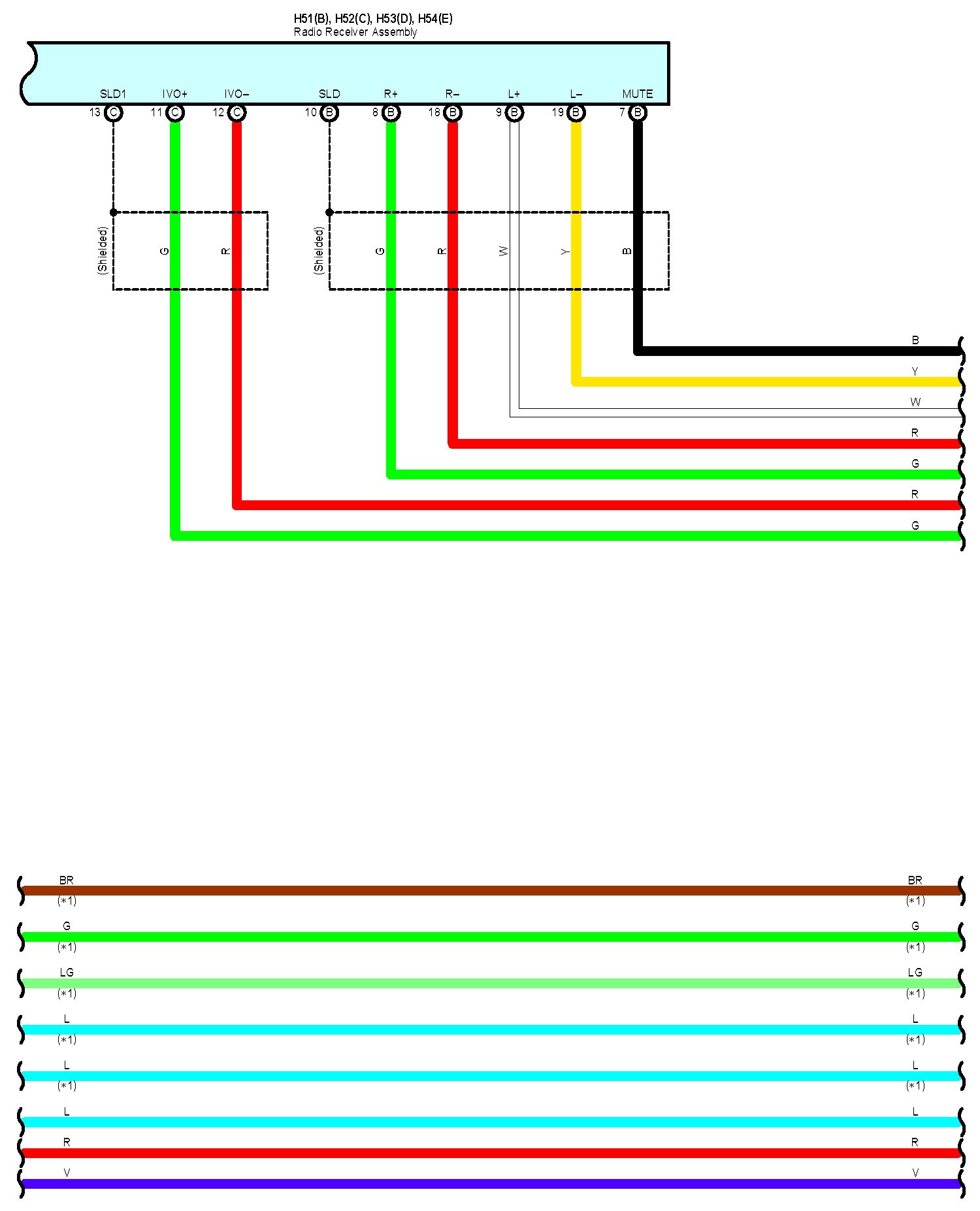

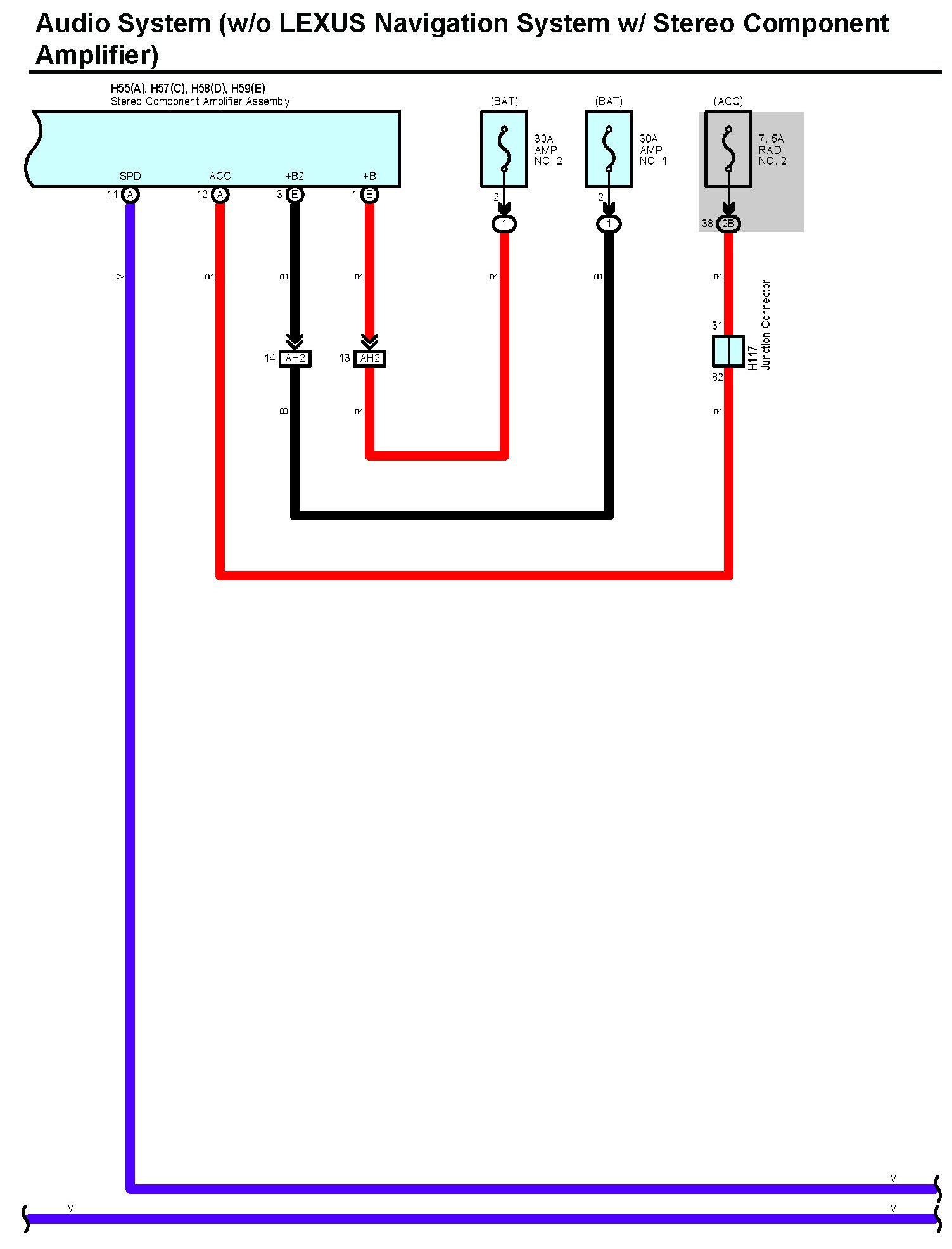

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 1:

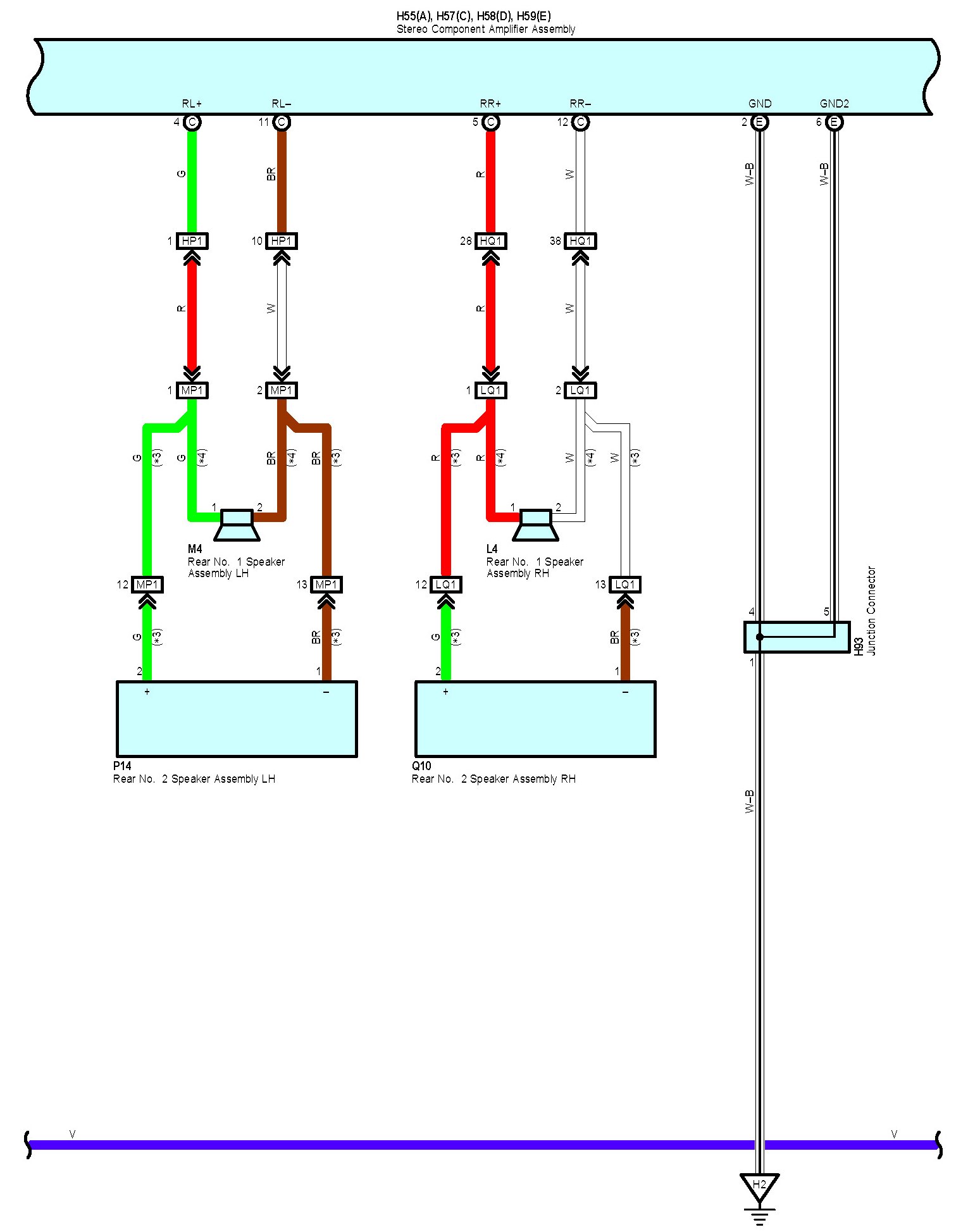

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 2:

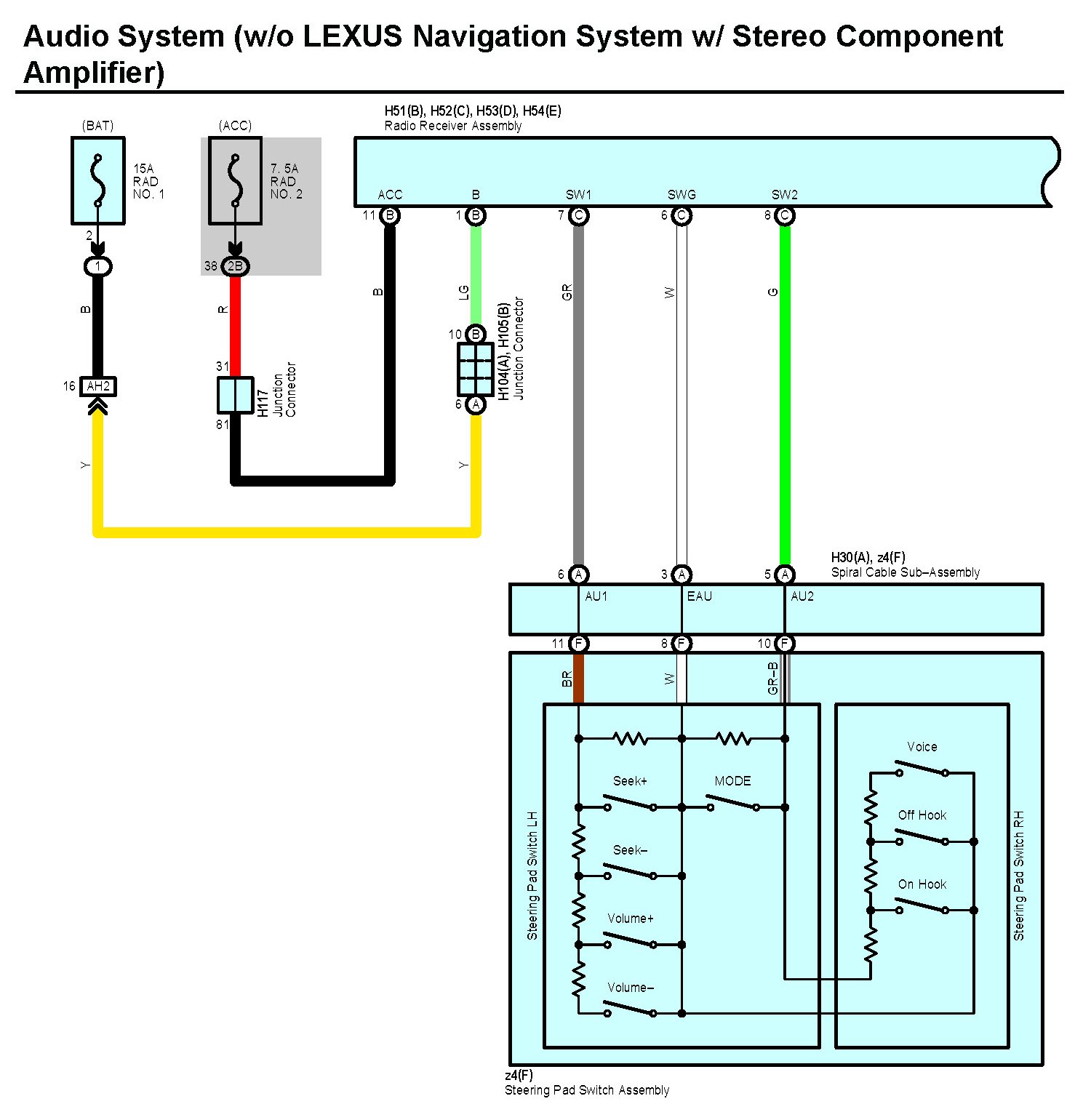

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 3:

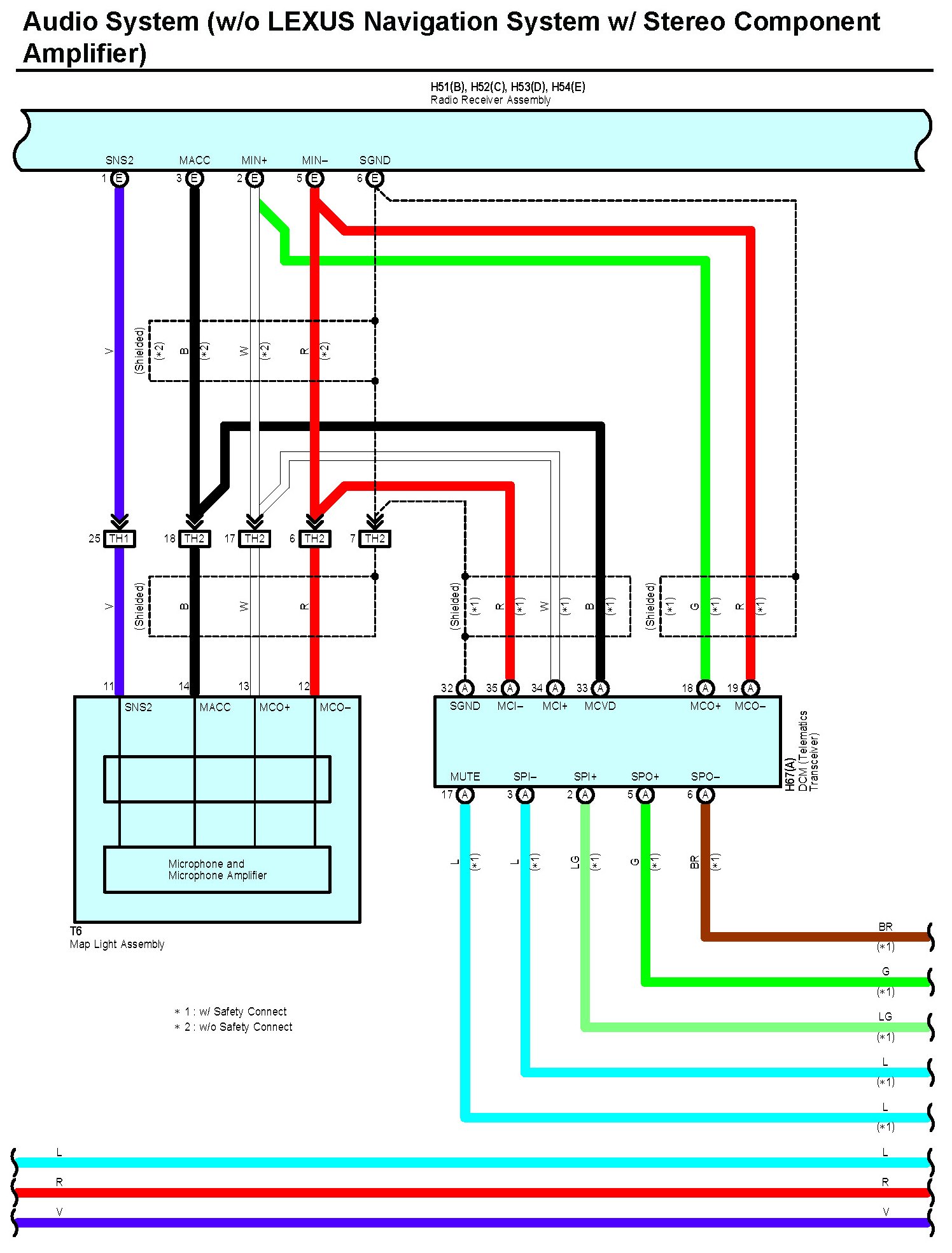

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 4:

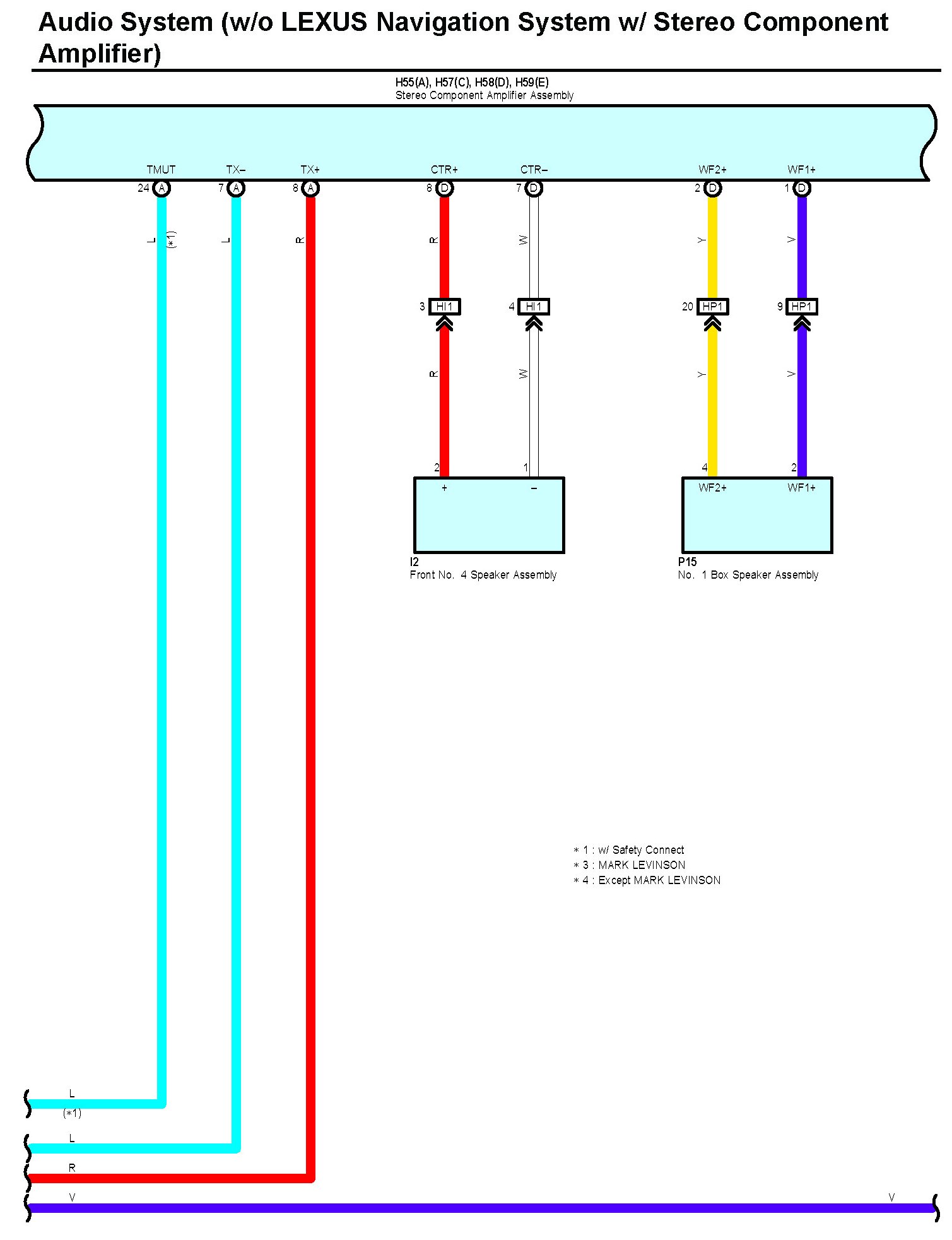

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 5:

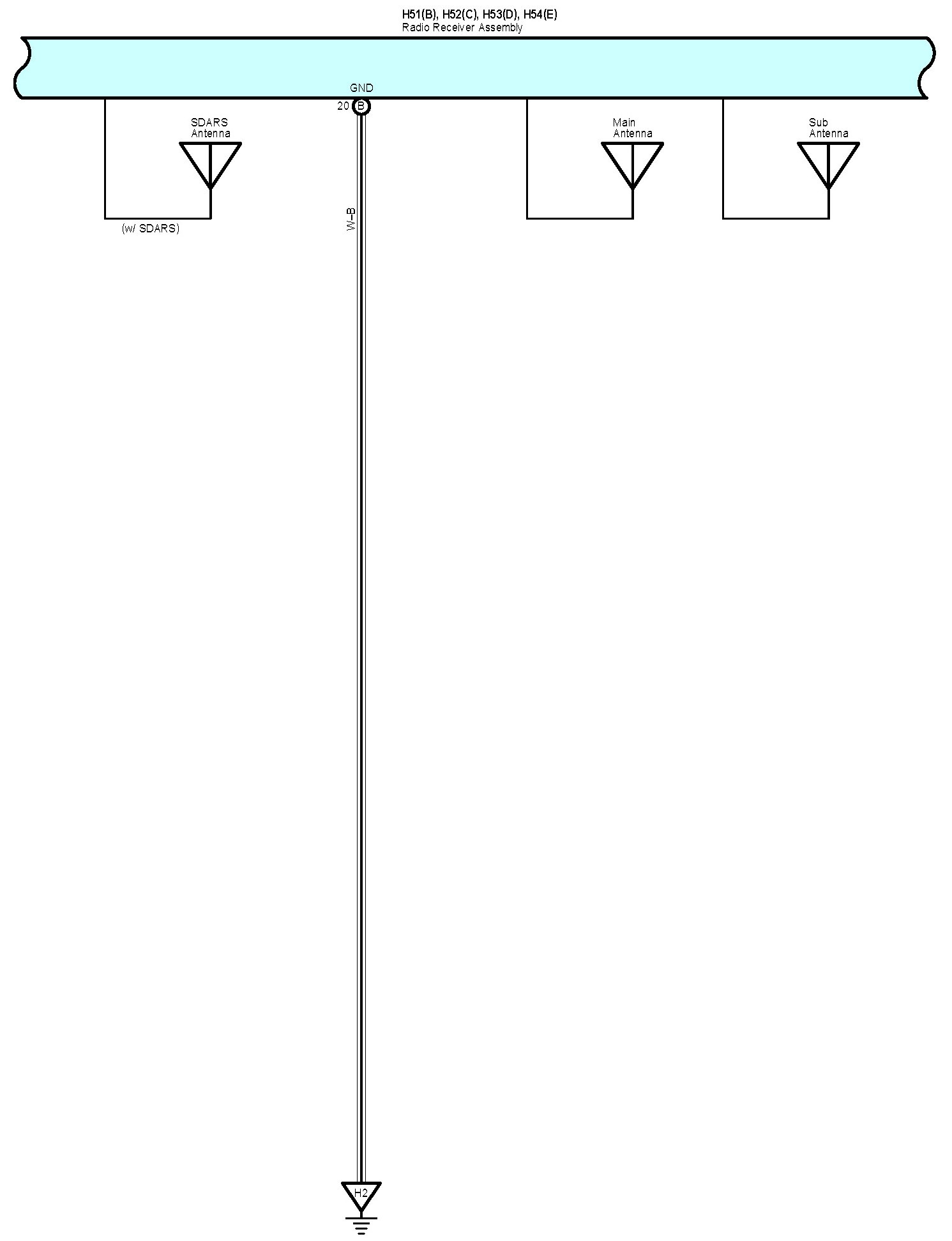

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 6:

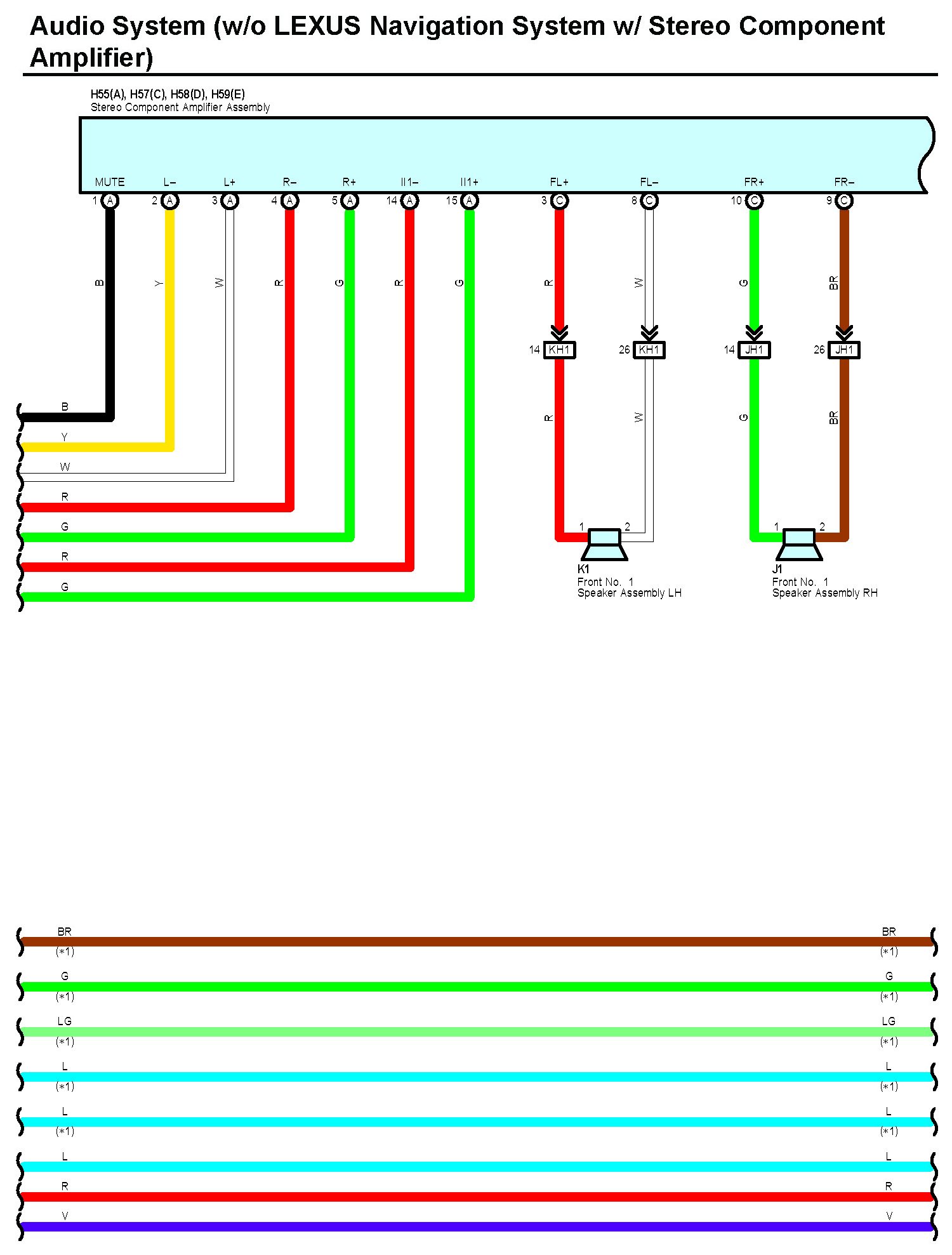

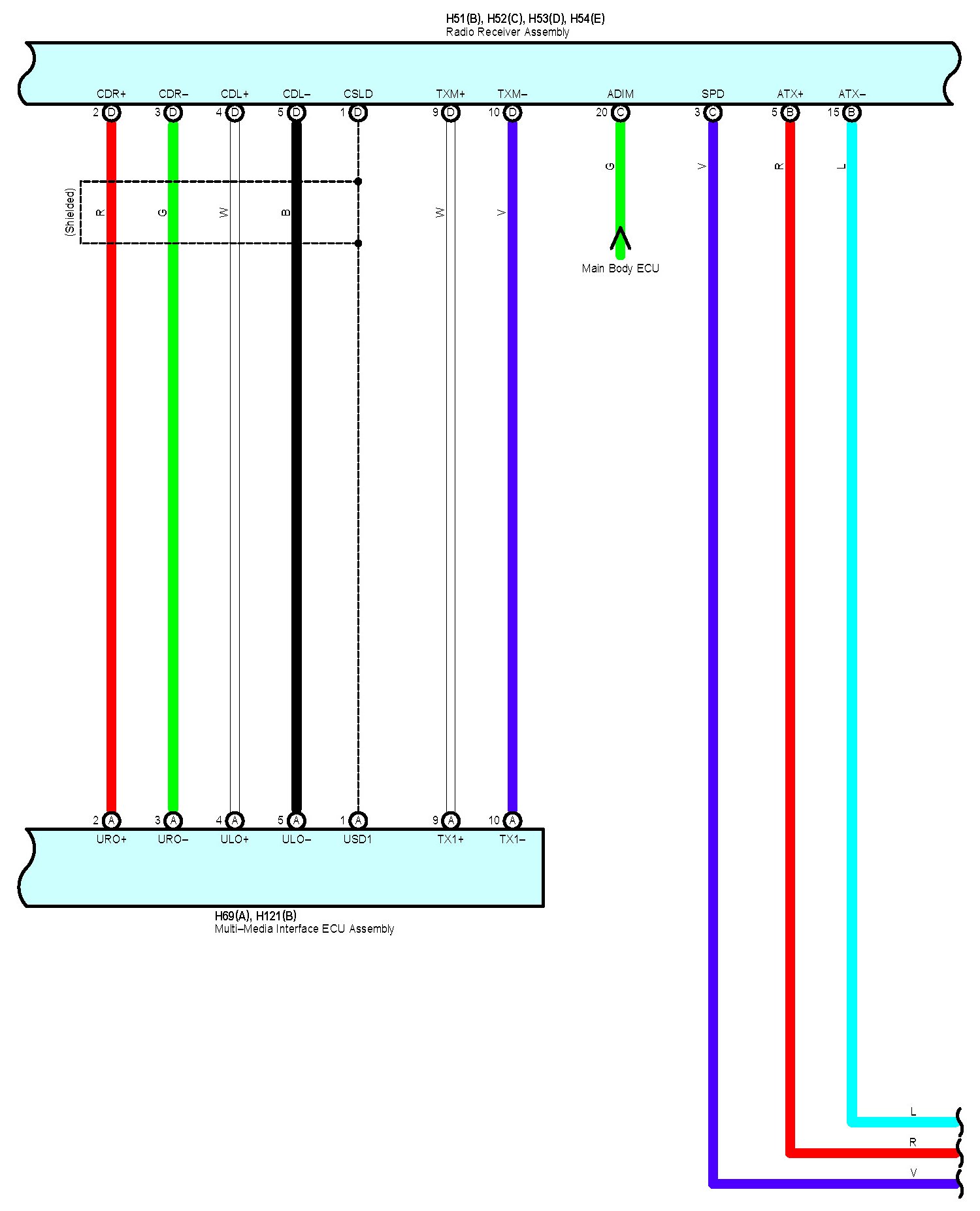

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 7:

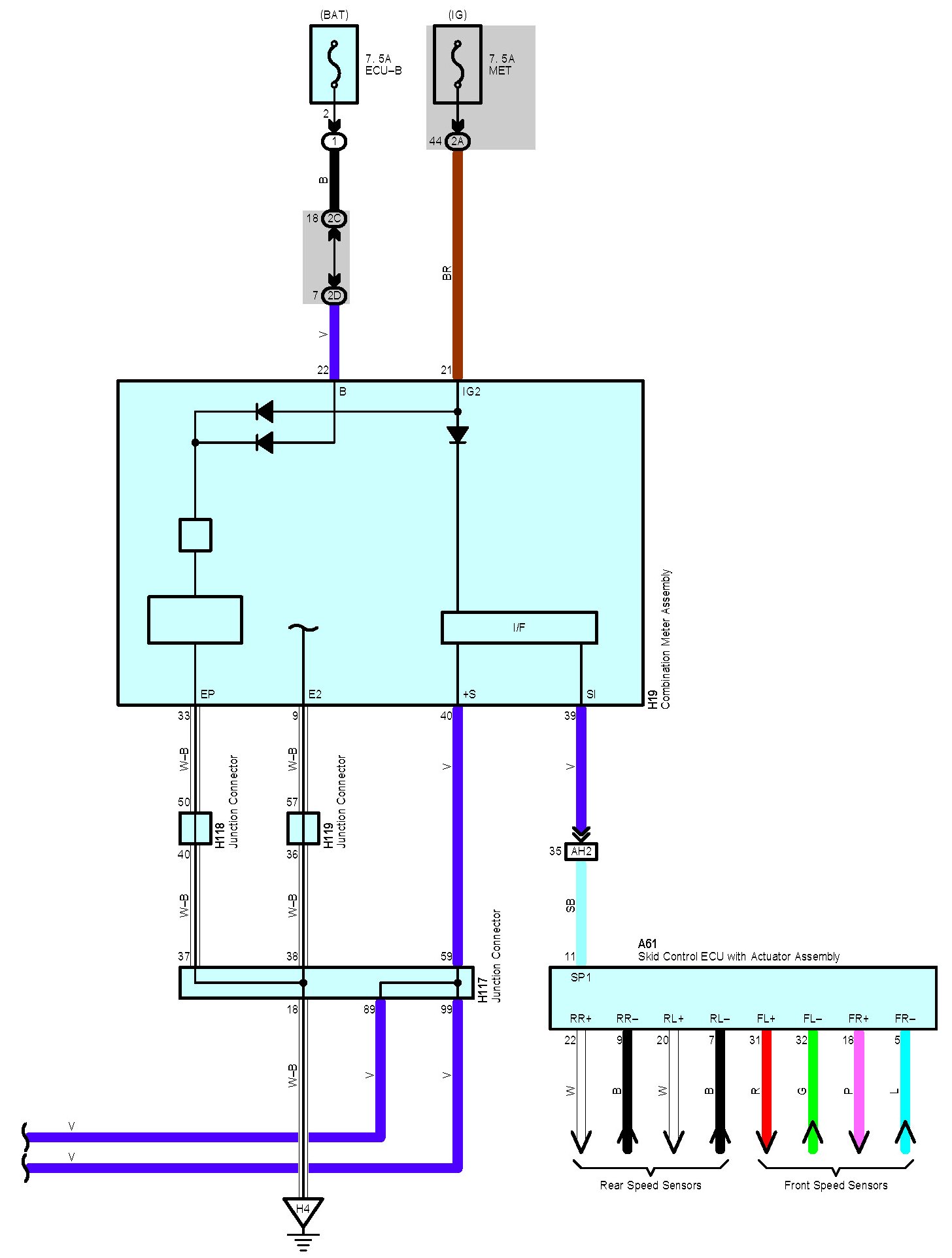

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 8:

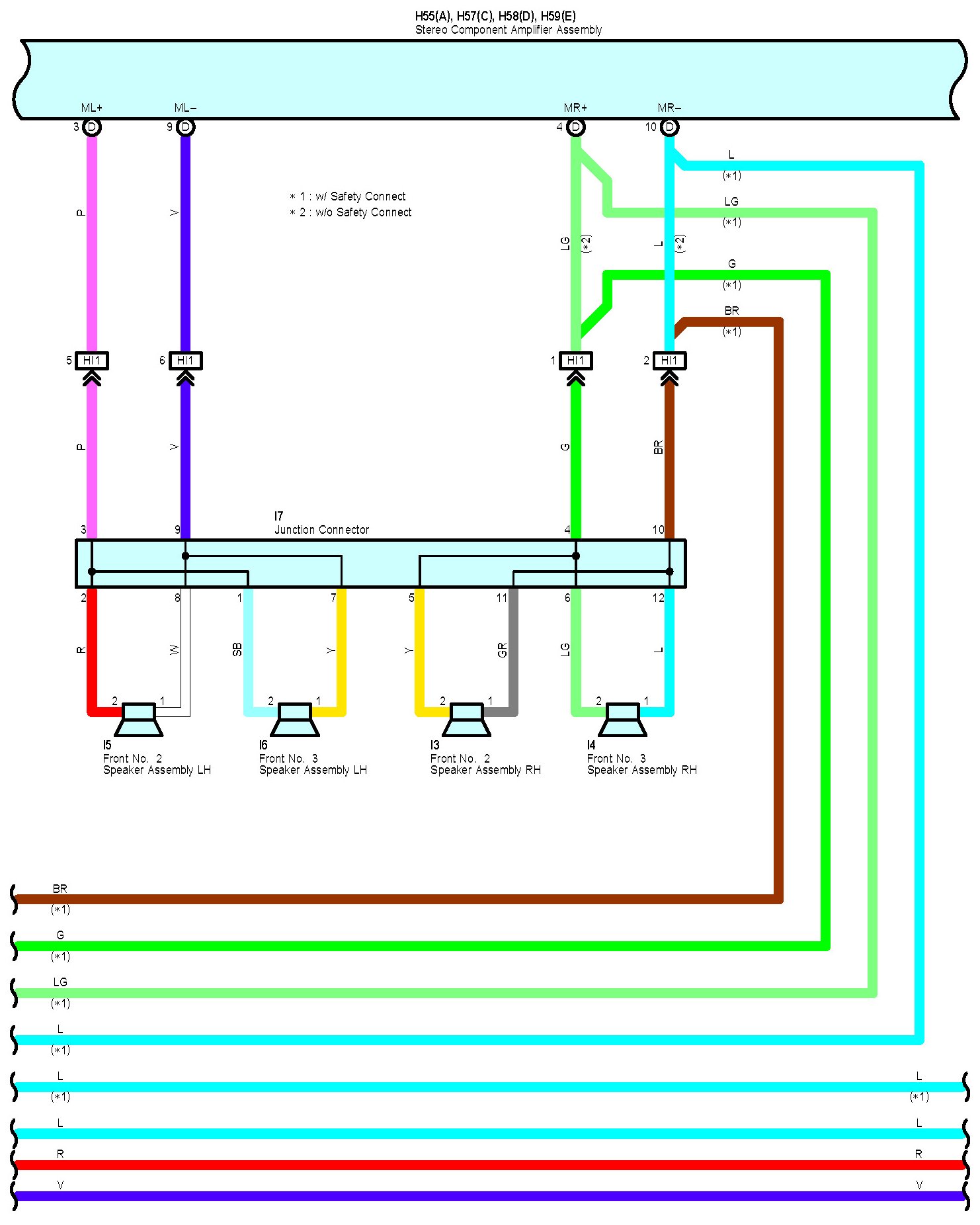

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 9:

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 10:

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 11:

Audio System (w/o Lexus Navigation System w/ Stereo Component Amplifier) Part 12:

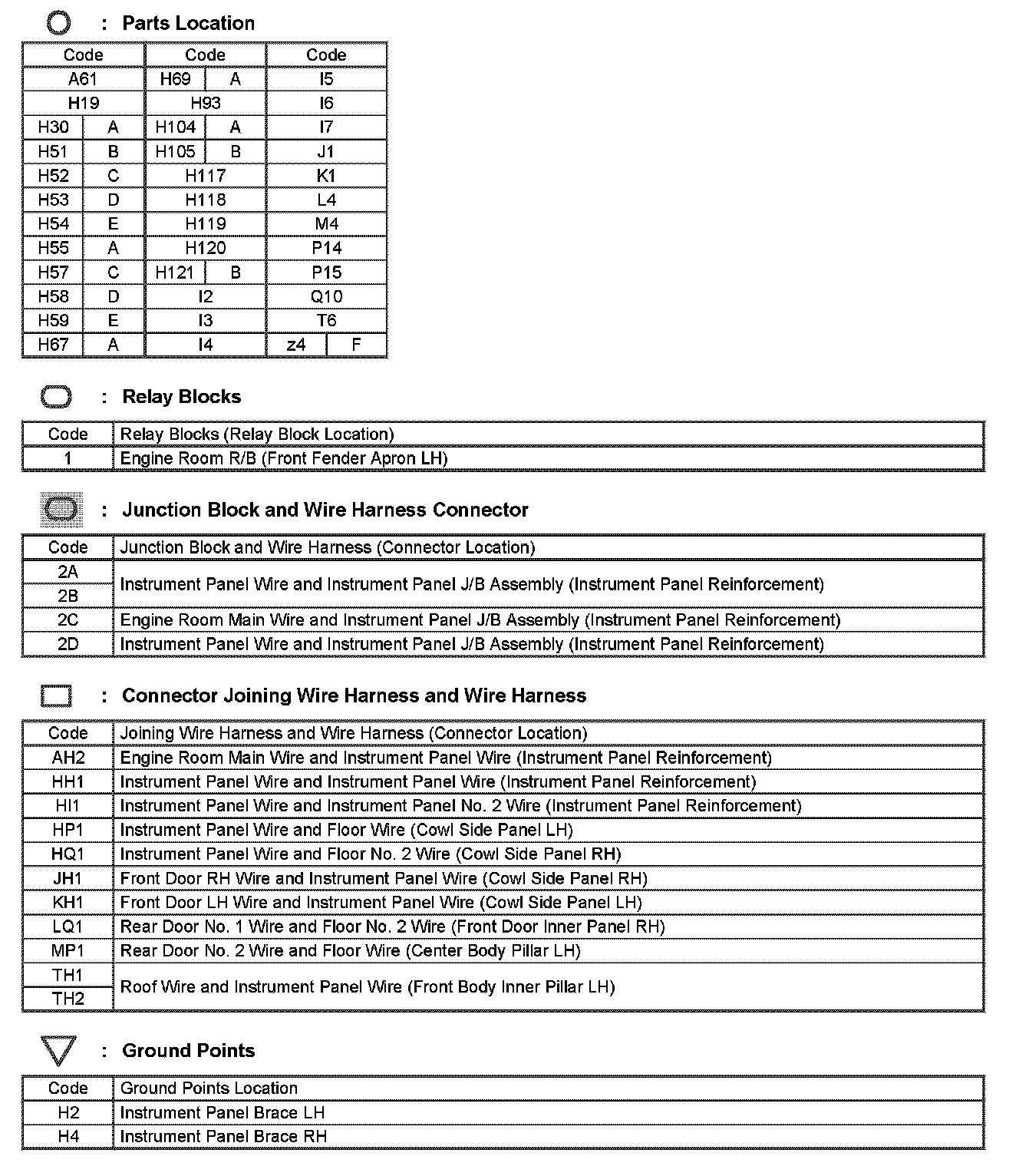

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
