How to Proceed with Troubleshooting

CRUISE CONTROL: CRUISE CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedure to troubleshoot the cruise control system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT AUXILIARY BATTERY VOLTAGE

(a) Measure the auxiliary battery voltage with the power switch off.

Standard Voltage:

11 to 14 V

If the voltage is below 11 V, replace or recharge the auxiliary battery before proceeding to the next step.

NEXT -- Continue to next step.

3. CHECK COMMUNICATION FUNCTION OF CONTROLLER AREA NETWORK (CAN)*

(a) Use the Techstream to check if the CAN communication system is functioning normally.

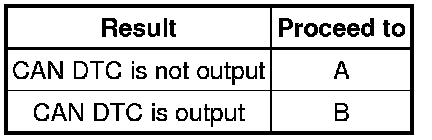

Result:





B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

4. CHECK FOR DTC*

Refer to DTC Check / Clear Cruise Control System.

(a) Check for DTCs and note any codes that are output.

(b) Clear the DTCs.

(c) Recheck for DTCs. Try to reproduce the DTCs by duplicating the conditions indicated by the DTCs.

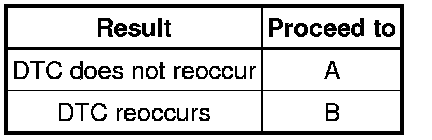

Result:





B -- GO TO DTC CHART Cruise Control System
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

Refer to Problem Symptoms Table Cruise Control System.

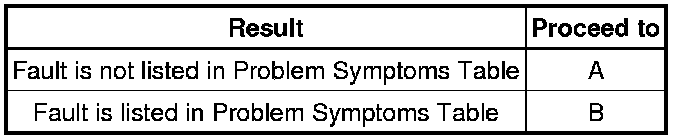

Result:





B -- Go to step 7
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Terminals of ECU Cruise Control System

(b) Data List / Active Test Cruise Control System

NEXT -- Continue to next step.

7. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
