Customize Parameters

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE POWER DOOR LOCK CONTROL SYSTEM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Customizing with the Techstream

(1) Connect the Techstream to the DLC3

(2) Turn the power switch on (IG).

(3) Turn the Techstream on

(4) Enter the following menus: Customize Setting / Door Lock

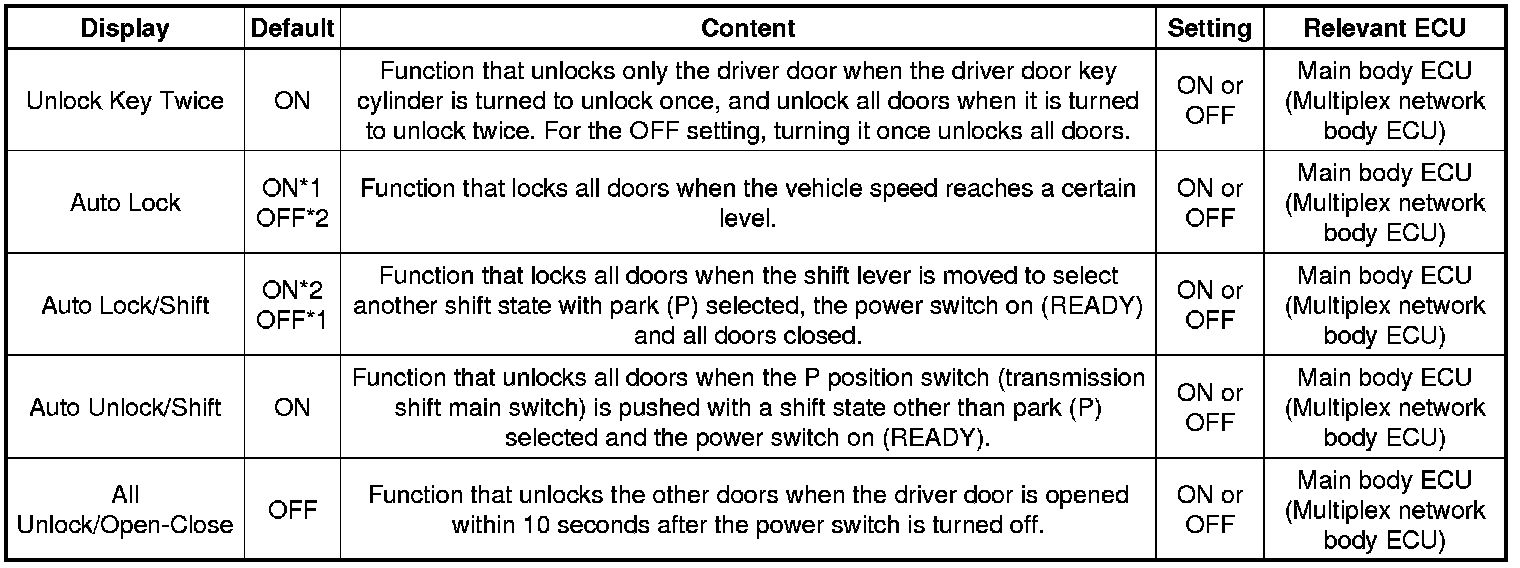

(5) Select the setting by referring to the table below.





*1: for Korea

*2: except Korea

(b) Customizing with the Multi-display (w/ Navigation System (for HDD))

(1) Turn the power switch on (IG).

(2) Enter the following menus: Setup / Vehicle / Vehicle Customization / Door Lock Setting

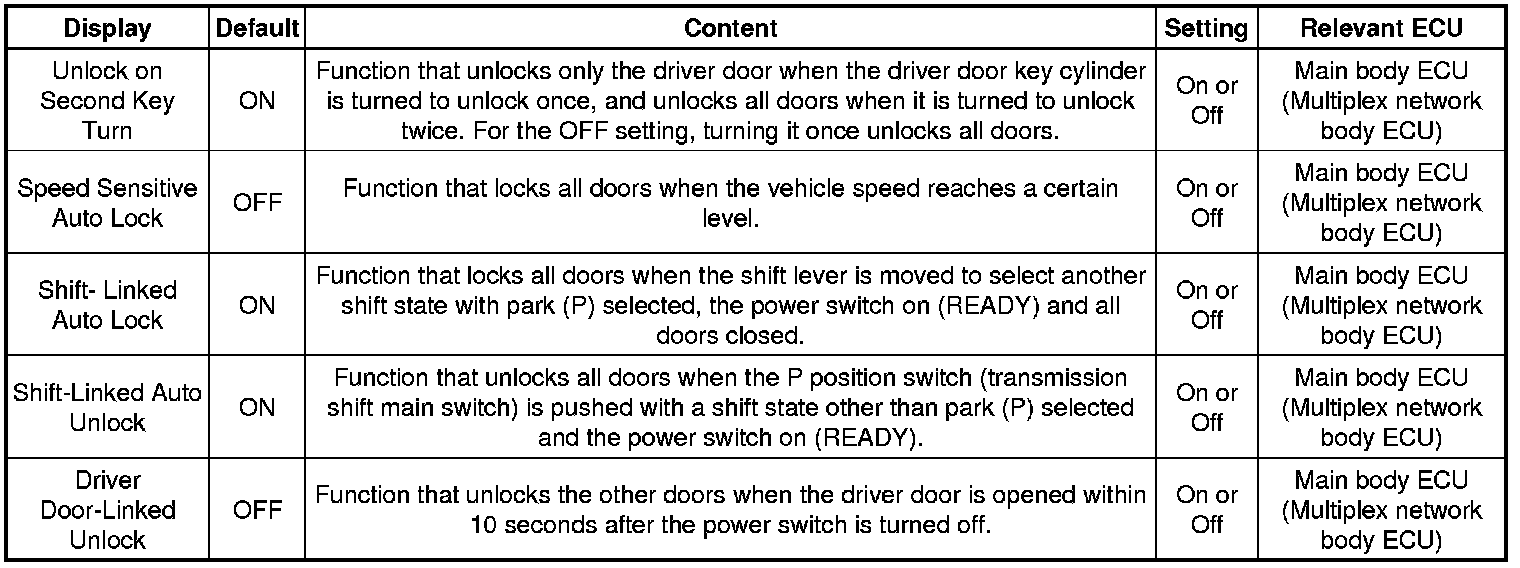

(3) Select the setting by referring to the table below





(c) Customizing with the combination meter assembly (w/o Navigation System (for HDD))

HINT
* Press and hold the DISP switch (steering pad switch assembly) when entering an item.
* Briefly press the DISP switch (steering pad switch assembly) when selecting an item.

(1) Turn the power switch on (IG).

(2) Enter the following menus: Settings / Vehicle Settings

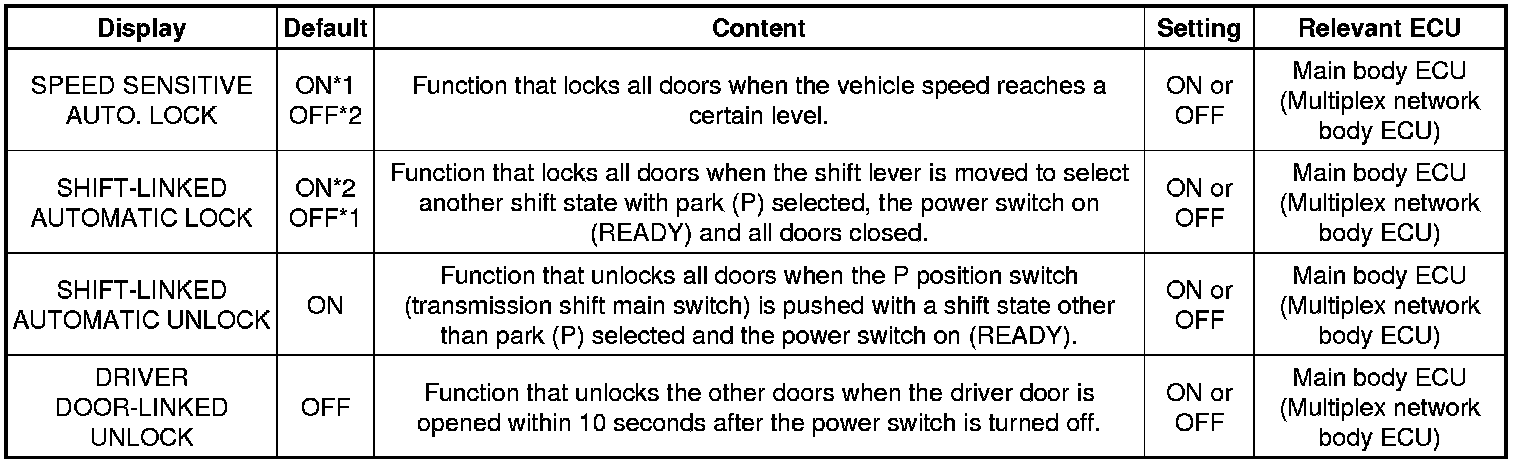

(3) Select the setting by referring to the table below





*3: for Korea

*4: except Korea

(4) Press and hold the DISP switch (steering pad switch assembly).

(5) The setting completion screen will be displayed.

(6) Return to the item selection screen.
