Interior - Center Console Lid Hard To Close Or Latch

L-TCI-3162

June 6, 2012

CENTER CONSOLE LID DIFFICULT TO LATCH

Service Category
Vehicle Interior

Section
Interior Panels/Trim

Market
Canada




APPLICABILITY:

INTRODUCTION:

Some vehicles may exhibit a center console lid that is difficult to close and/or will not latch. Follow the procedures in this bulletin to address this condition.


PRODUCTION CHANGE INFORMATION:






This TSB applies to vehicles produced BEFORE the Production Change Effective VIN shown below.

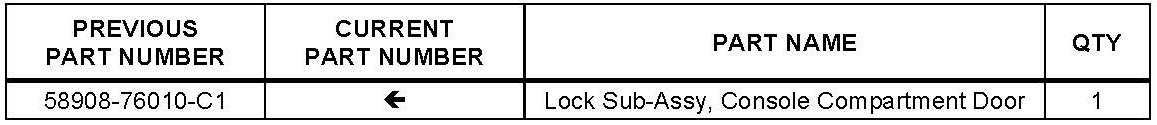

PARTS INFORMATION:

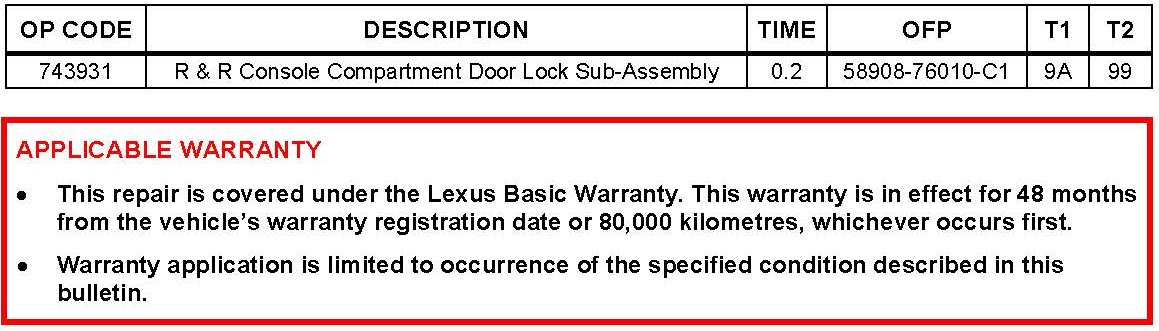

WARRANTY INFORMATION:

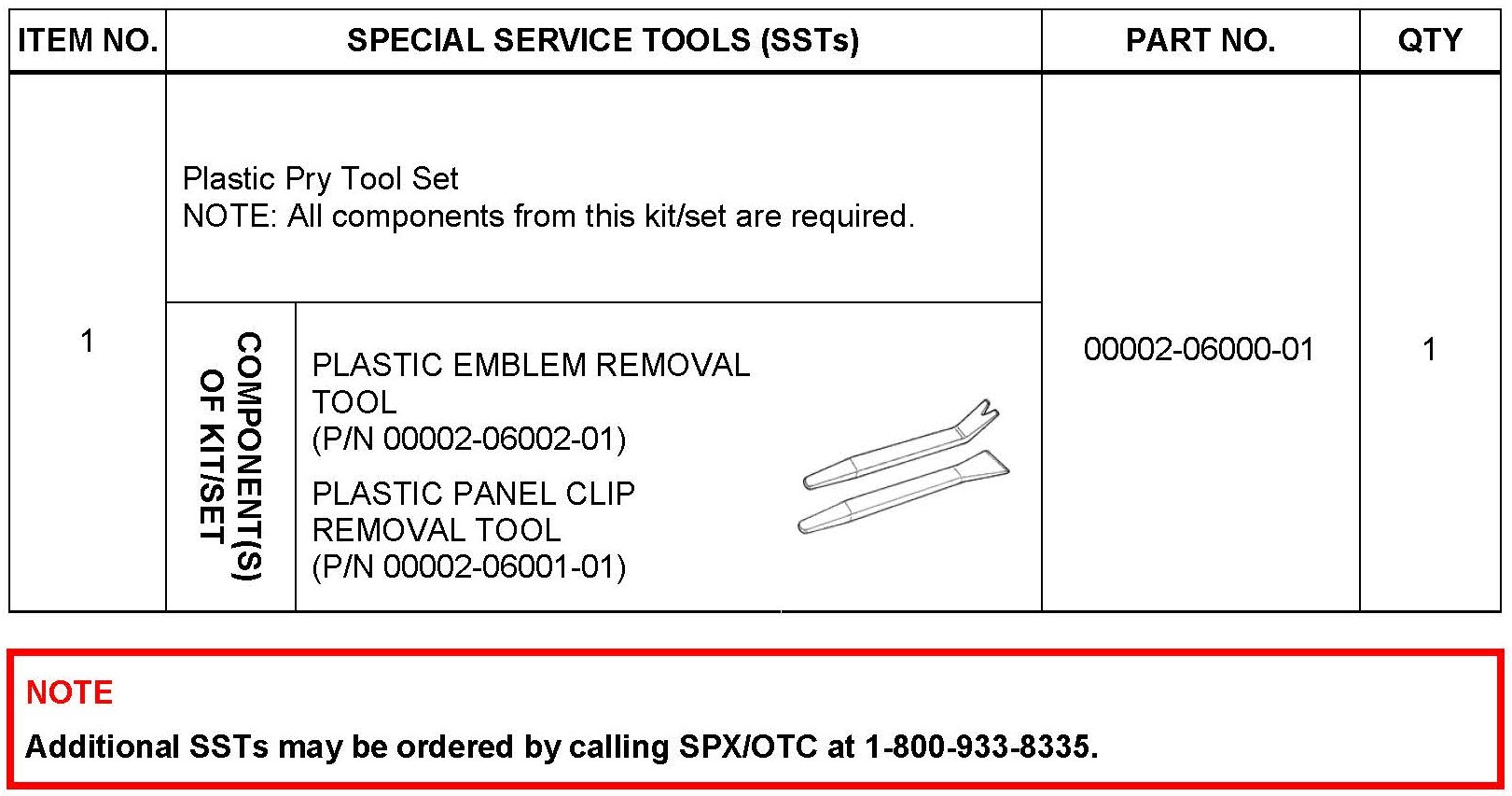

REQUIRED TOOLS & EQUIPMENT:

REPAIR PROCEDURE:

1. If the center console lid is difficult to close and/or will not latch, replace the center console corn partment door lock sub-assembly

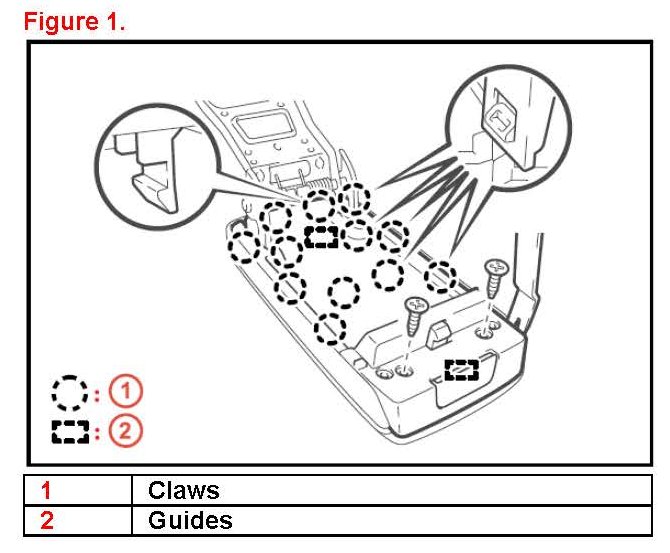

2. Remove the console compartment door lock sub-assembly






A. Remove the 2 screws.

B. Using a plastic pry tool, disengage the 12 claws and 2 guides, and remove the console compartment door lock sub-assembly from the inner console compartment door.

3. Replace the door lock sub-assembly.

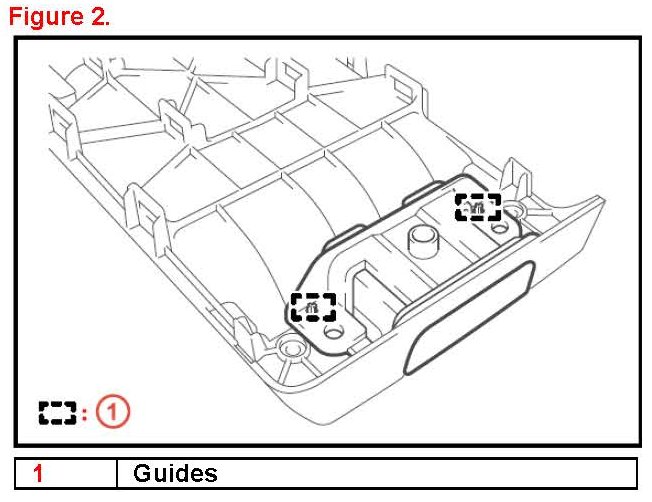

A. Engage the 2 guides to install the NEW console compartment door lock sub-assembly to the inner console compartment door.

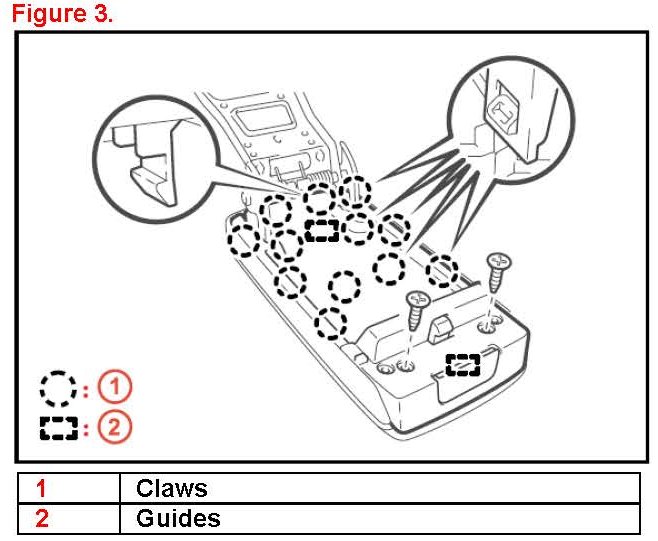

B. Engage the 2 guides and 12 claws to install the console compartment door lock sub-assembly and inner console compartment door.

C. Install the 2 screws.


4. Verify the repair.

NOTE:

Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.

© 2012 Lexus, a division of Toyota Motor Sales, Canada
