Cannot Call in a Certain Place

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System): Cannot Call in a Certain Place
- Cannot Call in a Certain Place

INSPECTION PROCEDURE

NOTICE:
After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, XM radio ID registration is necessary (w/ SDARS System).

PROCEDURE

1. CHECK SURROUNDING CONDITIONS

(a) Check if the cellular phone can make a call in a certain place.

OK:

The cellular phone can make a call.

NG -- END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)
OK -- Continue to next step.

2. CHECK RECEPTION

(a) Check the "Bluetooth" connection indicator (BT indicator) on the screen.

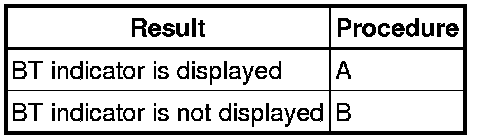

Result:





B -- REPLACE RADIO RECEIVER ASSEMBLY Removal

A -- SELECT REGISTERED CELLULAR PHONE OR REGISTER "Bluetooth" COMPATIBLE PHONE
