AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System): Speaker Circuit
- Speaker Circuit (Continued)

9. INSPECT REAR SPEAKER ASSEMBLY

(a) Resistance check

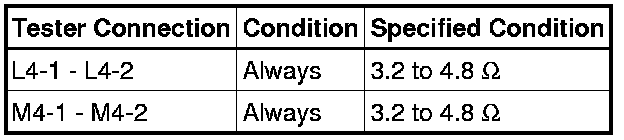

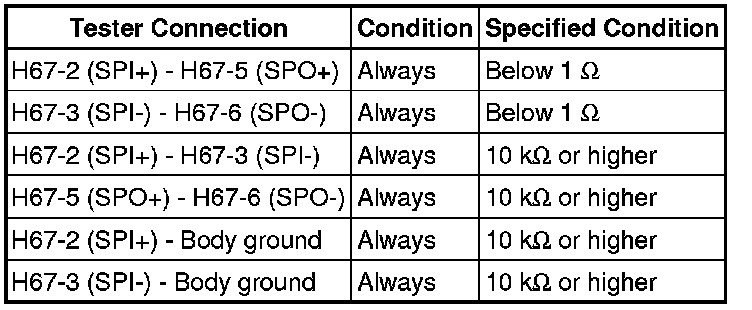

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE REAR SPEAKER ASSEMBLY Removal
OK -- Continue to next step.

10. INSPECT NO. 1 SPEAKER ASSEMBLY WITH BOX

(a) Resistance check

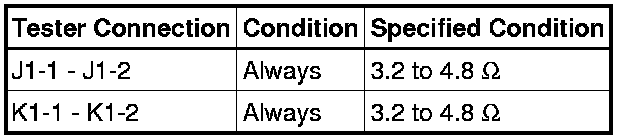

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration

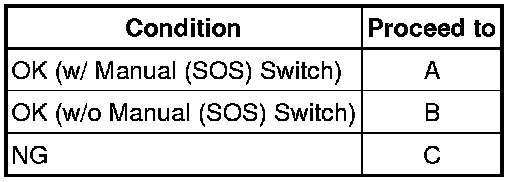

(b) Proceed to the next step based on the inspection result.

Result:





C -- REPLACE NO. 1 SPEAKER ASSEMBLY WITH BOX Removal

B -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
A -- Continue to next step.

11. INSPECT DCM (TELEMATICS TRANSCEIVER)

(a) Resistance check





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE DCM (TELEMATICS TRANSCEIVER) Removal

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

12. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

(a) Resistance check





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE FRONT NO. 1 SPEAKER ASSEMBLY Removal
OK -- Continue to next step.
