AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System): Speaker Circuit
- Speaker Circuit (Continued)

5. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

(a) Resistance check





(1) Measure the resistance according to the value(s) in the table below.

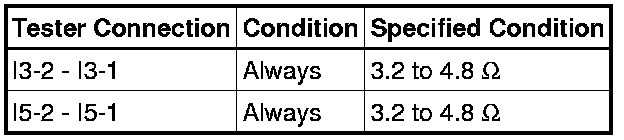

Standard Resistance:





Text in Illustration





NG -- REPLACE FRONT NO. 2 SPEAKER ASSEMBLY Removal
OK -- Continue to next step.

6. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY

(a) Resistance check





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE FRONT NO. 3 SPEAKER ASSEMBLY Removal
OK -- Continue to next step.

7. REPLACE FRONT NO. 3 SPEAKER ASSEMBLY

(a) Check that the malfunction disappears when a known good speaker is installed Removal.

OK:

Malfunction disappears.

HINT
* Connect all the connectors to the front No. 3 speaker assemblies that were disconnected.
* When there is a possibility that either the right or left speaker is defective, inspect by interchanging the right one with the left one.
* Perform the above inspection on both LH and RH sides.

NG -- INSPECT FRONT NO. 4 SPEAKER ASSEMBLY

OK -- END (FRONT NO. 3 SPEAKER ASSEMBLY WAS DEFECTIVE)

8. INSPECT FRONT NO. 4 SPEAKER ASSEMBLY

(a) Resistance check





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE FRONT NO. 4 SPEAKER ASSEMBLY Removal
OK -- Continue to next step.
