Sound Signal Circuit Between Multi-Media Interface ECU and Stereo Jack Adapter





AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/ Navigation System): Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter
- Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter

DESCRIPTION

The No. 1 stereo jack adapter assembly sends the sound data from an external device to the multi-media interface ECU assembly through this circuit.

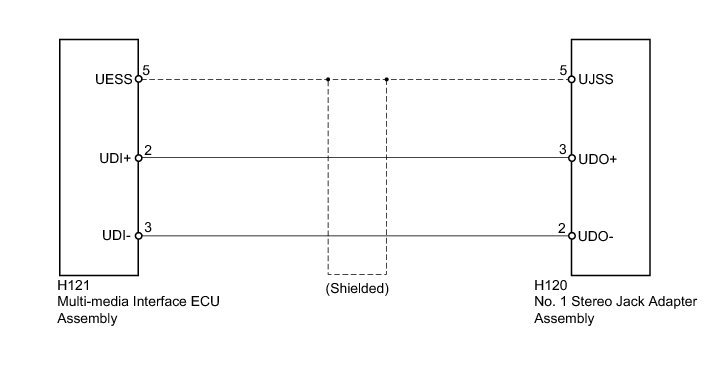

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR

(a) Disconnect the multi-media interface ECU assembly connector and No. 1 stereo jack adapter assembly connector.

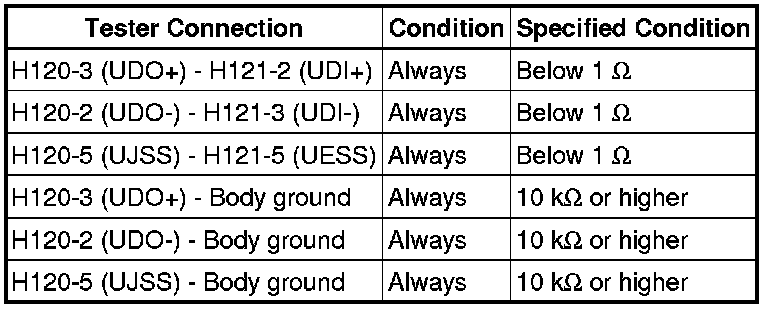

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

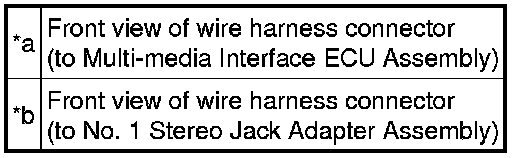

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
