Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedure to troubleshoot the rear view monitor system.
* *: Use the Techstream (w/ Navigation System (for HDD)).

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT AUXILIARY BATTERY VOLTAGE

(a) Measure the auxiliary battery voltage with the power switch off.

Standard Voltage:

11 to 14 V

If the voltage is below 11 V, replace or recharge the auxiliary battery before proceeding to the next step.

NEXT -- Continue to next step.

3. CUSTOMER PROBLEM ANALYSIS

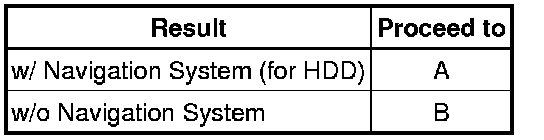

Result:





B -- Go to step 5
A -- Continue to next step.

4. CHECK AND CLEAR DTCs*

(a) Refer to DTC check/clear Navigation System (For HDD).

NEXT -- Continue to next step.

5. PROBLEM SYMPTOM CONFIRMATION

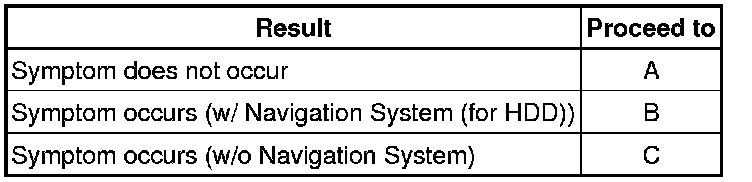

Result:





B -- Go to step 7

C -- Go to step 9
A -- Continue to next step.

6. SYMPTOM SIMULATION

Result:





B -- Go to step 9
A -- Continue to next step.

7. CHECK FOR DTC*

Result:





B -- Go to step 10
A -- Continue to next step.

8. CHECK IF SAME SYMPTOM APPEARS IN NAVIGATION SYSTEM (for HDD)

(a) Refer to the navigation system (for HDD) Problem Symptoms Table.

Result:





B -- GO TO NAVIGATION SYSTEM (FOLLOW NAVIGATION SYMPTOM CHART TO PERFORM TROUBLESHOOTING)
A -- Continue to next step.

9. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

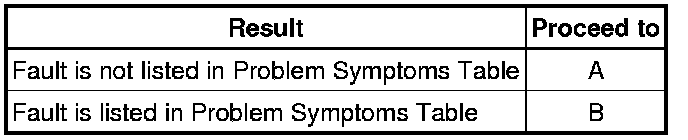

Result:





B -- Go to step 11
A -- Continue to next step.

10. BASED ON MALFUNCTION SYMPTOM, PERFORM TROUBLESHOOTING BELOW

(a) Terminals of ECU Rear View Monitor System (w/o Navigation System)

NEXT -- Continue to next step.

11. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

12. CONFIRMATION TEST

NEXT -- END
