U0146

P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: U0146: Lost Communication with Body ECU
U0146 - Lost Communication with Body ECU

DESCRIPTION

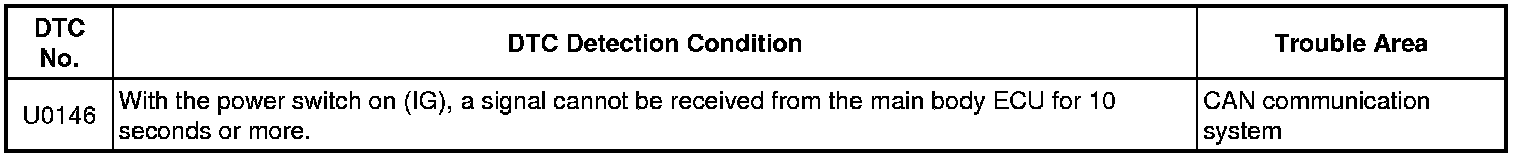

The transmission control ECU assembly receives signals from the main body ECU via CAN communication. When a CAN communication malfunction is detected, the transmission control ECU assembly stores this DTC.





INSPECTION PROCEDURE

PROCEDURE

1. GO TO CAN COMMUNICATION SYSTEM

(a) Troubleshoot the CAN communication system How to Proceed With Troubleshooting.

NEXT -- END
