HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0C30-390: Hybrid Battery Pack State of Charge High
P0C30-390 - Hybrid Battery Pack State of Charge High

DESCRIPTION

The Power management control ECU monitors its internal operation, it will set DTCs and perform fail-safe control when it detects the following malfunctions.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (HYBRID CONTROL)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check if DTCs are output.

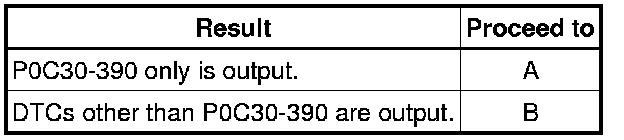

Result:





(e) Turn the power switch off.

B -- GO TO DTC CHART (HYBRID CONTROL SYSTEM) Hybrid Control System

A -- REPLACE POWER MANAGEMENT CONTROL ECU Components
