P0AFC-123 - Hybrid Battery Pack Sensor Module

HYBRID / BATTERY CONTROL: HYBRID BATTERY SYSTEM: P0AFC-123: Hybrid Battery Pack Sensor Module
P0AFC-123 - Hybrid Battery Pack Sensor Module

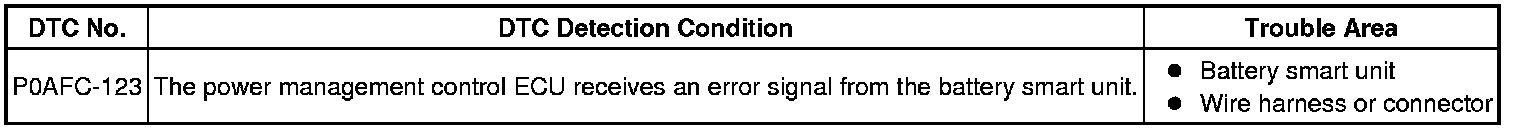

DESCRIPTION

- If the battery smart unit detects an internal malfunction, it sends an error signal to the power management control ECU. When the power management control ECU receives the error signal from the battery smart unit, the ECU warns the driver and performs fail-safe control.





MONITOR DESCRIPTION

If the battery smart unit detects an internal malfunction in the unit itself, the power management control ECU (HV CPU) will illuminate the MIL and set a DTC.

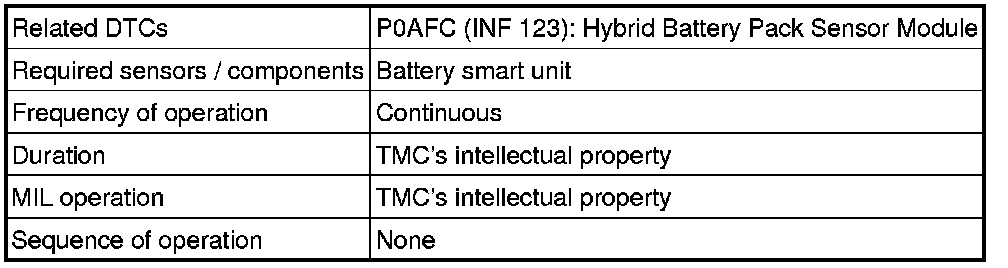

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the power switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4. Turn the power switch off.

5. Turn the power switch on (READY) and turn the Techstream on.

6. Perform the universal trip.

7. Enter the following menus: Powertrain / HV / Trouble Codes.

8. Check that permanent DTCs are cleared.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM





INSPECTION PROCEDURE

CAUTION:
- Before inspecting the high-voltage system, take safety precautions to prevent electrical shocks, such as wearing insulated gloves and removing the service plug grip. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work Hybrid Battery System.
HINT
At least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

HINT
After repairing, restart the system (turn the power switch on (READY)) and recheck for DTCs Hybrid Battery System.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (IGCT VOLTAGE)

CAUTION:
Be sure to wear insulated gloves.

(a) Check that the service plug grip is not installed.

NOTICE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





NOTICE:
- After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.
- Turning the power switch on (IG) with the service plug grip removed causes an interlock switch system DTC (P0A0D-350) to be set. Use the Techstream to clear the DTCs Hybrid Battery System.

Text in Illustration





(d) Turn the power switch off.

NG -- CHECK HARNESS AND CONNECTOR (GND - BODY GROUND)

OK -- REPLACE BATTERY SMART UNIT Components

2. CHECK HARNESS AND CONNECTOR (GND - BODY GROUND)

CAUTION:
Be sure to wear insulated gloves.

(a) Check that the service plug grip is not installed.

NOTICE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (IGCT NO. 2 FUSE - BATTERY SMART UNIT)
