P0A94-555 - DC / DC Converter Performance

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0A94-555: DC / DC Converter Performance
P0A94-555 - DC / DC Converter Performance

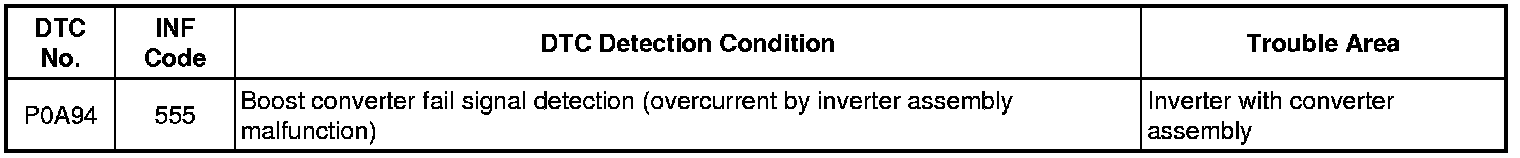

DESCRIPTION

For a description of the boost converter P0A94.

If a malfunction occurs in the boost converter, the MG ECU detects it and transmits this information to the power management control ECU (HV CPU).





MONITOR DESCRIPTION

If excessive amperage flows through the boost converter due to an internal short, the boost converter will transmit a boost converter fail signal to the MG ECU. Upon receiving this information, the power management control ECU (HV CPU) will illuminate the MIL and set a DTC.

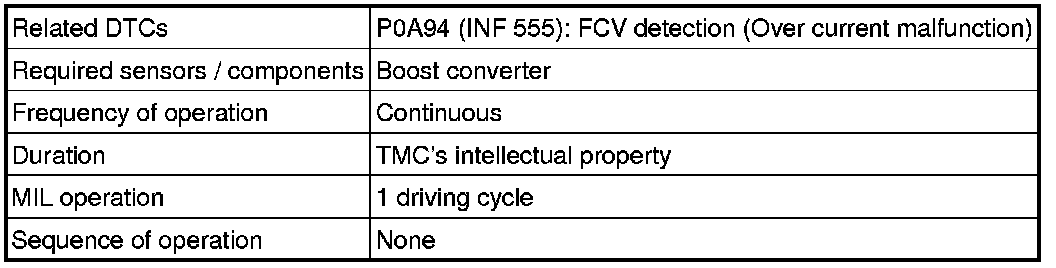

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

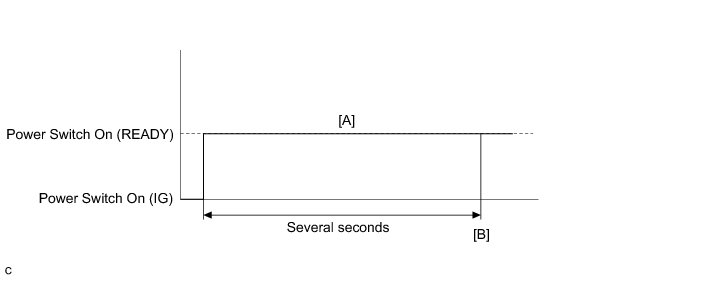

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the power switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4. Turn the power switch off.

5. Turn the power switch on (IG) and check that there are no abnormalities (abnormal sounds, coolant leaks, DTC output, etc).

6. Turn the power switch on (READY) and turn the Techstream on. [A]

7. With park (P) selected, wait for several seconds.

8. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes. [B]

9. Check that permanent DTCs are cleared.

10. If the permanent DTCs are not cleared, perform a universal trip, and then check for permanent DTCs again.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work Hybrid Control System: Precaution.
HINT
Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

PROCEDURE

1. CHECK DTC OUTPUT (HYBRID CONTROL)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check if DTCs are output.

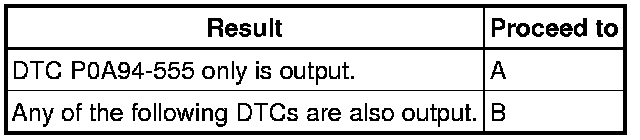

Result:









HINT
- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.

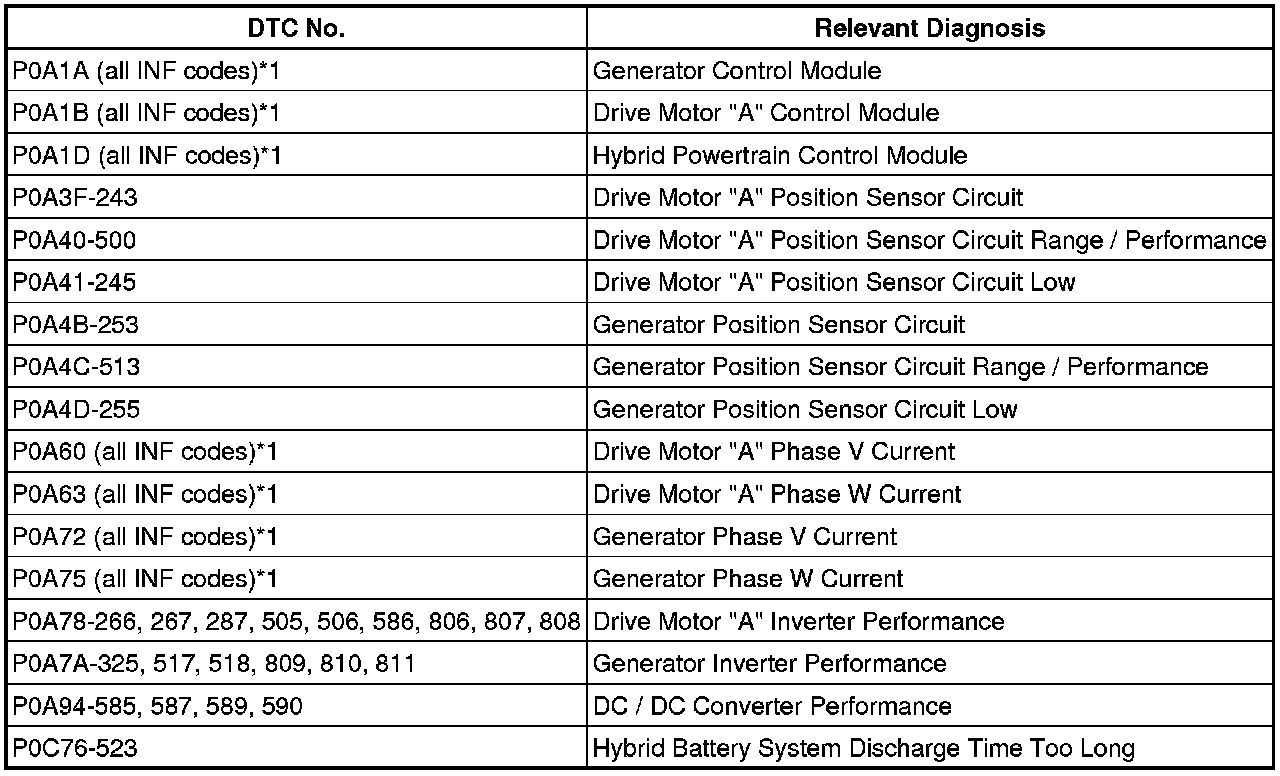

- P0A94-555 may be set due to a malfunction which also causes DTCs in the preceding table to be set. In this case, first troubleshoot the output DTCs in the preceding table. Then, perform a test to attempt to reproduce the problems, and check that no DTCs are output.

(e) Turn the power switch off.

B -- GO TO DTC CHART (HYBRID CONTROL SYSTEM) Hybrid Control System
A -- Continue to next step.

2. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR) P0A1A

NG -- CONNECT SECURELY

OK -- REPLACE INVERTER WITH CONVERTER ASSEMBLY Components
