P0A92-521 - Hybrid Generator Performance
HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0A92-521: Hybrid Generator Performance
P0A92-521 - Hybrid Generator Performance
DESCRIPTION
For a description of MG1 P0A90.
MONITOR DESCRIPTION
The MG ECU monitors MG1. If the MG ECU detects a malfunction of MG1, the power management control ECU (HV CPU) will illuminate the MIL and set a DTC.

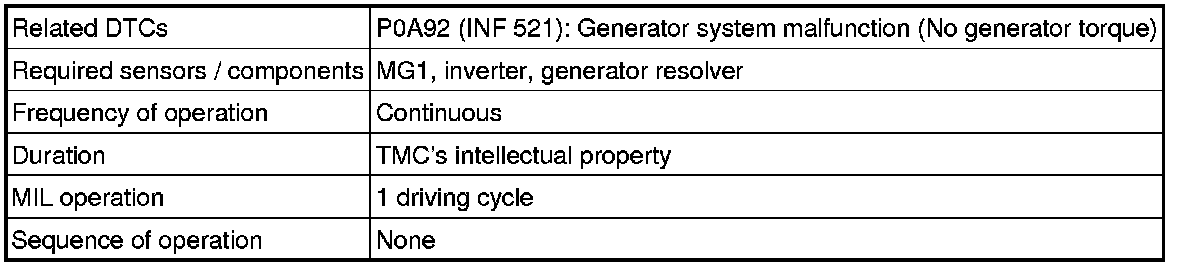

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
COMPONENT OPERATING RANGE
CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
4. Turn the power switch off.
5. Turn the power switch on (READY) and turn the Techstream on.
6. Slowly accelerate from a stop (0 mph (0 km/h)) to 25 mph (40 km/h) several times while using different acceleration patterns.
7. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
8. Check that permanent DTCs are cleared.
9. If the permanent DTCs are not cleared, perform the universal trip, and then check for permanent DTCs again.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
INSPECTION PROCEDURE
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work Hybrid Control System: Precaution.
HINT
Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.
NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.
PROCEDURE
1. CHECK DTC OUTPUT (HYBRID CONTROL)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.

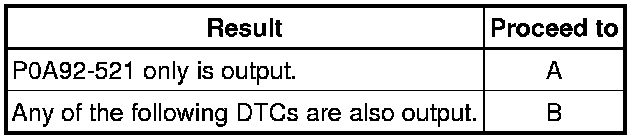

Result:
HINT

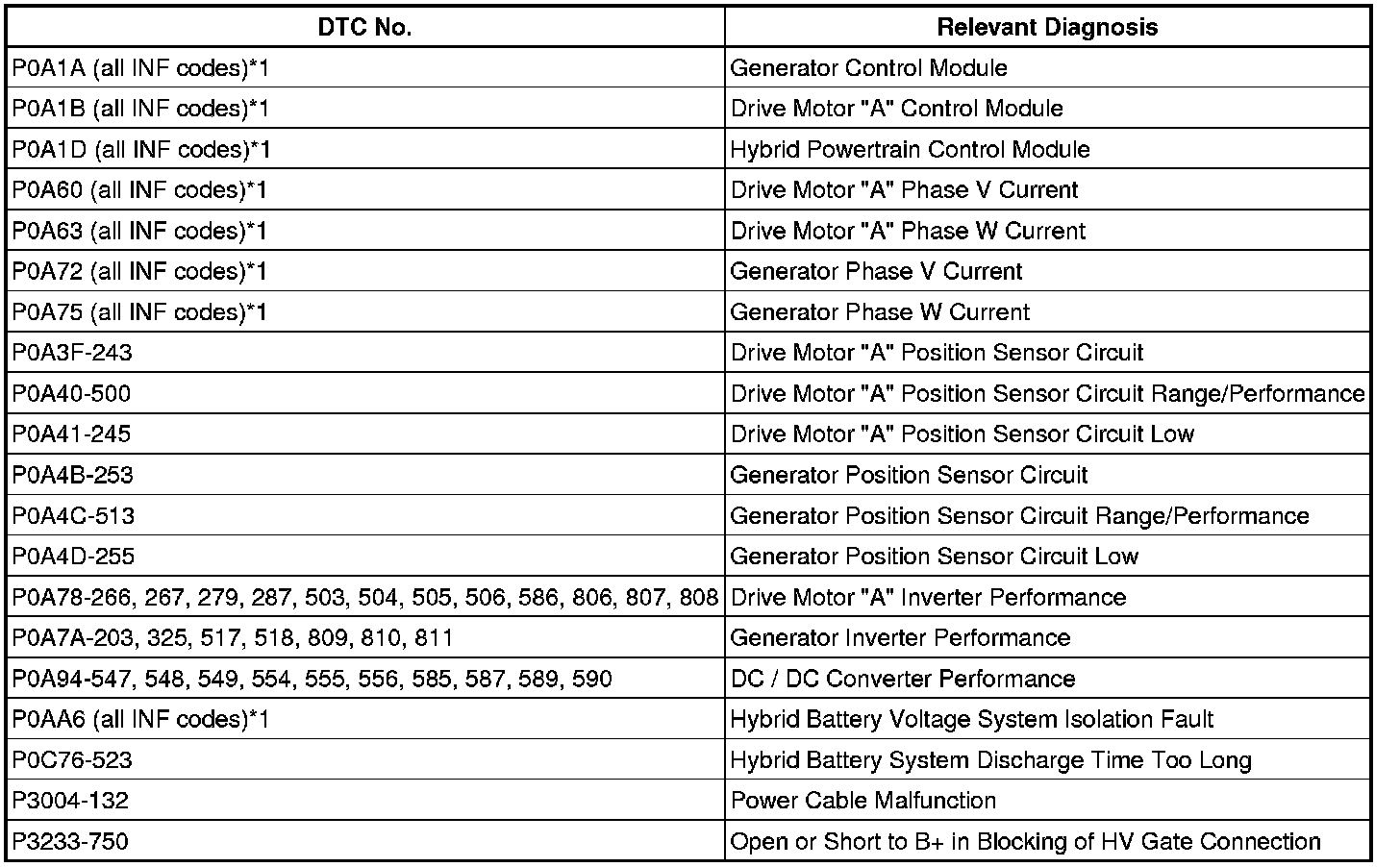

- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.
- P0A92-521 may be output due to a malfunction which causes the DTCs in the table above to be output. In this case, first troubleshoot the output DTCs in the table above. Then, perform a reproduction test to check that no DTCs are output.
(e) Turn the power switch off.
B -- GO TO DTC CHART (HYBRID CONTROL SYSTEM) Hybrid Control System
A -- Continue to next step.
2. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR) P0343
NG -- CONNECT SECURELY
OK -- Continue to next step.
3. CHECK INVERTER WITH CONVERTER ASSEMBLY (GENERATOR CABLE CONNECTION CONDITION) P0A78
C -- CONNECT SECURELY
B -- REPLACE MALFUNCTIONING PARTS
A -- Continue to next step.
4. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MG1) P0A78
NG -- CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (GENERATOR CABLE CONNECTION CONDITION)
OK -- REPLACE INVERTER WITH CONVERTER ASSEMBLY Components
5. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (GENERATOR CABLE CONNECTION CONDITION) P0A78
C -- CONNECT SECURELY
B -- REPLACE MALFUNCTIONING PARTS
A -- Continue to next step.
6. CHECK GENERATOR CABLE P0A78
NG -- REPLACE GENERATOR CABLE Components
OK -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY Components
