HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0A51-174: Drive Motor "A" Current Sensor Circuit
P0A51-174 - Drive Motor "A" Current Sensor Circuit

DESCRIPTION

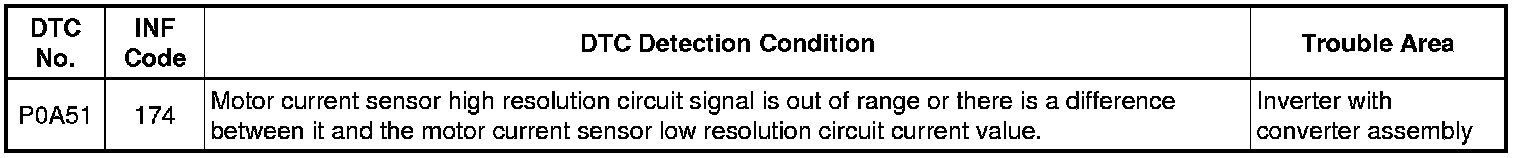

The MG ECU located in the inverter with converter assembly monitors its internal operation and it will set DTCs when it detects malfunctions.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (HYBRID CONTROL)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check if DTCs are output.

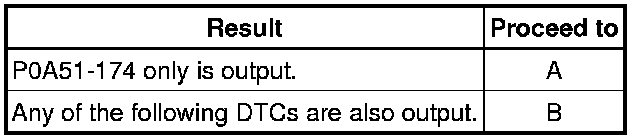

Result:









HINT
- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.

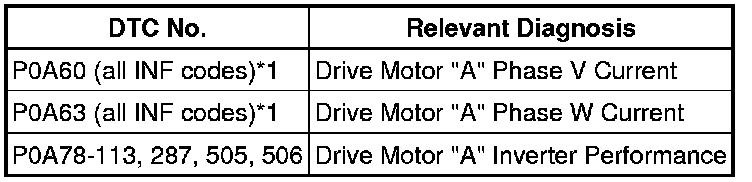

- P0A51-174 may be output due to a malfunction which causes the DTCs in the table above to be output. In this case, first troubleshoot the output DTCs in the table above. Then, perform a reproduction test to check that no DTCs are output.

(e) Turn the power switch off.

B -- GO TO DTC CHART (HYBRID CONTROL SYSTEM) Hybrid Control System
A -- Continue to next step.

2. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR) P0343

NG -- CONNECT SECURELY

OK -- REPLACE INVERTER WITH CONVERTER ASSEMBLY Components
