P0571

CRUISE CONTROL: CRUISE CONTROL SYSTEM: P0571: Brake Switch "A" Circuit

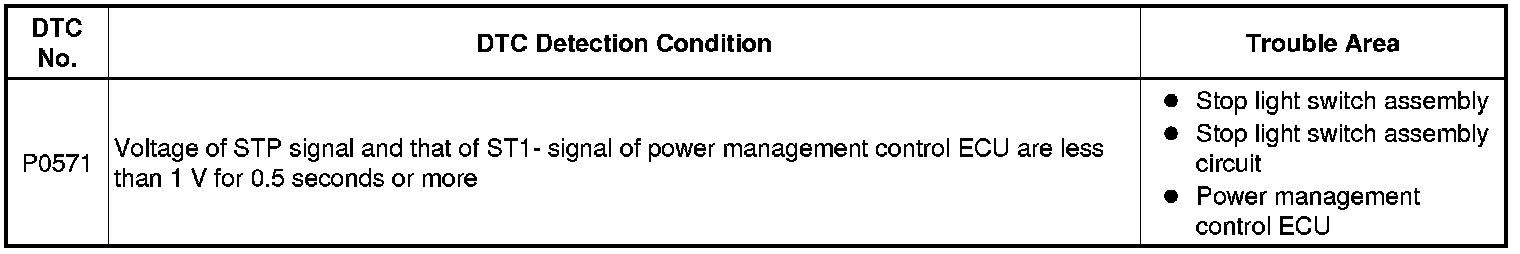

P0571 - Brake Switch "A" Circuit

DESCRIPTION

When the brake pedal is depressed, the stop light switch assembly sends a signal to the power management control ECU. When the power management control ECU receives this signal, it cancels the cruise control. The fail-safe function operates to enable normal driving even if there is a malfunction in the stop light signal circuit. Cruise control cancellation occurs when voltage is applied to terminal STP. When the brake is applied, voltage is normally applied to terminal STP of the power management control ECU through the STOP fuse and the stop light switch assembly, and the power management control ECU turns the cruise control off.

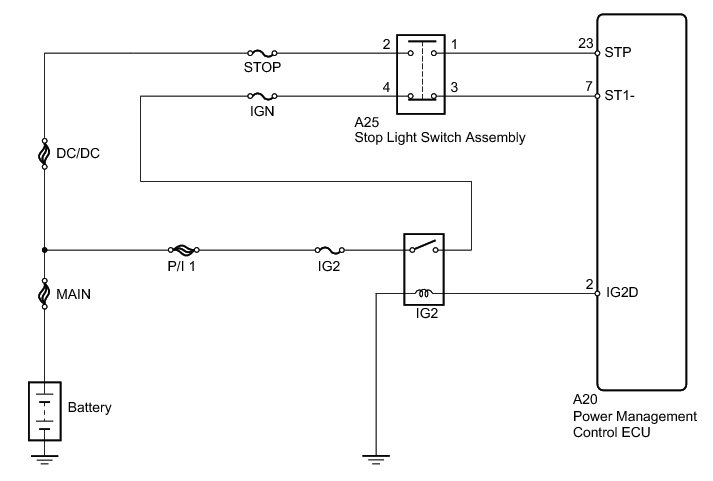

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. INSPECT STOP LIGHT SWITCH ASSEMBLY (POWER SOURCE)

(a) Disconnect the stop light switch assembly connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





(c) Reconnect the stop light switch assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - BATTERY)
OK -- Continue to next step.

2. INSPECT STOP LIGHT SWITCH ASSEMBLY (POWER SOURCE)

(a) Disconnect the stop light switch assembly connector.





(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





(d) Reconnect the stop light switch assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - IG2 RELAY)
OK -- Continue to next step.

3. INSPECT STOP LIGHT SWITCH ASSEMBLY

(a) Remove the stop light switch assembly Removal.





(b) Measure the resistance according to the value(s) in the table below.

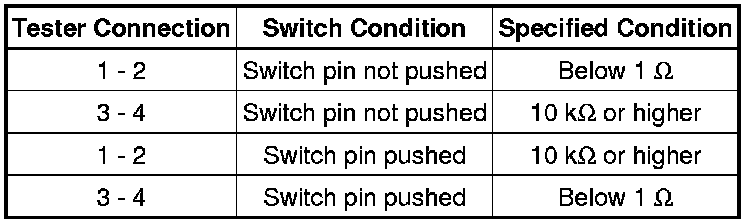

Standard Resistance:

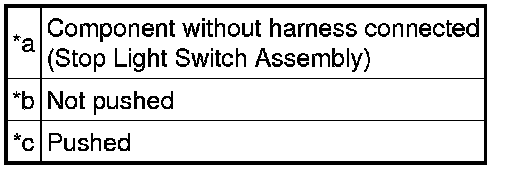

Text in Illustration





(c) Reinstall the stop light switch assembly Installation.

NG -- REPLACE STOP LIGHT SWITCH ASSEMBLY Removal
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - STOP LIGHT SWITCH ASSEMBLY)

(a) Disconnect the power management control ECU connector.

(b) Disconnect the stop light switch assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

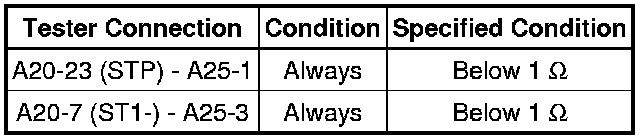

Standard Resistance (Check for Open):

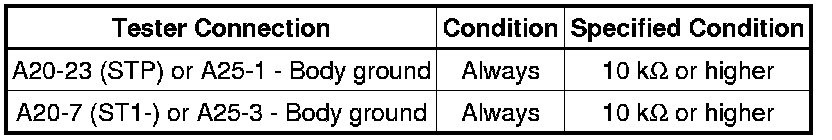

Standard Resistance (Check for Short):





(d) Reconnect the stop light switch assembly connector.

(e) Reconnect the power management control ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER MANAGEMENT CONTROL ECU - STOP LIGHT SWITCH ASSEMBLY)

OK -- REPLACE POWER MANAGEMENT CONTROL ECU Removal
