2ZR-FXE ENGINE CONTROL: SFI SYSTEM: P0443: Evaporative Emission Control System Purge Control Valve Circuit
P0443 - Evaporative Emission Control System Purge Control Valve Circuit

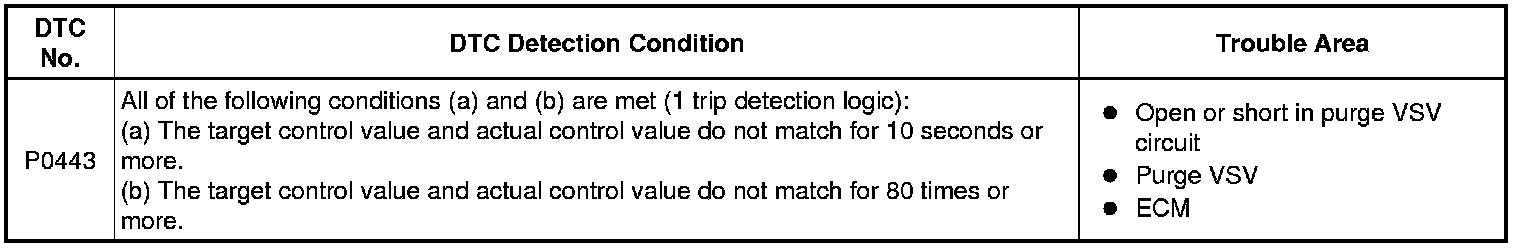

DESCRIPTION

HINT
This DTC P0443 is applicable to Mexico models only.

To reduce hydrocarbons (HC) emissions, evaporated fuel from the fuel tank is routed through the canister to the intake manifold for combustion in the cylinders.

The ECM changes the duty signal to the purge VSV so that the intake quantity of hydrocarbons (HC) emissions is appropriate for the driving conditions (engine load, engine speed, vehicle speed, etc.) after the engine is warmed up.

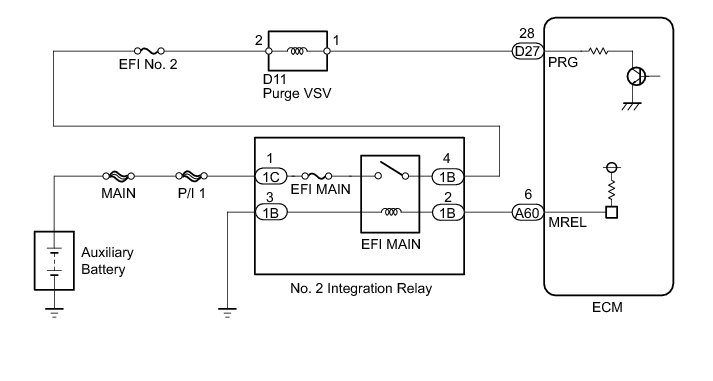

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (PURGE VSV)

(a) Connect the Techstream to the DLC3.





(b) Remove the canister side vacuum hose from the purge VSV.

(c) Turn the power switch on (IG) and turn the Techstream on.

(d) Put the engine in inspection mode (maintenance mode) Component Tests and General Diagnostics.

(e) Start the engine.

(f) Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for EVAP Control.

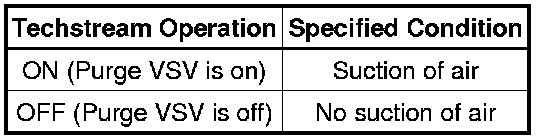

(g) Check if air is sucked into the port when operating the purge VSV using the Techstream.

OK





NG -- INSPECT PURGE VSV

OK -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems

2. INSPECT PURGE VSV

(a) Inspect the purge VSV Testing and Inspection.

NG -- REPLACE PURGE VSV Removal
OK -- Continue to next step.

3. INSPECT PURGE VSV (POWER SOURCE)

(a) Disconnect the purge VSV connector.





(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (PURGE VSV - EFI MAIN RELAY)
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)

(a) Disconnect the purge VSV connector.

(b) Disconnect the ECM connector.

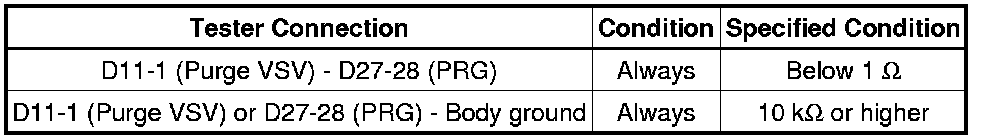

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal
