DTC 63-41

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System): 63-41,63-42: Wrong Disc
63-42 - Disc cannot be Read

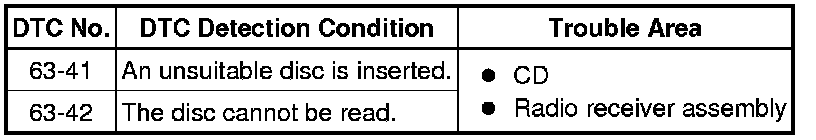

DESCRIPTION





INSPECTION PROCEDURE

NOTICE:
After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, XM radio ID registration is necessary (w/ SDARS System).

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc

NG -- CHANGE DISC
OK -- Continue to next step.

2. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.

3. CLEAR DTC

(a) Clear the DTCs Audio and Visual System (w/o Navigation System).

NEXT -- Continue to next step.

4. RECHECK FOR DTC

(a) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE DISC AND RECHECK

OK -- END

5. REPLACE DISC AND RECHECK

(a) Replace the disc and recheck.

(1) Replace the disc with a known good one.

(2) Clear the DTCs Audio and Visual System (w/o Navigation System).

(3) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
