Electronically Controlled Brake System

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1365/54: Accumulator Pressure Sensor Malfunction
C1365/54 - Accumulator Pressure Sensor Malfunction

DESCRIPTION

The accumulator pressure sensor is built into the brake actuator.

The skid control ECU detects the accumulator pressure from the data sent from the accumulator pressure sensor, and then starts and stops the pump motor by operating the motor relay.

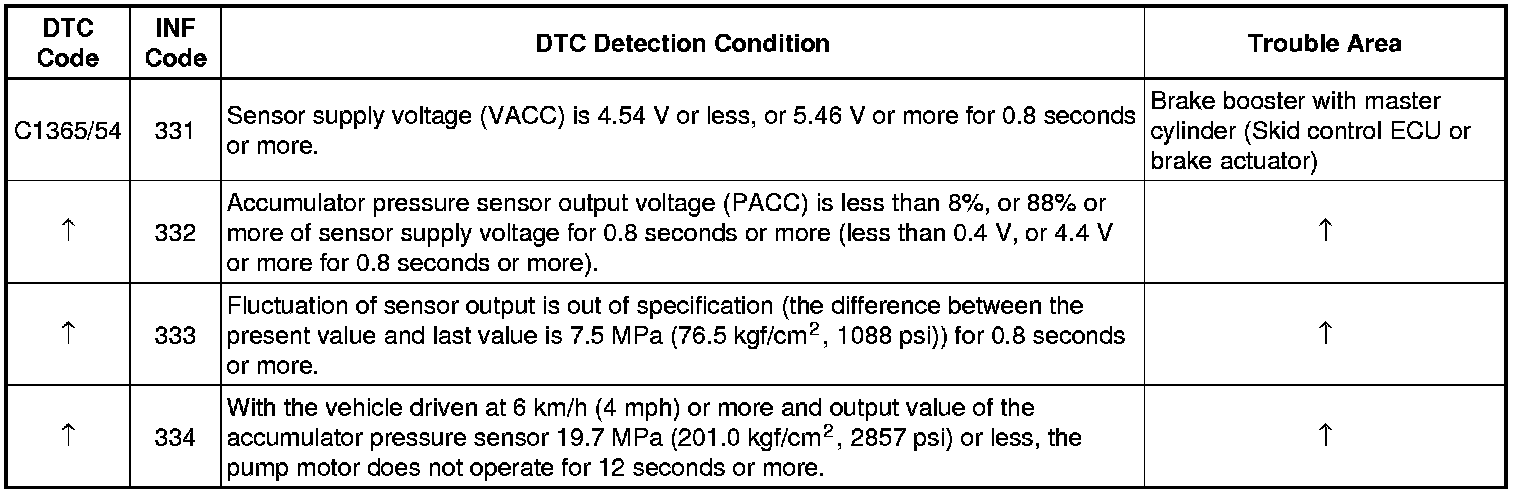

DTCs may be output if the accumulator pressure drops due to frequent braking (this is not a malfunction).





INSPECTION PROCEDURE

NOTICE:
When replacing the brake booster with master cylinder (skid control ECU or brake actuator), perform initialization and calibration of the linear solenoid valve Initialization.

PROCEDURE

1. READ VALUE USING TECHSTREAM (ACCUMULATOR PRESSURE SENSOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

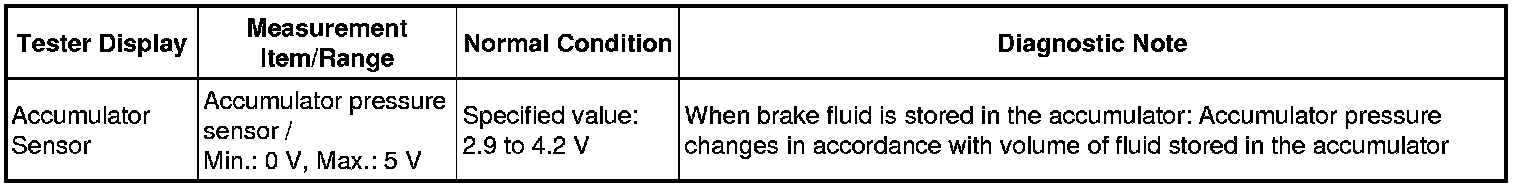

(c) Select the Data List on the Techstream Data List / Active Test.

ABS/VSC/TRAC





(d) Wait for 30 seconds without depressing the brake pedal.

(e) Check that the accumulator pressure sensor output values change is within the specified range.

OK:

Accumulator pressure sensor output values change is within 0.55 V.

NG -- REPLACE BRAKE BOOSTER WITH MASTER CYLINDER Removal
OK -- Continue to next step.

2. RECONFIRM DTC

(a) Turn the power switch off.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Perform a road test.

(d) Check if the same DTC is recorded Reading and Clearing Diagnostic Trouble Codes.

Result:





B -- REPLACE BRAKE BOOSTER WITH MASTER CYLINDER Removal

A -- CHECK FOR INTERMITTENT PROBLEMS How To Proceed With Troubleshooting
