C2315

P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: C2315: HV System
C2315 - HV System

DESCRIPTION

The transmission control ECU assembly receives a P position switch signal from the power management control ECU (HV CPU) and activates the parking lock motor by controlling current, causing the parking lock mechanism to switch. When the power management control ECU (HV CPU) detects a malfunction with the P position switch or P position signal, it sends an information signal to the transmission control ECU assembly. After receiving this signal, the transmission control ECU assembly stores this DTC.

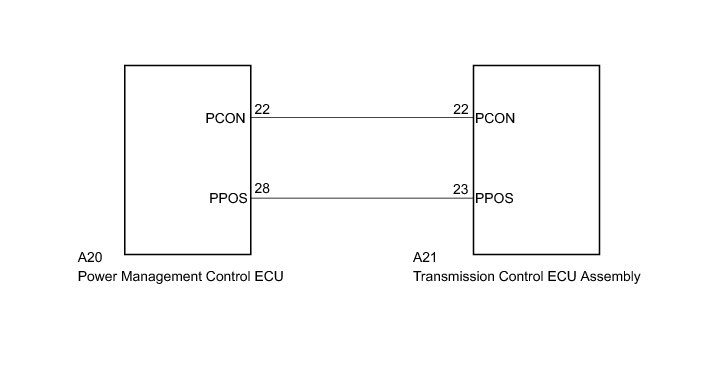

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (HYBRID CONTROL)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

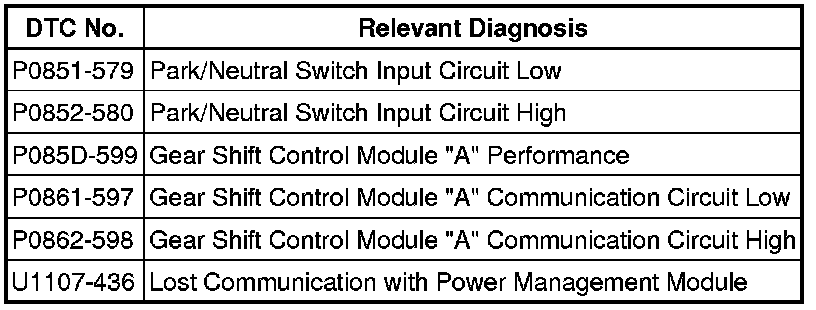

(d) Check if DTCs are output.

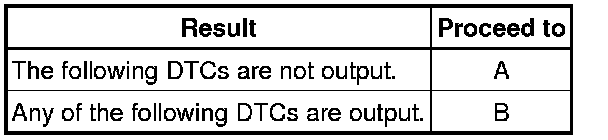

Result:









(e) Turn the power switch off.

B -- GO TO DTC CHART (HYBRID CONTROL SYSTEM) Hybrid Control System
A -- Continue to next step.

2. CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(d) Read and record the DTCs and freeze frame data.

(e) Clear DTCs and freeze frame data.

(f) Turn the power switch off.

NEXT -- Continue to next step.

3. CHECK DTC OUTPUT (HEALTH CHECK)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Wait for 2 seconds or more.

(d) Enter the following menus: System Select / Health Check.

(e) Check if DTCs are output.

Result:





HINT
DTC C2315 only may be output when the P position switch (transmission shift main switch) connector is disconnected and reconnected.

(f) Turn the power switch off.

C -- GO TO DTC CHART

B -- REPLACE POWER MANAGEMENT CONTROL ECU Components

A -- END
