C2307

P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: C2307: Power Supply
C2307 - Power Supply

DESCRIPTION

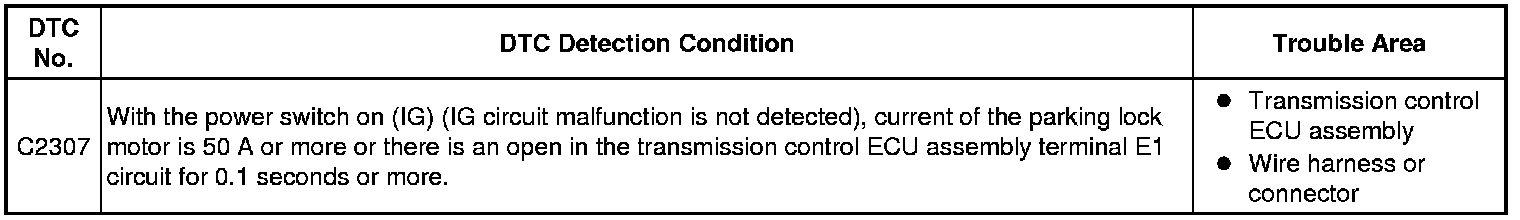

The shift control actuator assembly consists of a parking lock motor and rotation angle sensor. The transmission control ECU assembly receives a P position switch signal from the power management control ECU (HV CPU) and activates the parking lock motor by controlling current, causing the parking lock mechanism to switch. The transmission control ECU assembly stores this DTC when it detects a malfunction in the parking lock motor system and/or the ground circuit.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
It may not be possible to clear the following DTCs using the Techstream: DTC C2300 (Actuator System Malfunction), C2301 (Shift Changing Time Malfunction), C2303 (Short in Power Source Relay Circuit), C2304 (Open or Short Circuit in U Phase), C2305 (Open or Short Circuit in V Phase), C2306 (Open or Short Circuit in W Phase), C2307 (Power Supply) and C2309 (Open in B+ Circuit). In such cases, disconnect the P CON MAIN fuse and wait for at least 60 seconds to clear the DTCs after the repair.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL ECU ASSEMBLY - BODY GROUND)

(a) Disconnect connector A22 from the transmission control ECU assembly.

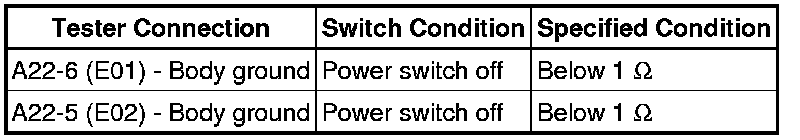

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance (Check for Open):





Text in Illustration





(c) Connect the transmission control ECU assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL ECU ASSEMBLY - SHIFT CONTROL ACTUATOR) C2303

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE TRANSMISSION CONTROL ECU ASSEMBLY Components
