TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING SYSTEM: C2111/11-C2114/14: Transmitter ID1 Operation Stop


DESCRIPTION

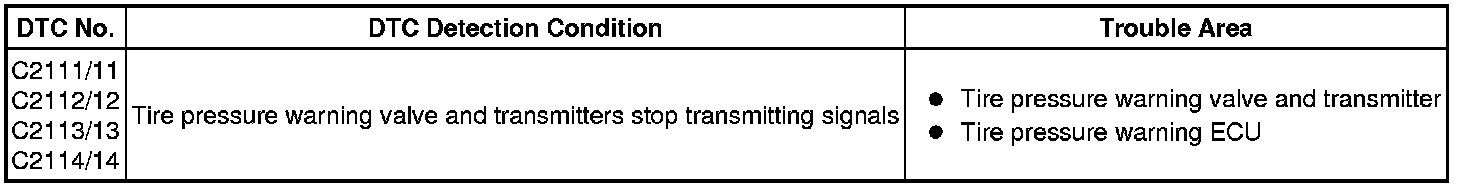

The tire pressure warning valve and transmitters that are installed in the tire and wheel assemblies measure the tire pressures. The measured values are transmitted to the tire pressure warning antenna and receiver on the body as radio waves and then sent to the tire pressure warning ECU. The ECU compares the measured air pressure values with the air pressure threshold. When the measured air pressure value is less than this threshold, the warning light in the combination meter comes on. The tire pressure warning ECU stores a DTC when the tire pressure warning valve and transmitter stops transmitting signals. At this time, forcibly transmit the signals by releasing the tire pressure rapidly. The stored DTC is cleared when the signal transmission is resumed.





HINT
It is necessary to perform the procedure to identify the tire pressure warning valve and transmitter that is malfunctioning because it cannot be identified by the output DTC.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM FORCED TRANSMISSION OF TRANSMITTER ID OF ALL WHEELS

(a) Set the tire pressure to the specified value Component Tests and General Diagnostics.

(b) Turn the power switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the power switch on (IG).

(e) Turn the Techstream on.

(f) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

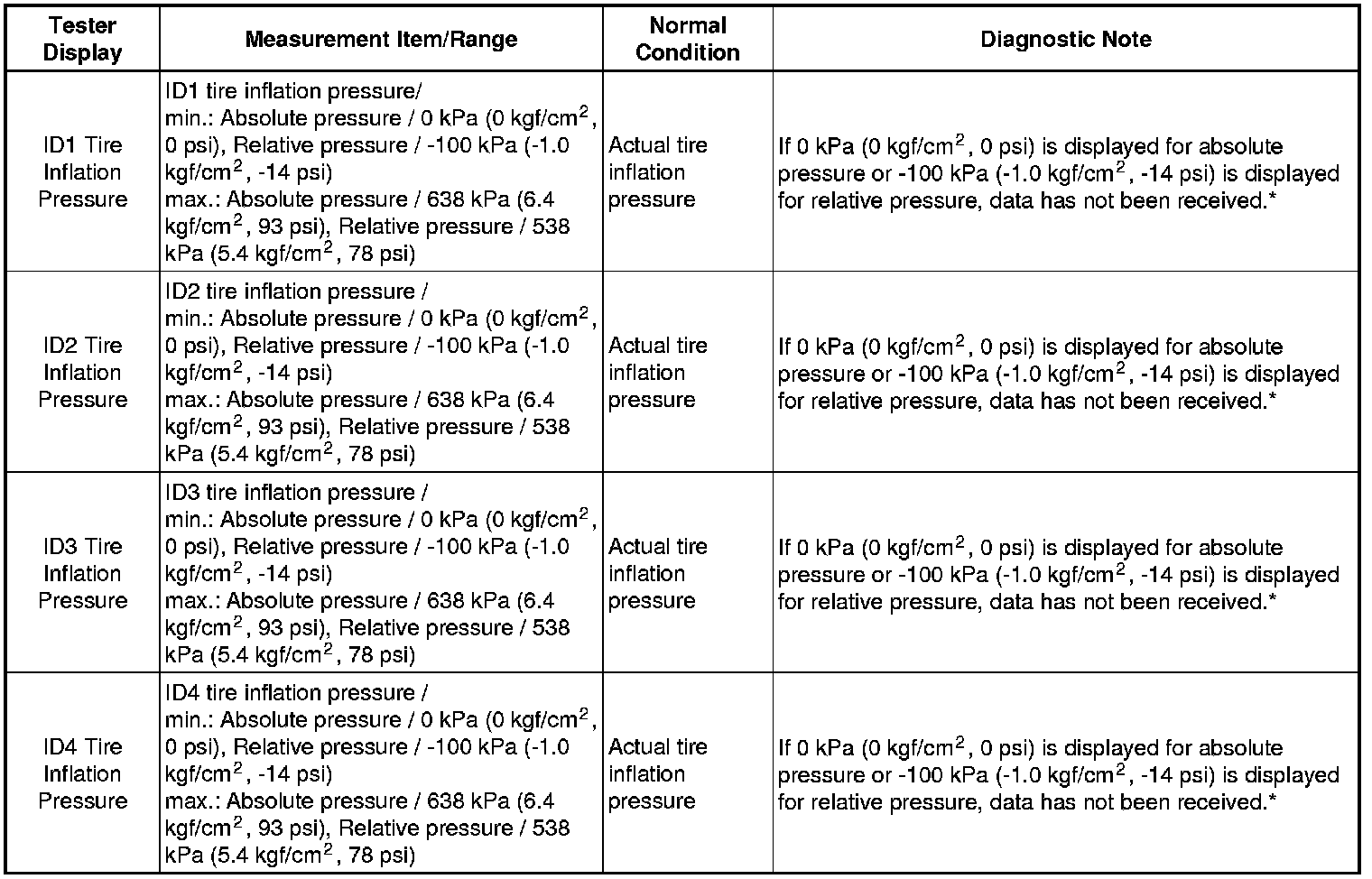

(g) Check the values by referring to the table below.

Tire Pressure Monitor





HINT
*: It may take a few minutes until the values are displayed. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2124/24 Transmitter ID4 not Received (Test Mode DTC) - Tire Pressure Monitoring.

(h) Rapidly release the tire pressure for each wheel at least 40 kPa (0.4 kgf/cm2, 5.8 psi) within 30 seconds.

(1) Check that each tire pressure data displayed on the Techstream has changed.

OK:

Each tire pressure data displayed on the Techstream will change to the value of the tire pressure.

NOTICE:
- It may take a few minutes to display the updated tire pressure data.
- When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck the data.

(2) After confirming that all of the tire pressure data displayed on the Techstream has changed, set the tire pressure to the appropriate specified values.

HINT
If the tire pressure data displayed on the Techstream has not changed after rechecking, inspect for another problem Transmitter ID4 not Received (Test Mode DTC) - Tire Pressure Monitoring.

NG -- GO TO TRANSMITTER AND RECEIVER INSPECTION PROCEDURE Transmitter ID4 not Received (Test Mode DTC) - Tire Pressure Monitoring

OK -- END
