C1626

PARK ASSIST / MONITORING: PARKING ASSIST MONITOR SYSTEM: C1626: Steering Angle Sensor Failure
C1626 - Steering Angle Sensor Failure

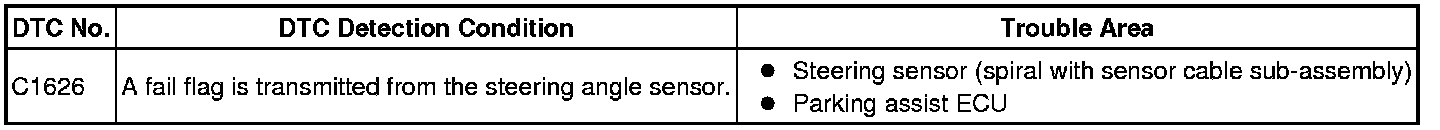

DESCRIPTION

This DTC is stored if the parking assist ECU receives a signal via CAN communication from the spiral with sensor cable sub-assembly that indicates an internal malfunction.





INSPECTION PROCEDURE

NOTICE:
- When "System initializing" is displayed on the multi-display after disconnecting the cable from the negative (-) auxiliary battery terminal, correct the steering angle neutral point Initialization.
- Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed Calibration.
- Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. REPLACE SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY

(a) Replace the spiral with sensor cable sub-assembly Removal.

NEXT -- Continue to next step.

2. CHECK DTC OUTPUT

(a) Clear the DTCs Parking Assist Monitor System.

(b) Check for DTCs Parking Assist Monitor System.

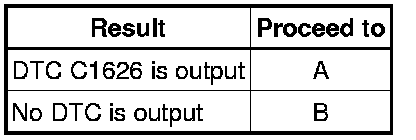

Result:





B -- END

A -- REPLACE PARKING ASSIST ECU Removal
