C1625

PARK ASSIST / MONITORING: PARKING ASSIST MONITOR SYSTEM: C1625: Open or Short in Steering Angle Sensor +B
C1625 - Open or Short in Steering Angle Sensor +B

DESCRIPTION

This DTC is stored if the parking assist ECU receives a signal via CAN communication from the spiral with sensor cable sub-assembly that indicates a power supply problem.

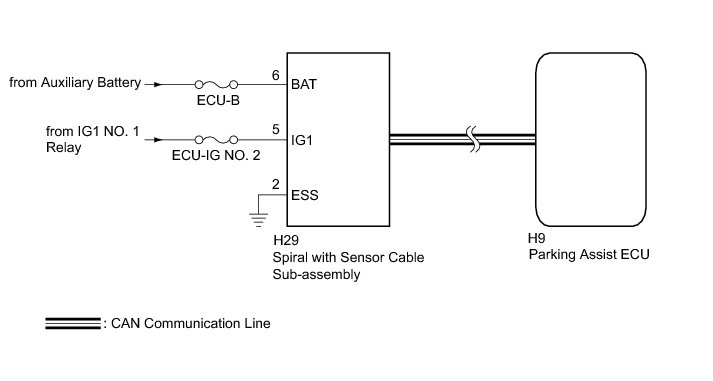

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
- When "System initializing" is displayed on the multi-display after disconnecting the cable from the negative (-) auxiliary battery terminal, correct the steering angle neutral point Initialization.
- Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed Calibration.
- Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY POWER SUPPLY)

(a) Disconnect the H29 connector from the spiral with sensor cable sub-assembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

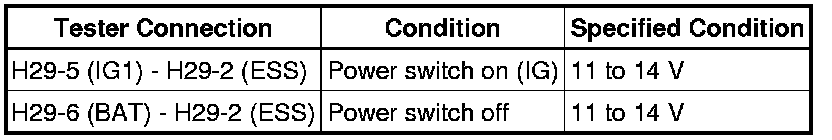

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY Removal
