B27A7 - Open in Inside Luggage Compartment Electrical Key Oscillator Circuit
DESCRIPTION

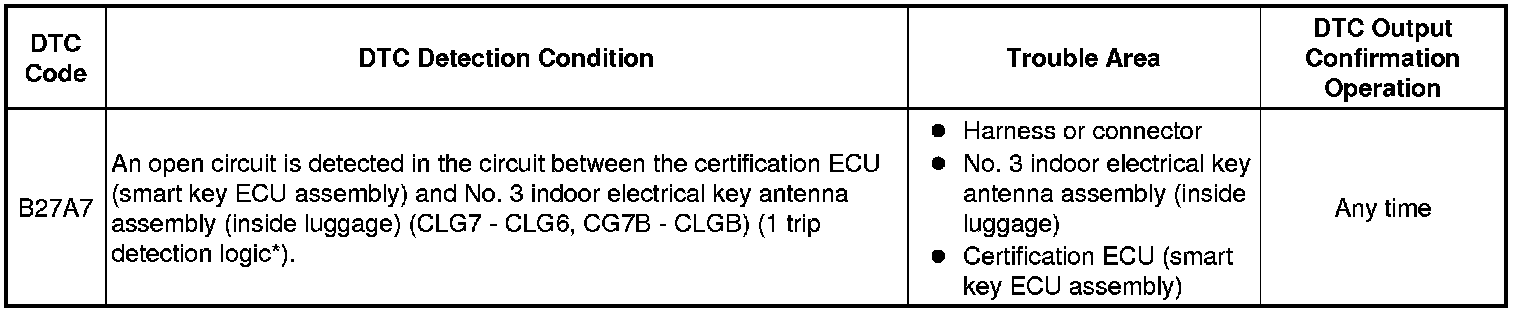

The certification ECU (smart key ECU assembly) generates a request signal and transmits the signal to the No. 3 indoor electrical key antenna assembly (inside luggage). For the No. 3 indoor electrical key antenna assembly (inside luggage) to detect when the key is inside the luggage compartment, the signal from the certification ECU (smart key ECU assembly) requesting a response from the key is transmitted inside the luggage compartment. DTC B27A7 is stored by the certification ECU (smart key ECU assembly) when an open circuit is detected between the certification ECU (smart key ECU assembly) and No. 3 indoor electrical key antenna assembly (inside luggage) (between terminals CLG7 and CLG6, or terminals CG7B and CLGB).
* *: Only output while a malfunction is present.

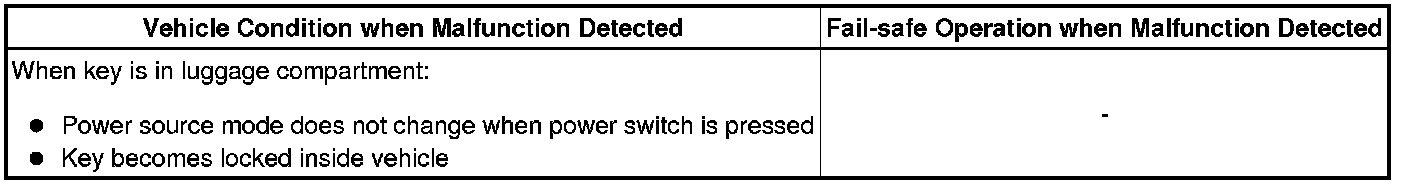

Vehicle Condition and Fail-safe Operation when Malfunction Detected
Related Data List and Active Test

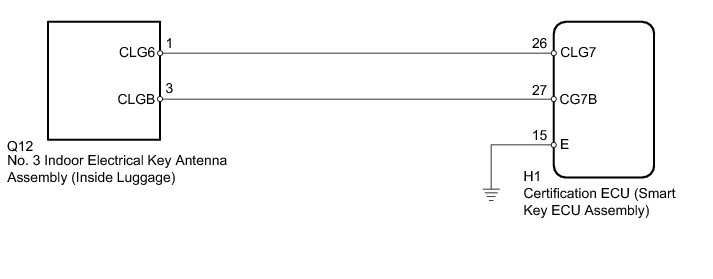

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
* The smart access system with push-button start (for Entry Function) uses a multiplex communication system (LIN communication system) and the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting How To Proceed With Troubleshooting. Troubleshoot the smart access system with push-button start (for Entry Function) after confirming that the communication systems are functioning properly.
* When using the Techstream with the power switch off to troubleshoot:
Connect the Techstream to the DLC3 and turn a courtesy light switch on and off at 1.5-second intervals until communication between the Techstream and vehicle begins.
* Before replacing the certification ECU (smart key ECU assembly), refer to the smart access system with push-button start (for Entry Function) Smart Access System With Push-Button Start (For Entry Function).
* No. 3 indoor electrical key antenna assembly (inside luggage) has an antenna coil between CLG6 and CLGB terminals.
PROCEDURE
1. CHECK CONNECTOR CONNECTION
(a) Turn the power switch off.
(b) Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 3 indoor electrical key antenna assembly (inside luggage).
OK:
Connectors are properly connected.
NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - NO. 3 INDOOR ELECTRICAL KEY ANTENNA)
(a) Disconnect the H1 certification ECU (smart key ECU assembly) connector.
(b) Disconnect the Q12 No. 3 indoor electrical key antenna assembly (inside luggage) connector.

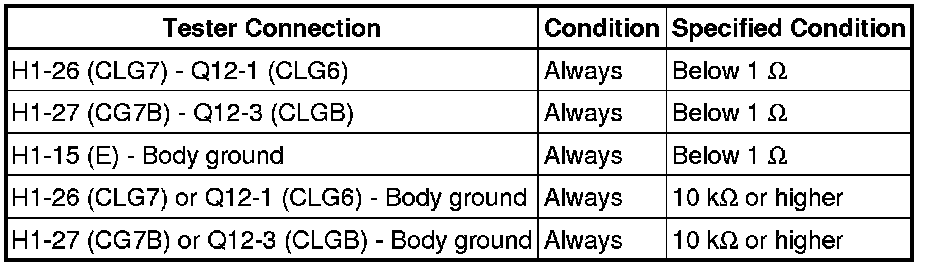

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 3 INDOOR ELECTRICAL KEY ANTENNA [INSIDE LUGGAGE])
(a) Connect the H1 certification ECU (smart key ECU assembly) connector.
Text in Illustration
(b) Connect the Q12 No. 3 indoor electrical key antenna assembly (inside luggage) connector.

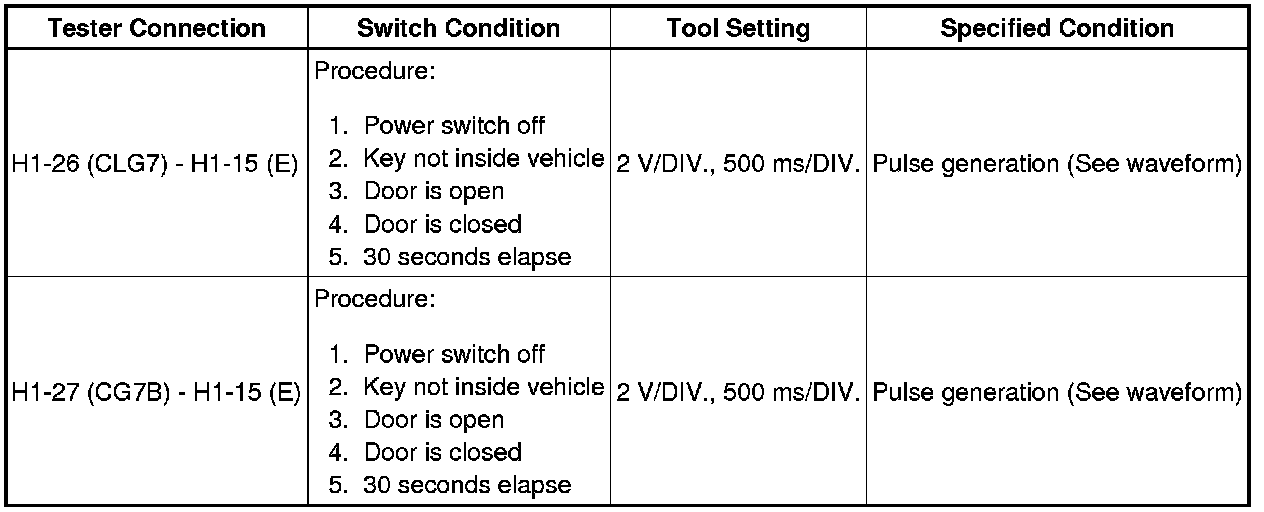

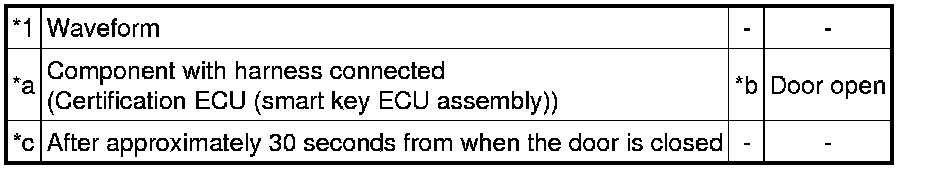

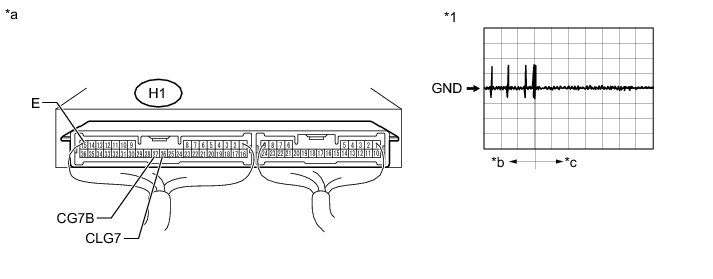

(c) Using an oscilloscope, check the waveform.
OK:
NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Removal
OK -- Continue to next step.
4. REPLACE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE)
(a) Temporarily replace the No. 3 indoor electrical key antenna assembly (inside luggage) with a new or normally functioning one Removal.
NEXT -- Continue to next step.
5. CLEAR DTC
(a) Clear the DTCs Smart Access System With Push-Button Start (For Entry Function).
NEXT -- Continue to next step.
6. CHECK FOR DTC
(a) Check for DTCs Smart Access System With Push-Button Start (For Entry Function).
OK:
DTC B27A7 is not output.
NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Removal
OK -- END (NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY WAS DEFECTIVE)
