SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Memory): B2653: Lifter Sensor Malfunction
B2653 - Lifter Sensor Malfunction

DESCRIPTION

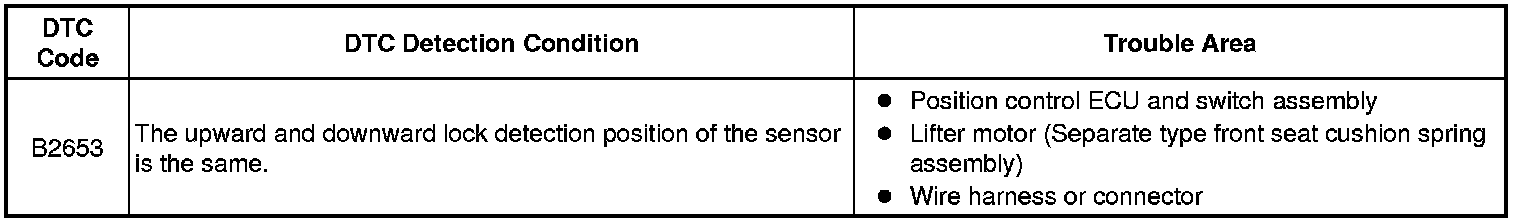

When the position control ECU and switch assembly does not receive a sensor signal despite upward or downward movement of the seat by power seat motor operation, this DTC is stored.

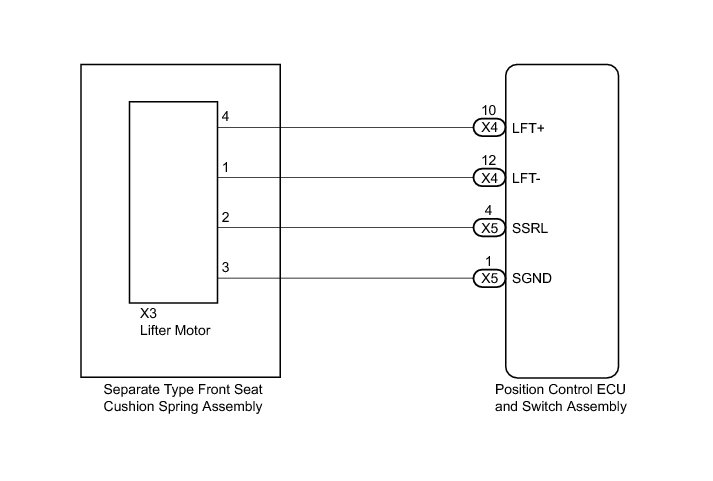

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (LIFTER MOTOR)

(a) Turn the power switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the power switch on (IG).

(d) Turn the Techstream on.

(e) Enter the following menus: Body Electrical / Driver Seat / Active Test.

(f) Perform the Active Test according to the display on the Techstream.

Driver Seat (Position Control ECU and Switch Assembly)





OK:

Motor operates normally.

NG -- INSPECT LIFTER MOTOR (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY)
OK -- Continue to next step.

2. CHECK POSITION CONTROL ECU AND SWITCH ASSEMBLY (LIFTER MOTOR CIRCUIT)

(a) Disconnect the X3 lifter motor connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY - LIFTER MOTOR)
OK -- Continue to next step.

3. CHECK LIFTER MOTOR (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY)

(a) Reconnect the X3 lifter motor connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPLACE LIFTER MOTOR (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY) Removal

OK -- REPLACE POSITION CONTROL ECU AND SWITCH ASSEMBLY Removal

4. CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY - LIFTER MOTOR)

(a) Disconnect the X5 position control ECU and switch assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POSITION CONTROL ECU AND SWITCH ASSEMBLY Removal

5. INSPECT LIFTER MOTOR (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY)

(a) Disconnect the X3 lifter motor connector.

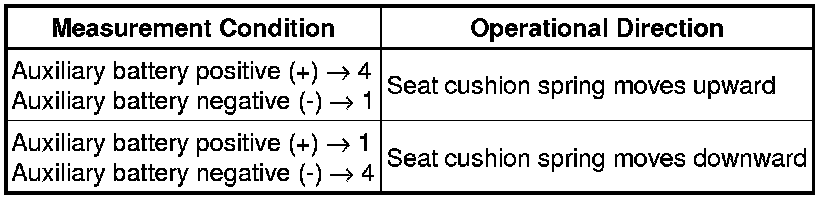

(b) Check if the seat cushion spring moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.

OK:





Text in Illustration





NG -- REPLACE LIFTER MOTOR (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY) Removal
OK -- Continue to next step.

6. CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY - LIFTER MOTOR)

(a) Disconnect the X4 position control ECU and switch assembly connector.

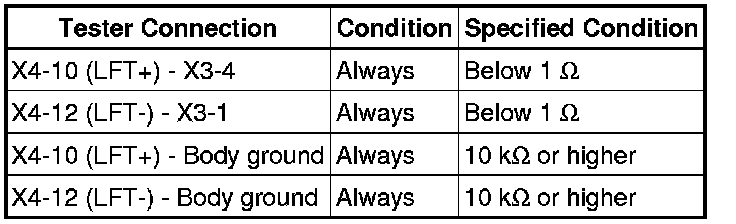

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POSITION CONTROL ECU AND SWITCH ASSEMBLY Removal
