B2275

THEFT DETERRENT / KEYLESS ENTRY: SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function): B2275: STSW Monitor Malfunction
B2275 - STSW Monitor Malfunction

DESCRIPTION

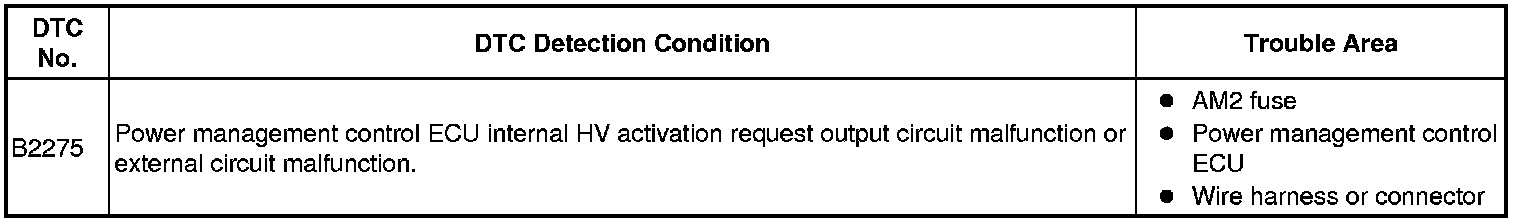

This DTC is stored when a malfunction is detected in the starter circuit inside the power management control ECU.

HINT
* When the power management control ECU is replaced with a new one and the cable is connected to the negative (-) auxiliary battery terminal, the power source mode changes to on (IG).
* When the auxiliary battery cable is disconnected and reconnected, the power source returns to the mode it was in before the auxiliary battery cable was disconnected.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* When using the Techstream with the power switch off, perform either of the following: 1) Turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and vehicle begins, or 2) connect the Techstream to the vehicle, select the vehicle type under manual mode, and then enter the following menus:
for Hybrid Control: Powertrain / Hybrid Control / Trouble Codes.
for Smart Access: Body Electrical / Smart Access / Trouble Codes.
* The smart access system with push-button start uses multiplex communication. First perform the inspections in "How to Proceed with Troubleshooting" to confirm that there are no communication malfunctions before proceeding with troubleshooting How to Proceed With Troubleshooting.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.
* After performing repairs, perform the operation that fulfills the DTC output confirmation operation, and then confirm that no DTCs are output again.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (AUXILIARY BATTERY - POWER MANAGEMENT CONTROL ECU) B2271

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND) B2271

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK FOR DTC

(a) Clear the DTCs Smart Access System With Push-Button Start (For Start Function).

(b) Turn the power switch on (IG).

(c) After 25 seconds have elapsed, check if the DTC has been set again.

OK:

DTC B2275 is not output.

NG -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

OK -- REPLACE POWER MANAGEMENT CONTROL ECU Removal
