B2060

PRE-COLLISION: PRE-COLLISION SYSTEM: B2060: ABS Malfunction
B2060 - ABS Malfunction

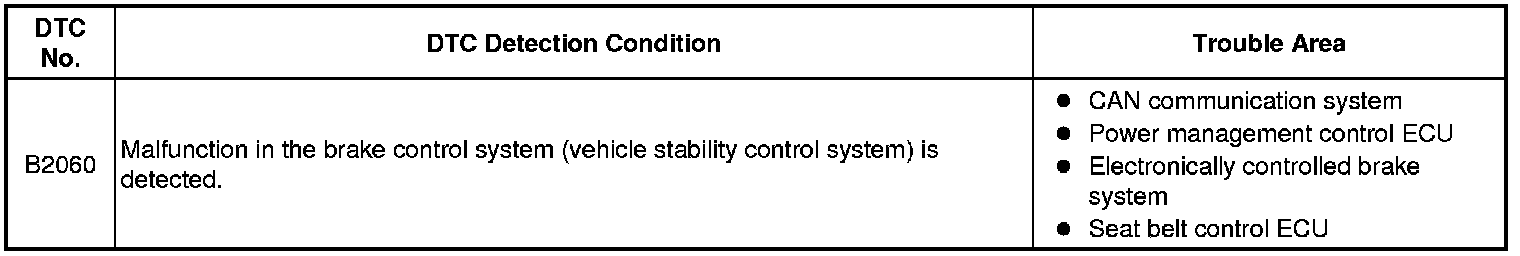

DESCRIPTION

This DTC is stored when a malfunction in the electronically controlled brake system is detected. This circuit consists of the brake booster with master cylinder (skid control ECU) and seat belt control ECU. Signals are sent from the brake booster with master cylinder (skid control ECU) using CAN communication.





INSPECTION PROCEDURE

HINT
This circuit uses CAN communication. Therefore, be sure to check that the CAN communication system is normal before performing inspection.

PROCEDURE

1. CHECK DTC OUTPUT (CAN COMMUNICATION SYSTEM)

(a) Clear the DTCs Diagnosis System.

(b) Recheck for DTCs.

OK:

CAN communication system DTC is not output.

NG -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
OK -- Continue to next step.

2. CHECK DTC OUTPUT (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

(a) Check DTCs for the electronically controlled brake system Reading and Clearing Diagnostic Trouble Codes.

OK:

Electronically controlled brake system DTC is not output.

NG -- GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM How To Proceed With Troubleshooting
OK -- Continue to next step.

3. CHECK DTC OUTPUT (PRE-COLLISION SYSTEM)

(a) Using the Techstream, enter the following menus: Body Electrical / Pre-Collision / Trouble Codes.

(b) Clear the DTCs Pre-Collision System.

(c) Drive the vehicle.

(d) Recheck for DTCs.

OK:

DTC B2060 is not output.

NG -- REPLACE SEAT BELT CONTROL ECU Removal

OK -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) How To Proceed With Troubleshooting
