SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1653/35: Seat Position Airbag Sensor Circuit Malfunction
B1653/35 - Seat Position Airbag Sensor Circuit Malfunction
DESCRIPTION
The seat position airbag sensor circuit consists of the airbag sensor assembly, front seat inner belt assembly LH and seat position airbag sensor.
DTC B1653/35 is stored when a malfunction is detected in the seat position airbag sensor circuit.
WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.
PROCEDURE
1. CHECK CONNECTORS
(a) Turn the power switch off.
(b) Disconnect the cable from the negative (-) auxiliary battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
(c) Check that the connectors are properly connected to the airbag sensor assembly, front seat inner belt assembly LH and seat position airbag sensor.
OK:
The connectors are properly connected.
HINT
If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.
(d) Disconnect the connectors from the airbag sensor assembly, front seat inner belt assembly LH and seat position airbag sensor.
(e) Check that the terminals of the connectors are not damaged.
OK:
The terminals are not deformed or damaged.
NG -- REPLACE WIRE HARNESS
OK -- Continue to next step.
2. CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (OPEN)
(a) Connect the connectors to the front seat inner belt assembly LH and floor wire.
(b) Using SST, connect terminals 14 (LSP+) and 13 (LSP-) of connector B.
NOTICE:
Do not forcibly insert SST into the terminals of the connector when connecting the wire.
SST : 09843-18040
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- CHECK FLOOR WIRE (OPEN)
OK -- Continue to next step.
3. CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (SHORT)
(a) Disconnect SST from connector B.

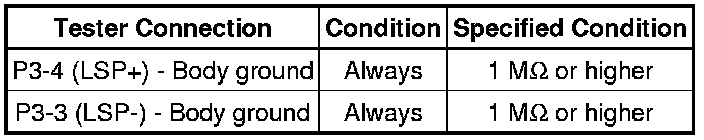

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- CHECK FLOOR WIRE (SHORT)
OK -- Continue to next step.
4. CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (SHORT TO B+)
(a) Connect the cable to the negative (-) auxiliary battery terminal.
(b) Turn the power switch on (IG).

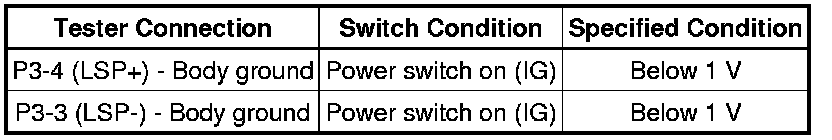

(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Text in Illustration
NG -- CHECK FLOOR WIRE (SHORT TO B+)
OK -- Continue to next step.
5. CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (SHORT TO GROUND)
(a) Turn the power switch off.
(b) Disconnect the cable from the negative (-) auxiliary battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

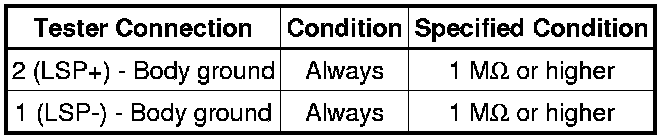

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- CHECK FLOOR WIRE (SHORT TO GROUND)
OK -- Continue to next step.
6. CHECK SEAT POSITION AIRBAG SENSOR
(a) Connect the connectors to the airbag sensor assembly and seat position airbag sensor.
(b) Connect the cable to the negative (-) auxiliary battery terminal.
(c) Turn the power switch on (IG), and wait for at least 60 seconds.
(d) Clear the DTCs stored in memory Reading and Clearing Diagnostic Trouble Codes.
(e) Turn the power switch off.
(f) Turn the power switch on (IG), and wait for at least 60 seconds.
(g) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC B1653/35 is not output.
Text in Illustration
HINT
Codes other than DTC B1653/35 may be output at this time, but they are not related to this check.
NG -- REPLACE SEAT POSITION AIRBAG SENSOR
OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
7. REPLACE SEAT POSITION AIRBAG SENSOR
(a) Turn the power switch off.
(b) Disconnect the cable from the negative (-) auxiliary battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
(c) Replace the seat position airbag sensor with a known good one Removal.
HINT
Perform the following inspection using known good parts from another vehicle if possible.
NEXT -- Continue to next step.
8. CHECK AIRBAG SENSOR ASSEMBLY
(a) Connect the cable to the negative (-) auxiliary battery terminal.
(b) Turn the power switch on (IG), and wait for at least 60 seconds.
(c) Clear the DTCs stored in memory Reading and Clearing Diagnostic Trouble Codes.
(d) Turn the power switch off.
(e) Turn the power switch on (IG), and wait for at least 60 seconds.
(f) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC B1653/35 is not output.
Text in Illustration
HINT
Codes other than DTC B1653/35 may be output at this time, but they are not related to this check.
NG -- REPLACE AIRBAG SENSOR ASSEMBLY Removal
OK -- END
9. CHECK FLOOR WIRE (OPEN)
(a) Disconnect the floor wire from the front seat inner belt assembly LH.
HINT
SST has already been inserted into connector B.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

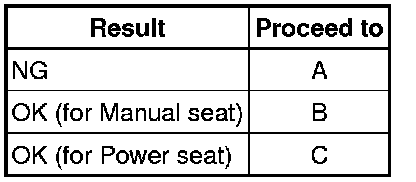

Result
Text in Illustration
C -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
B -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
A -- REPLACE FLOOR WIRE
10. CHECK FLOOR WIRE (SHORT)
(a) Disconnect the floor wire from the front seat inner belt assembly LH.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Result
Text in Illustration
C -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
B -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
A -- REPLACE FLOOR WIRE
11. CHECK FLOOR WIRE (SHORT TO B+)
(a) Turn the power switch off.
(b) Disconnect the cable from the negative (-) auxiliary battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
(c) Disconnect the floor wire from the front seat inner belt assembly LH.
(d) Connect the cable to the negative (-) auxiliary battery terminal.
(e) Turn the power switch on (IG).
(f) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Result
Text in Illustration
C -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
B -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
A -- REPLACE FLOOR WIRE
12. CHECK FLOOR WIRE (SHORT TO GROUND)
(a) Disconnect the floor wire from the front seat inner belt assembly LH.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Result
Text in Illustration
C -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
B -- REPLACE FRONT SEAT INNER BELT ASSEMBLY LH Removal
A -- REPLACE FLOOR WIRE
