SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1630/23: Rear Airbag Sensor RH Circuit Malfunction
B1630/23 - Rear Airbag Sensor RH Circuit Malfunction

DESCRIPTION

The side collision sensor RH circuit (to determine deployment of the front seat airbag assembly RH and curtain shield airbag assembly RH) is composed of the airbag sensor assembly, side airbag sensor assembly RH, No. 2 side airbag sensor assembly RH and door side airbag sensor RH.

The No. 2 side airbag sensor assembly RH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the airbag should be deployed.

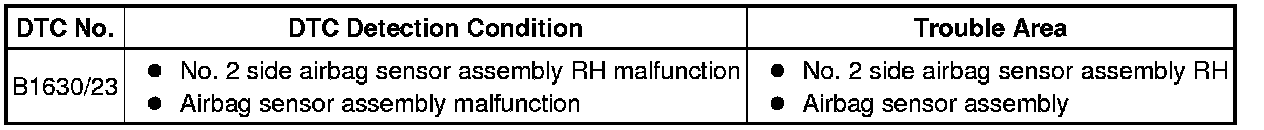

DTC B1630/23 is stored when a malfunction is detected in the No. 2 side airbag sensor assembly RH.





WIRING DIAGRAM

Refer to DTCs B1622/81, B1623/81, B1632/81, B1633/81, B1642/81, B1692/81 and B1693/81 B1622.

INSPECTION PROCEDURE

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

PROCEDURE

1. CHECK NO. 2 SIDE AIRBAG SENSOR ASSEMBLY RH

(a) Turn the power switch off.





(b) Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(c) Interchange the No. 2 side airbag sensor assembly RH with LH and connect the connectors to them.

(d) Connect the cable to the negative (-) auxiliary battery terminal.

(e) Turn the power switch on (IG), and wait for at least 60 seconds.

(f) Clear the DTCs stored in memory Reading and Clearing Diagnostic Trouble Codes.

(g) Turn the power switch off.

(h) Turn the power switch on (IG), and wait for at least 60 seconds.

(i) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

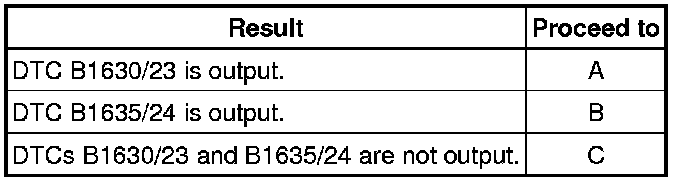

Result:





Text in Illustration





HINT
Codes other than DTCs B1630/23 and B1635/24 may be output at this time, but they are not related to this check.

C -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

B -- REPLACE NO. 2 SIDE AIRBAG SENSOR ASSEMBLY RH Removal

A -- REPLACE AIRBAG SENSOR ASSEMBLY Removal
