HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1497/97: BUS IC Communication Malfunction
B1497/97 - BUS IC Communication Malfunction

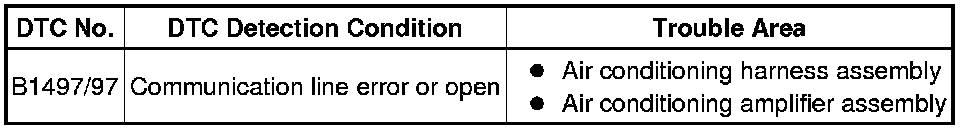

DESCRIPTION

The air conditioning harness assembly connects the air conditioning amplifier assembly and each servo. The air conditioning amplifier assembly supplies power and sends operation instructions to each servo through the air conditioning harness assembly. Each servo sends the damper position information to the air conditioning amplifier assembly.

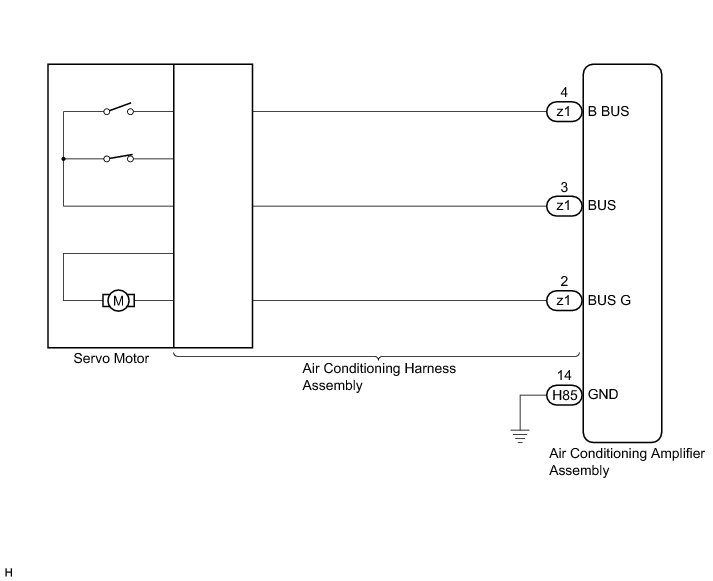

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Remove the air conditioning amplifier assembly with the connectors still connected.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY Removal
OK -- Continue to next step.

2. INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY

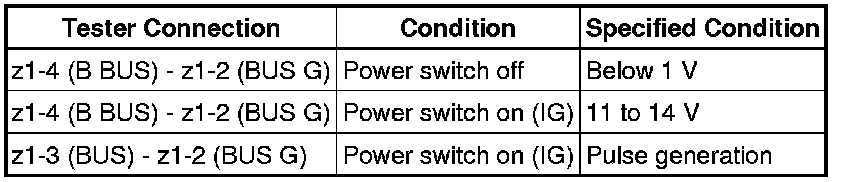

(a) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





Text in Illustration





NG -- REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY Removal

OK -- REPLACE AIR CONDITIONING HARNESS ASSEMBLY Disassembly
