Windshield Washer Motor: Testing and Inspection

WIPER AND WASHER: WASHER MOTOR: INSPECTION

1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY





(a) Apply battery voltage to the windshield washer motor connector and check the operation of the windshield washer motor assembly.

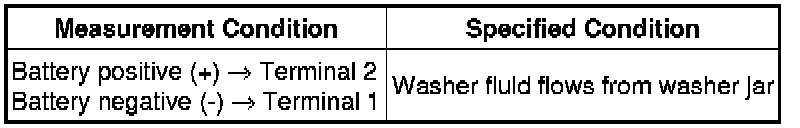

OK:





(a) If the result is not as specified, replace the motor and pump assembly.
