Power Source Circuit

WIPER AND WASHER: WIPER AND WASHER SYSTEM: Power Source Circuit
- Power Source Circuit

DESCRIPTION

This circuit provides power to the combination switch.

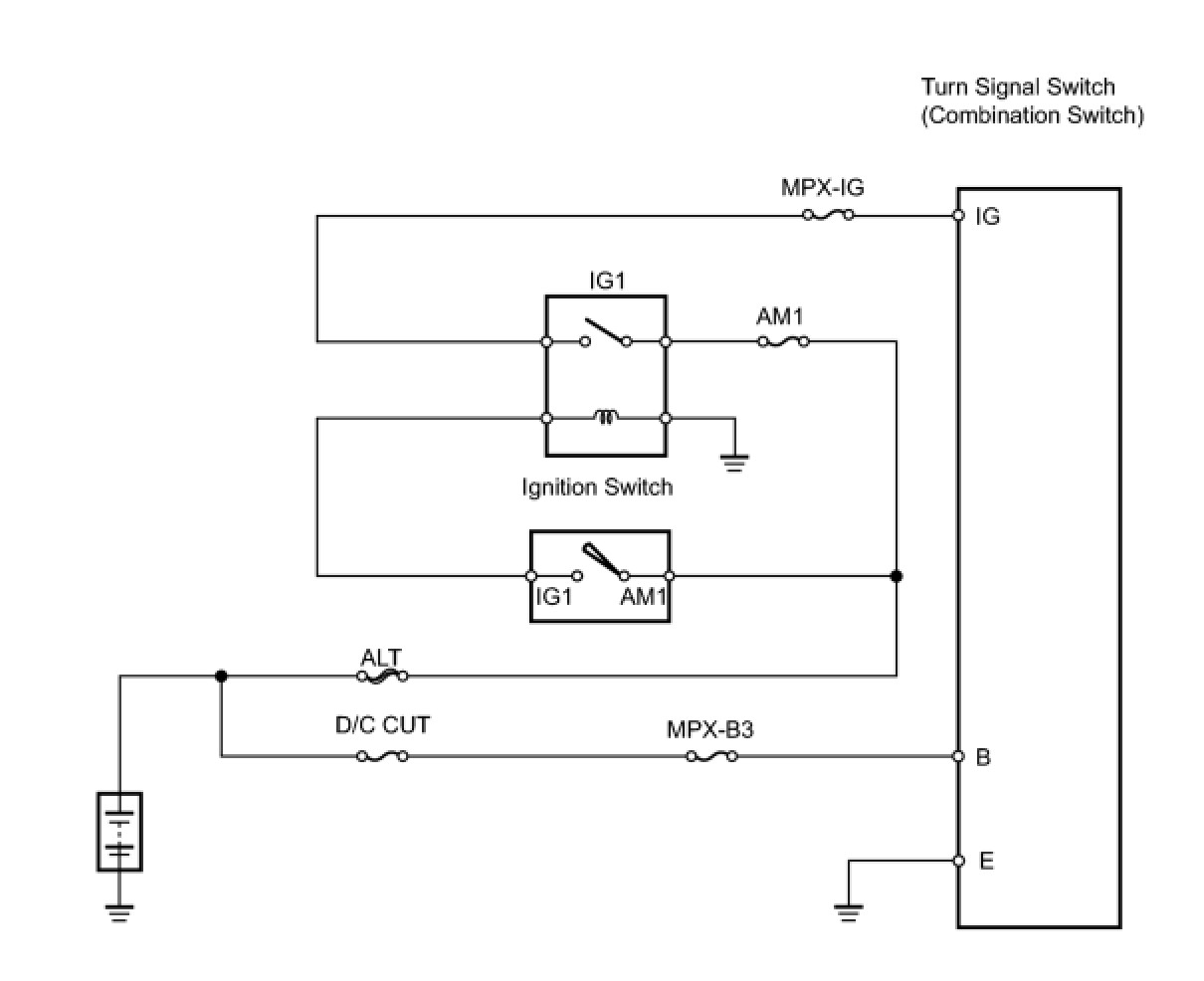

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (SWITCH - BATTERY AND BODY GROUND)

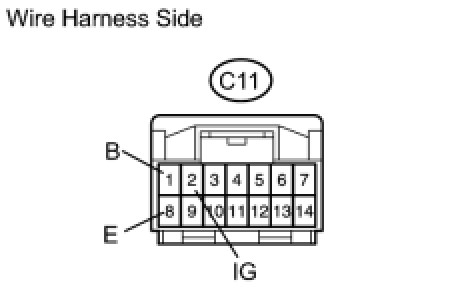

(a) Disconnect the C11 switch connector.

(b) Measure the voltage of the wire harness side connector.

Standard voltage:





(c) Measure the resistance of the wire harness side connector.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
