Installation

WIPER AND WASHER: HEADLIGHT CLEANER ACTUATOR: INSTALLATION

1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH





(a) Install the actuator with the bolt and attach the 2 clips.

(b) Connect the cleaner hose.

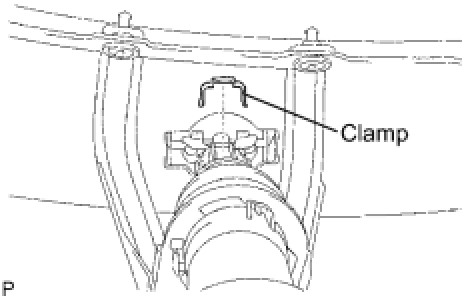

2. INSTALL HEADLIGHT CLEANER WASHER NOZZLE





(a) Install the washer nozzle.

(b) Attach the clamp.

3. INSTALL FRONT BUMPER COVER Installation

4. INSTALL FRONT FENDER LINER RH Installation

5. INSTALL FRONT FENDER LINER LH Installation

6. INSTALL RADIATOR GRILLE Installation
