Installation

WINDSHIELD / WINDOWGLASS: QUARTER WINDOW GLASS: INSTALLATION

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the RH side.
* A bolt without a torque specification is shown in the standard bolt chart.

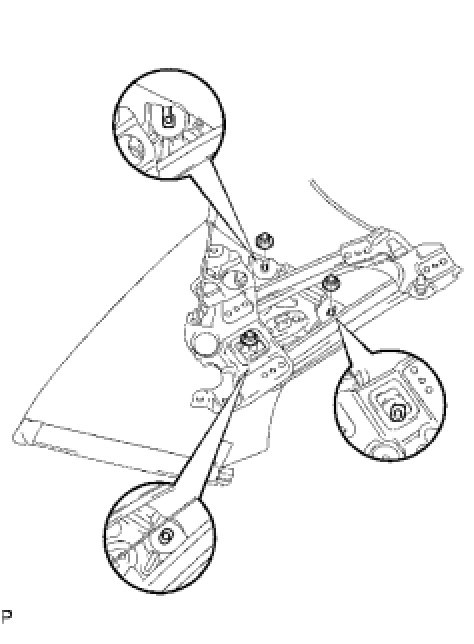

1. INSTALL QUARTER WINDOW ASSEMBLY RH

(a) Install the quarter window.

(1) When using a new regulator:





(1) Install the 3 nuts. Tighten the nuts as much as possible by hand.

(2) When reusing the regulator:

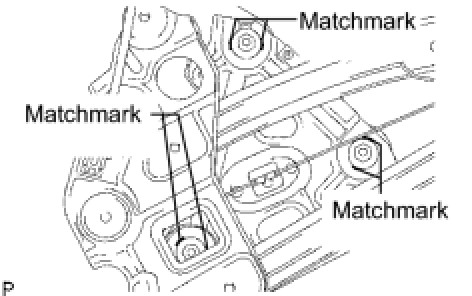

(2) Align the matchmarks and tighten the 3 nuts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

2. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(a) Install the power window regulator and regulator base plate with the 2 screws.

3. INSTALL QUARTER WINDOW STOP

(a) Install the 2 quarter window stops with the 2 bolts. Tighten the bolts as much as possible by hand.

4. INSTALL QUARTER WINDOW ASSEMBLY RH

(a) Install the quarter window to the vehicle body.

(1) Loosely install the regulator's 2 bolts and nut.

(2) Tighten the motor's 3 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

5. ADJUST QUARTER WINDOW ASSEMBLY RH Adjustments

6. INSTALL REAR SPEAKER ASSEMBLY Installation

7. INSTALL QUARTER TRIM PANEL ASSEMBLY FRONT RH

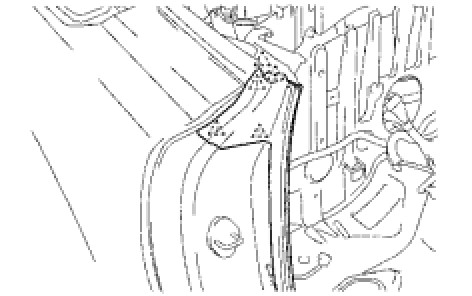

(a) Install the front part of the luggage compartment door weatherstrip with 3 clips.

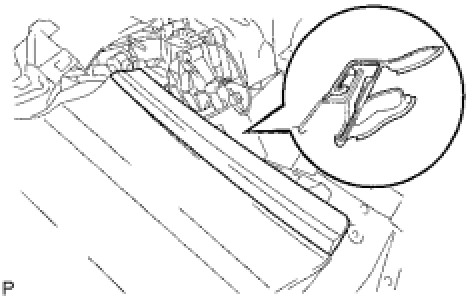

8. INSTALL QUARTER BELT MOULDING RH





(a) Install the quarter belt moulding RH.

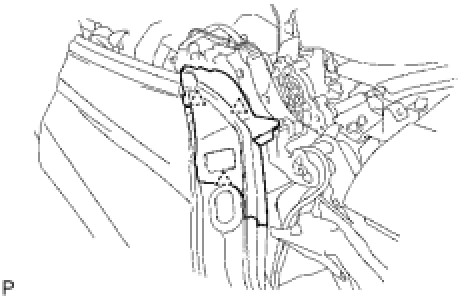

9. INSTALL CENTER PILLAR UPPER END WEATHERSTRIP RH





(a) Install the center pillar upper end weatherstrip RH with the 4 clips.

10. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT RH





(a) Install the quarter trim panel assembly RH with the 4 clips.

11. INSTALL DOOR SCUFF PLATE ASSEMBLY RH Reassembly

12. INSTALL REAR SEATBACK ASSEMBLY Installation

13. INSTALL REAR SEAT HEADREST ASSEMBLY Installation

14. INSTALL REAR SEAT HEADREST PLATE Installation

15. INSTALL WIND DEFLECTOR BOARD ASSEMBLY Installation

16. INSTALL REAR SEAT HEADREST PLATE COVER Installation

17. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
